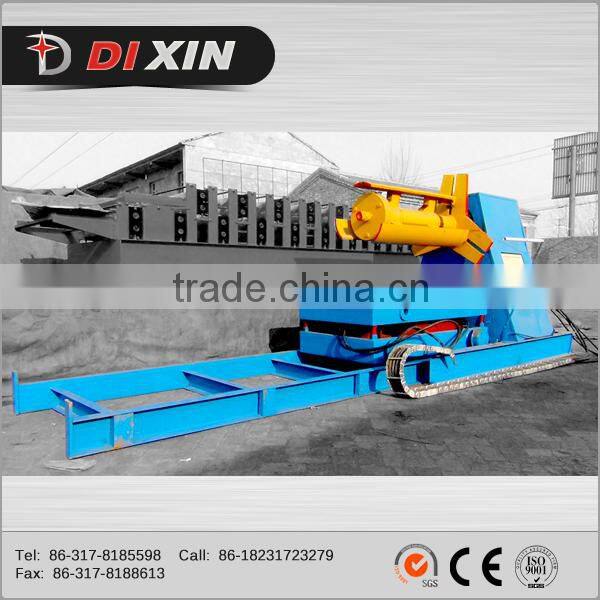

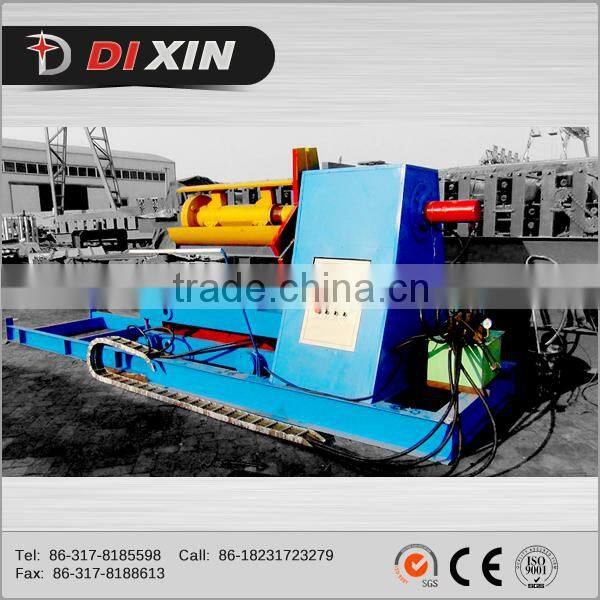

DIXIN-hydraulic uncoiler/decoiler with coil car for 10 tons coil
Hydraulic uncoiler is the specific machine for uncoil. There are three or four rake fanning strip, connected by
dovetail groove, installed on the mandrel.
In the end of the the fanning strip installed a radial slide incase it moves to the shaft. But it can open and shrink
along the radial direction. The tail of the drum shaft connects to the rotatable cylinder. The cylinder piston rod
drives the forward tetragonal shaft move along the shaft by the draw bar in the middle on it. The fanning strip
would be lead to open or shrink and add the diameter of the coiling block.
Main technical specifications of hydraulic decoiler:
1. Install size: 2700mm*1750mm*1700mm
2. The coil width: ≤1250 mm
3. Coil inside diameter: 480-510 mm
4. Productivity: 0-35 m/min
5. Main motor power: 3 KW
6. Hydraulic unit power: 3 KW
7. Electric control system: PLC vector inverter
8. Tolerate weight: as your choice
MAIN CONCERNS
1 Equipment maintenance. Easily.
| 1 | Decoiler can be installed and work at a workshop for a long time use and low maintenance cost against rust from rain or water.Also keep the air flow to make it dry |
| 2 | Lubricant should be feeded regularly to the machine gear,chain and moving parts to reduce friction. |
| 3 | Check the power lines connected right before starting roll forming machine by clicking the button |
| 4 | Any inquiry about panel roll forming machine,just call us or e-mail us.A instant response and better advice will be available in 12 hours.If necessary,sevearl related technicans of forming machine will offer on-site service. TEL:0086-0317-8185598 |
2 Packing,shipping and installing
| packing | waterproof plastic package |
| shipping | ship by tianjin port in a container |
| installing | easy and safe.if necessary we can offer on-site technican |
3 Sale ends ,not service (service system)
| after-sale service | one year warrantly and lifelong technical suport will be kind and effective provided. |
| on-site service | we can send our technicians to you to give you onsite training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD 50. |
4 Why us? We offer both-roof panel and forming machine
| ADVANTAGE of company | direct factory in China,hebei,botou better machine warm-hearted service quatity gurantee |
| PROFILE of company | Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping. |
| CONTACT | ADD: Fuzhuang Development Zone,Botou City,Hebei Province,Chima. TEL:0086-0317-8185598 FAX:0086-0317-8183398 |
Manual take-off and landing decoiler is also available
If you are interested in it, please contact us free.
