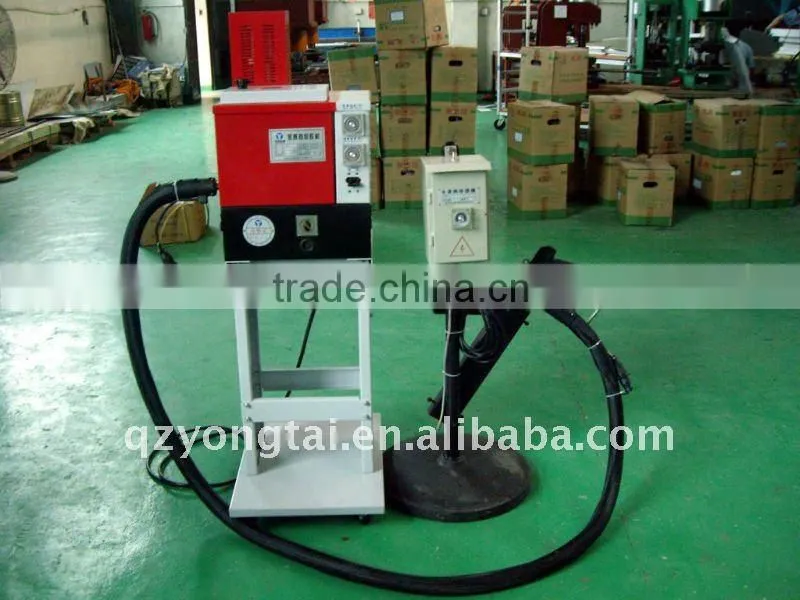

hot melt adhesive manual packing machine, furniture edging machine, hot melt glue machine
- 100 Set / Sets per Month
- XIAMEN PORT CHINA
Product Details
| Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Cartons |
| Packaging Material: | Wood | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
| Voltage: | 220V | Power: | 2000W | Place of Origin: | Fujian, China |
| Brand Name: | YONGTAI MACHINERY | Model Number: | YT-MD501 | Weight: | 50KGS |
| Certification: | CE | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
1 pcs hand manual glue gun1 pcs hose of two meters
1 set 5kgs glue machine
l FEATURES:
1.The melting tank increases the area for spreading heat and improve the melting rate.
2.Applicator temperature is exactly controlled by electronic P.I.D numeric controller to avoid carbonization inside the tank.
3.can choose the gear pump or piston pump to increase the use of the machine
4. Modularizing design helps to change various size gear pump(piston pump) or handle the return valve easily.
5. Filters are installed inside manifold and dispensing nozzle, reducing maintenance and glue path block.
6. Apply to automatic packaging, life paper.and shoes-making.
7.Application for strip,spiral spray and slop gun.
l SPECIFICATION:
ITEM | UNIT | YT-MD502 | YT-MD501 | YT-QB502 | YT-QB501 |
Tank Capacity | Liter | 5.0 | 5.0 | 5. 0 | 5.0 |
Max. malting rate | KGHOUR | 7.0 | 7.0 | 7.0 | 7.0 |
Max. Operation temp. | °C | 200 | 200 | 200 | 200 |
Melt Power | Watt | 2200 | 2200 | 2200 | 2200 |
Motor power | Watt | 90 | 90 |
|
|
Air pressure | KGCM² | 4-6 | 4-6 | 4-6 | 4-6 |
Demension(L*W*H) | MM | 420*380*640 | 420*380*640 | 420*380*640 | 420*380*640 |
Weigh | KG | 35 | 35 | 35 | 35 |
Max. Viscosity | CPS | 30,000 | 30,000 | 25,000 | 25,000 |
Power Requirement | Single Phase (1Φ), 220 V | ||||
Hose Output | Line | 2 | 1 | 2 | 1 |
Pump Type |
| Gear pump | Gear pump | Piston pump | Piston pump |
