Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | FUDA |
Model Number: | DNK-25S | Rated Capacity: | 25KVA | Rated Duty Cycle: | 20% |
Max. Welding Thickness: | 8.0mm +8.0mm , metal wire | Dimensions: | 65*35*50cm | Weight: | 60kg |
Usage: | hardwares , furniture , metal sheet welding | Voltage: | 380V , 50Hz , 2 phase | Power(W): | 25KW |
Certification: | CCC , CQC | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
gun type of spot welding machines

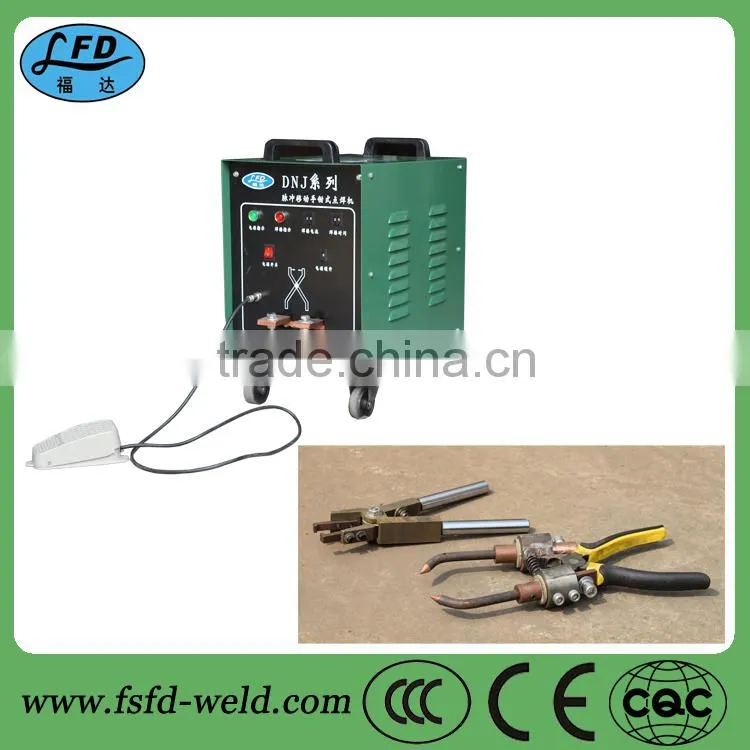

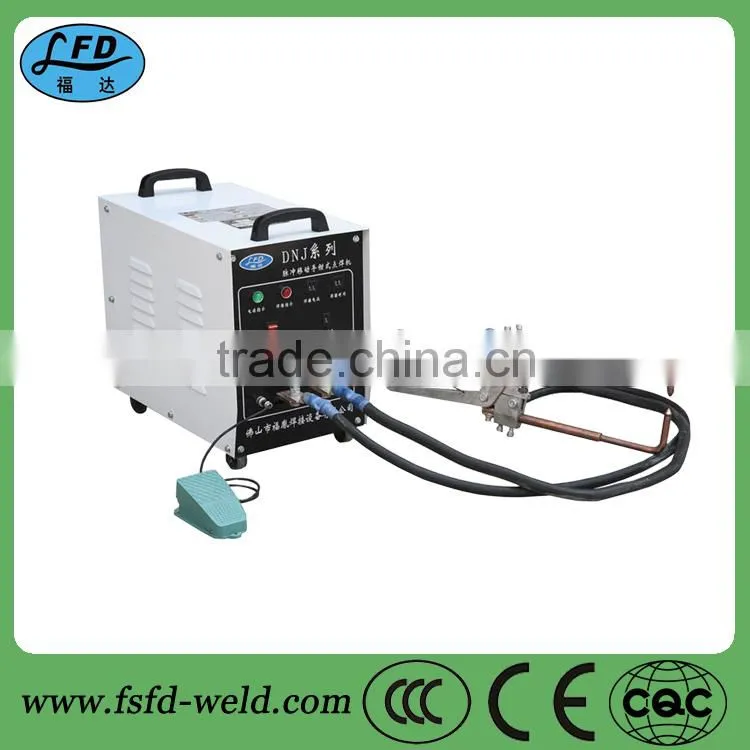

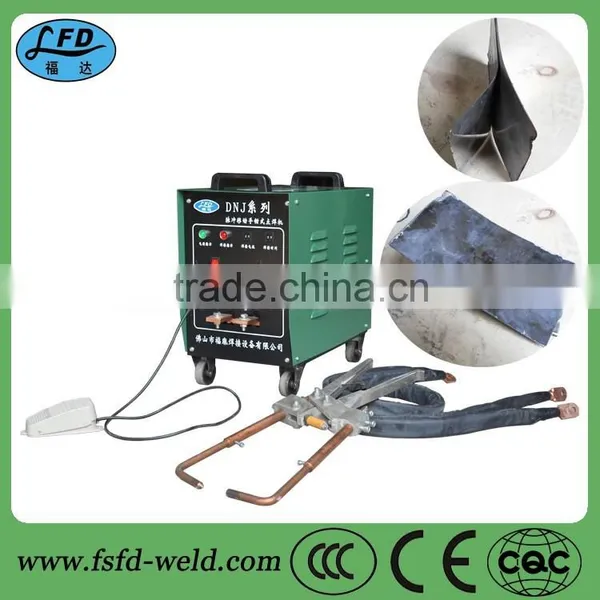

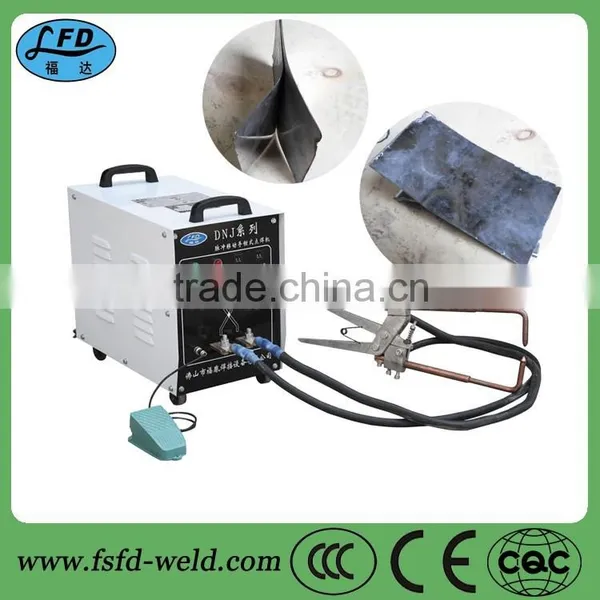

1, Portable spot welding machine photos
2,
Model | Rated Capacity | Rated Voltage | Rated Primary Current | Secondary Voltage | Secondary Cable Length | Welding Thickness | |||
Plate | Wire | ||||||||
DNK-20S | 20KVA | 380V |
380V
| 10.5V | 2.0M | 0.5mm+0.5mm 1.5mm+1.5mm | 0.8mm+0.8mm 2.0mm+2.0mm | ||
DNK-25S | 25KVA | 380V | 66A | 11.5V | 2.0M | 0.8mm+0.8mm 2.0mm+2.0mm | 1.2mm+1.2mm 2.5mm+2.5mm | ||
DNK-35S | 35KVA | 380V | 92A | 13.1V | 2.0M | 1.0mm+1.0mm 2.5mm+2.5mm | 1.5mm+1.5mm 3.0mm+3.0mm | ||
Model | Rated Voltage | Max no-load Voltage | Rated Stores Energy | Suitable Stud Diameter |
| ||||
Stainless steel, Carbon steel | Aluminum alloy, Copper |
| |||||||

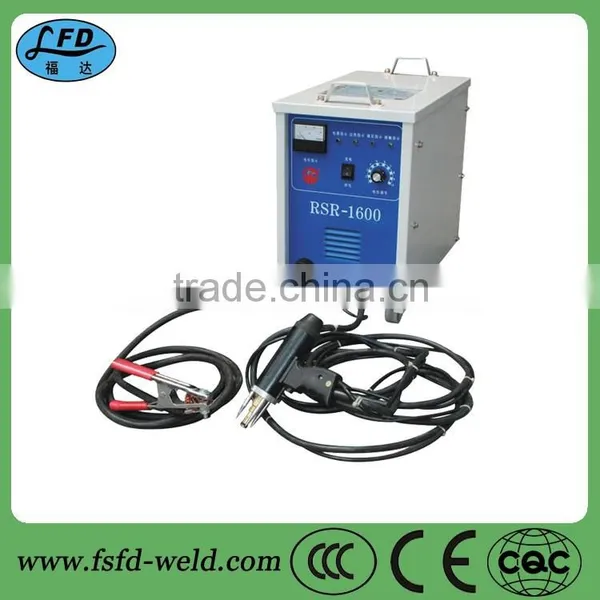

RSR-1600 | 220V | 50-220V | 1600J | 3.0mm-6.0mm | 3.0mm-5.0mm |
| |||
RSR-2500 | 220V | 50-220V | 2500J | 3.0mm-8.0mm | 3.0mm-6.0mm |
|
3, Performance Characteristics
1, It has the advantage of small volume and light weight, welding machine and welding torch can be moved, get rid of the structure of old type welder to fix electrode arm, adopt one and half meters long cable and equipped with a handheld spot welding gun, also can reach into the internal of weldment and special parts to carry out welding, if welding machine is hang to compose suspensions spot welder.
2, Main transformers are all imported cold rolled silicon steel sheet, therefore, power consumption of main transformer is small, no load current from all kinds of models is small.
3, Main circuit adopts thyristor contactless switch, turn off time of circuit is fast, accurate and reliable,welding time can be adjusted accurately through timing control, welding's repeatability is good, it is convenienct to repair and carry out the welding of high quality.
4, Generally speak, welding range is low carbon steel of 0.33mm, steel plates and weldable carbon steel of diameter 0.5mm and diameter 5mm, carbon steel, stainless steel, iron sheet and other black, no-ferrous, rare,precious metals and alloys etc.
4, Application
It is widely used in steel furniture, stainless steel products, manufacturing anti-theft door, kitchen equipment and wire mesh repair welding etc.
5, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
6,
1, We will be answer within 24 hours , welcome to contact with us if you have any problems. we warmly welcome to visit our company and looking forward to cooperating with you.
2, We can offer OEM or ODM service , according to customers requirements.
3, Unique and exclusive solution can be provided to our customers by our professional engineers.
7,
2, Payment type: T/T(Confirm contract pay 30% deposit, pay the balance before delivery).
3, Delivery time is 5-10 working days after receiving deposit.
4, Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.
8, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
