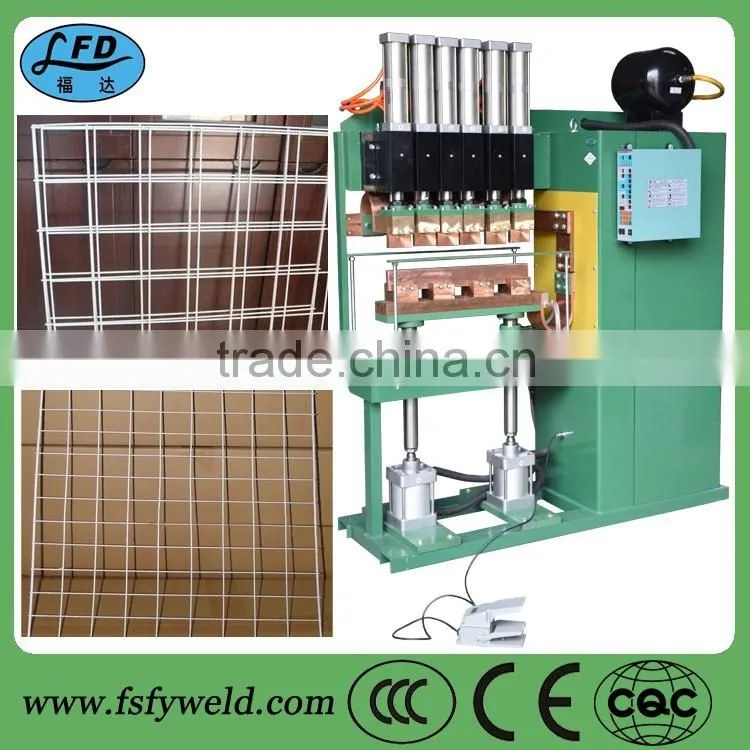

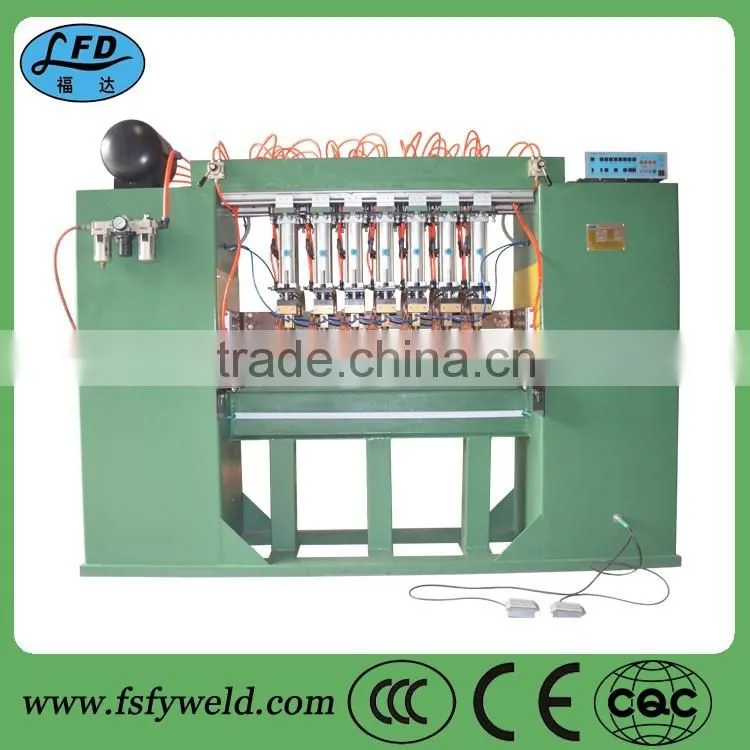

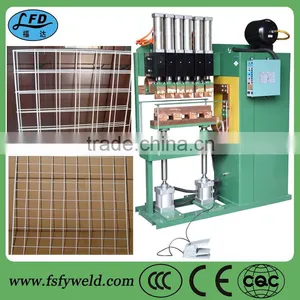

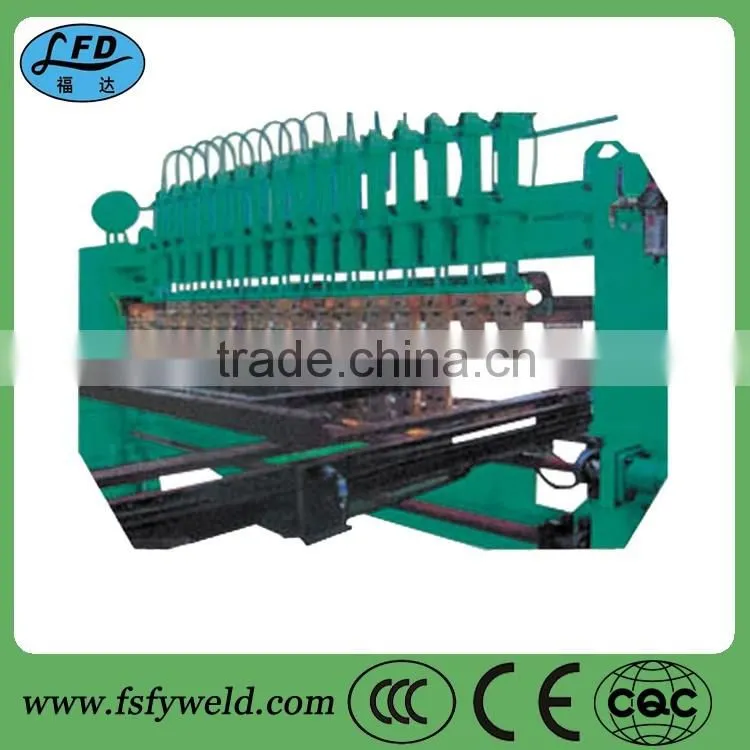

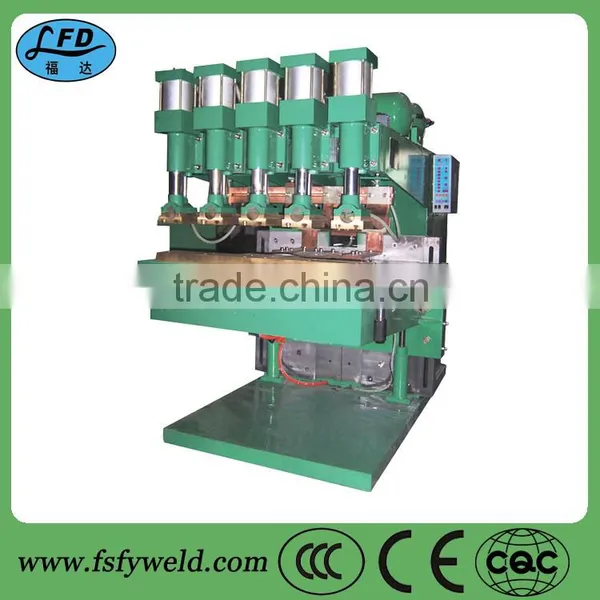

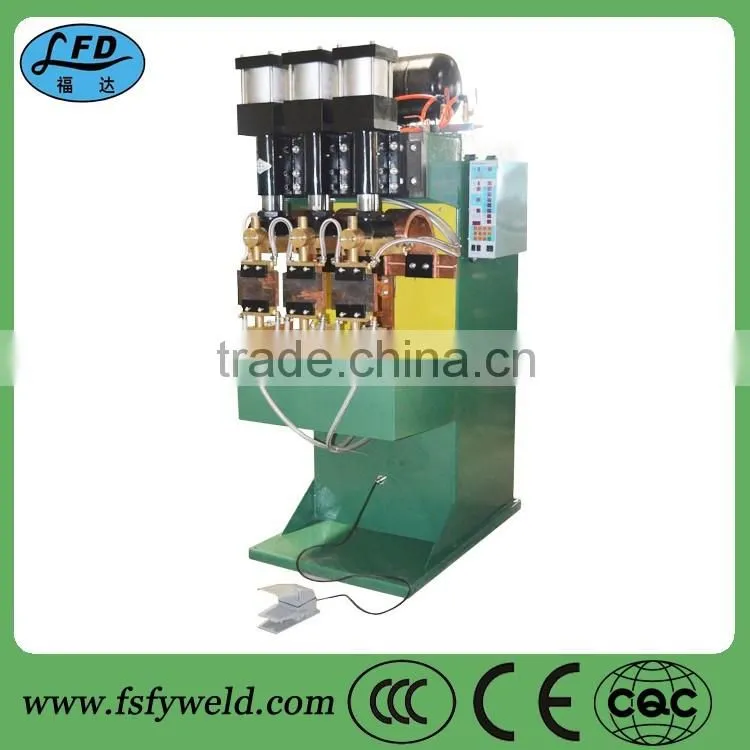

Home > Products > Spot projection welding machine > Engineers available to service machinery overseas After-sales Service Provided automatic wire mesh welding machine

Engineers available to service machinery overseas After-sales Service Provided automatic wire mesh welding machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Guangzhou Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Guangdong, China	Brand Name:	FUDA
Model Number:	D(T)N-125QP3T	Rated Capacity:	125KVA	Rated Duty Cycle:	20%
Max. Welding Thickness:	4.0mm+4.0mm	Weight:	1000kg	Usage:	hardwares, furniture, wire mesh weld etc
Voltage:	380V, 50Hz, 2 phase	Power(W):	125KW	Certification:	CCC, CQC
Warranty:	1 year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Engineers available to service machinery overseas After-sales Service Provided automatic wire mesh welding machine

Product Description

Model	Rated Capacity	Rated Voltage	Max Electrode Pressure	Electrode Spacing	Welding Low Carbon
D(T)N-25Q	25KVA	380V/50Hz	400KGF	40/80MM	2.5mm+2.5mm
D(T)N-40Q	40KVA	380V/50Hz	620KGF	40/80MM	3.8mm+3.8mm
D(T)N-50Q	50KVA	380V/50Hz	620KGF	50/100MM	4.0mm+4.0mm
D(T)N-63Q	63KVA	380V/50Hz	620KGF	50/100MM	4.3mm+4.3mm
D(T)N-80Q	80KVA	380V/50Hz	980KGF	50/100MM	5.0mm+5.0mm
D(T)N-100Q	100KVA	380V/50Hz	980KGF	50/100MM	5.5mm+5.5mm
D(T)N-150Q	150KVA	380V/50Hz	1500KGF	50/100MM	6.0mm+6.0mm
D(T)N-200Q	200KVA	380V/50Hz	1500KGF	50/100MM	6.5mm+6.5mm
D(T)N-63QP	63KVA	380V/50Hz	620KGF	50/100MM	4.3mm+4.3mm
D(T)N-80QP	80KVA	380V/50Hz	980KGF	50/100MM	5.0mm+5.0mm
D(T)N-100QP	100KVA	380V/50Hz	980KGF	50/100MM	5.5mm+5.5mm
D(T)N-150QP	150KVA	380V/50Hz	1500KGF	50/100MM	6.0mm+6.0mm

Performance Characteristics

1), Direct type pressurization mechanism, good servo performance, welding speed is fast: guidance adopt the special material of small friction force, electromagnetic valve is connected with the cylinder directly to accelerate reaction speed, improve spot welding speed and reduce air flow loss.

2), Long service life and low noise: with adjustment function of pressurized speed and adjust randomly up and down speed of pressurized head, ease the shock when the soldered object is pressed, it is with the adjustment function of rising buffer and can adjust randomly rising buffer speed, reduce the mechanical impact and improve the service life of cylinder body, and reduce the noise.

3), Security, ease to use: the filter cup of high performance gas path system is equipped with protection cover, which can prevent the fragments from splashing when the cup is broken, or protection from external shock, the cup and cover can be assembled and disassembied, easy to examine and repair.

4), Adopt water-saving type forced cooling mode: adopt circulating cooling water and avoid waste of water, greatly reduce the amount of cooling water.

5), High solid organism structure: the characteristics of impact resistance and vibratory rigidity can prevent electrode head from slide when it is pressurized to achieve stable welding.

6), Upper insulation is simple and practical: secondary conductor adopts the ways of upper insulation, it can avoid short circuit accident of insulating parts when the conductive scrap iron is adhered or the base is assembled to weld.

7), The main circult adopts high-power SCR non-contact switch: main circuit adopts thyristor component of water-cooling and high power, power supply output is strong, stable and good reliability.

8), High electrical conductivity, low power loss: during secondary current circuit, upper secondary output of main transformer use multilayer high toughness, high conductivity red copper belt, and show V type connection, greatly improved service life, lower secondary output adopts integral type direct connecting mechanism, power loss is reduced to the minimum.

Application

It is suitable for welding low carbon steel, stainless steel, tube materials, etc.

R&D Team and Quality Control

Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.

Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.

Our Services

Our Services

1), We will be answer within 24 hours, welcome to contact with us if you have any problems. we warmly welcome to visit our company and looking forward to cooperating with you.

2), We can offer OEM or ODM service, according to customers requirements.

3), Unique and exclusive solution can be provided to our customers by our professional engineers.

Packaging & Shipping

Packaging & Shipping

1), Standard export packing, or they are packing to meet your requirement.

2), Payment type: T/T(Confirm contract pay 30% deposit, pay the balance before delivery).

3), Delivery time is 10-15 working days after receiving deposit.
4), Warranty: One year warranty, the Seller shall supply the free replacement spare parts (but NOT including the mould, wearing parts and the items of wrong using), and the delivery cost will bear on the buyer’s account.

Sales Markets

Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.

For more information, please feel free to contact us, your satisfaction is our top priority!

Contact: Cunlu Liu

Mob: +86 1392 770 7025

Tel: +86 757 633 69302

Fax: +86 757 885 72629

Skype: fsfuyin.welding
