The World's Smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological Safety Cabinet

The World's Smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological Safety Cabinet photo-1
The World's Smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological Safety Cabinet photo-2
The World's Smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological Safety Cabinet photo-3
The World's Smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological Safety Cabinet photo-4
The World's Smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological Safety Cabinet photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Size:
700*650*1230 mm
Place of Origin:
Shandong, China
Brand Name:
BIOBASE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Size 700*650*1230 mm
Place of Origin Shandong, China
Brand Name BIOBASE
Model Number 11231BBC86

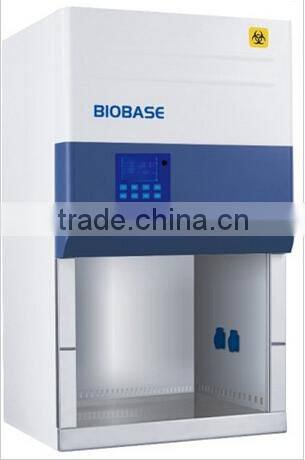

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2  Biological safety cabinet





Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaust



A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.



The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet



LCD display

Large Digital LCD displsy is easy to monitor all the safety parameters at a glance and ergonomically sized controlpanel improves user interface.

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet

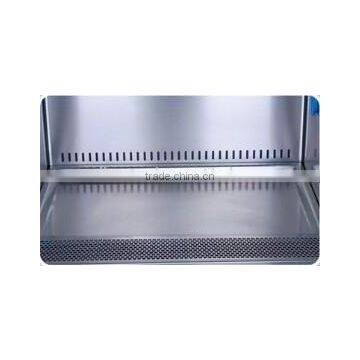

Work Zone

Work zone is made of 304 stainless steel, is surround by negative pressure.

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet

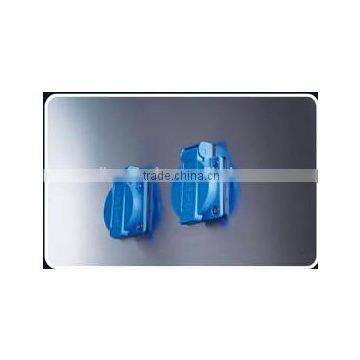

Waterproof Socket

2 waterproof sockets are located in the side panel for optimum convenience of using small devices inside the cabinet.

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet

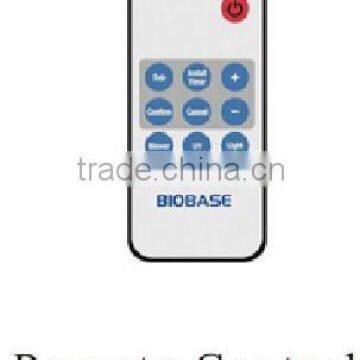

Remote Control

All functions can be realized with it, making the operation much easier and convenient.

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet



UV Lamp

Emission of 253.7 nanometers for most efficient decontamination.

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet



Advantage:

1. Small dimension,save space.

2. Centrifugal fan, speed, adjustable; H14 HEPA filter.

3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

6. Motorized front window: The front window is motorized for convenient, one-hand operation.

7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.



Model

11231BBC86

ExternalSize(W*D*H)

700*650*1230 mm

Internal Size(W*D*H)

600*500*540 mm

Tested Opening

Safety Height

≤ 200 mm

Max Opening

400 mm

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3 um. Filter life indicator.

Front Window

Motorized. Two-layer laminated toughened glass  ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

18W*1

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

Fluorescent Lamp

14W*1

Illumination

≥1000Lux

Consumption

500W

Socket

Two, total load of two sockets: 500W

Display

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Visual and Audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powdercoating.

Work Surface Height

750mm

Caster (optional)

Universal caster with brake and leveling feet.

Power Supply

110/220V±10%, 60/50Hz

Standard Accessory

Fluorescent lamp, UV lamp*2, Remote control, Waterproof sockets*2

Optional Accessory

Base stand

Gross Weight

110kg

PackageSize(W*D*H)

950*850*1430mm



The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinetThe world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinetThe world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinetThe world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinetThe world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet

The world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinetThe world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinetThe world's smallest Biosafety Cabinet 11231BBC86, Class II A2 Biological safety cabinet
