Time delay function glass push lock for office

Specifications

Glass push lock description:
1.Door signal output
2.Aluminium Alloy lock body
3.Time delay function of 0/2.5/5S



Glass push lock description:

Glass push lock is special designed for frameless glass door, used by matching a

bracket. Glass push lock has the function of time delay, and when it connects to

access control system, can check the status of door and lock.

Glass push lock technical parameters:

Fail safe	Locked when energized
Faceplate size	170Lx48WX40H(mm)
Voltage	12VDC
Start current	0.9A
Standby current	0.25A
Operating temp	-20~+55°C(14~131F)
Operating humidity	0~90%(non-condensing)
Suitable for	Wooden door,Glass door,Metal door
Solid bolt polishing housing	900kg Holding force







Glass push lock advantages:

1.MOV provides reverse current protection

2.With low power, environmental protection

3.With special designed solenoid for strength and long life

4.Type of door locks with low temperature, safe & durable

5.5 wires, with green light indicator to indicate the door status.

6.With superior strength aluminum alloy, solid stainless steel bolt

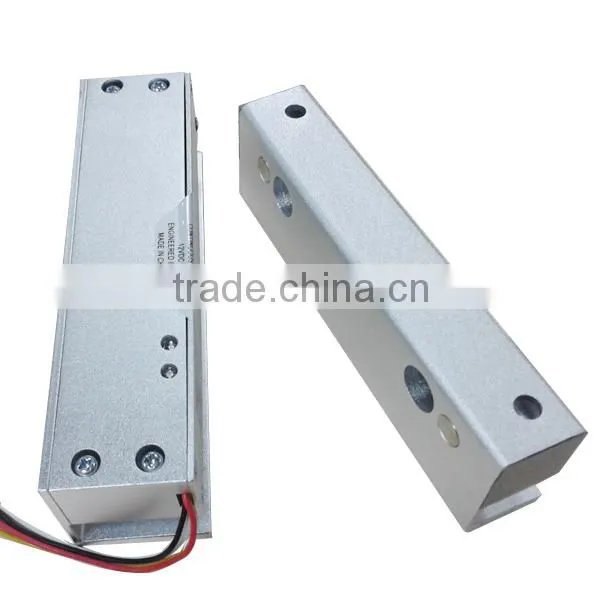

Glass push lock details:

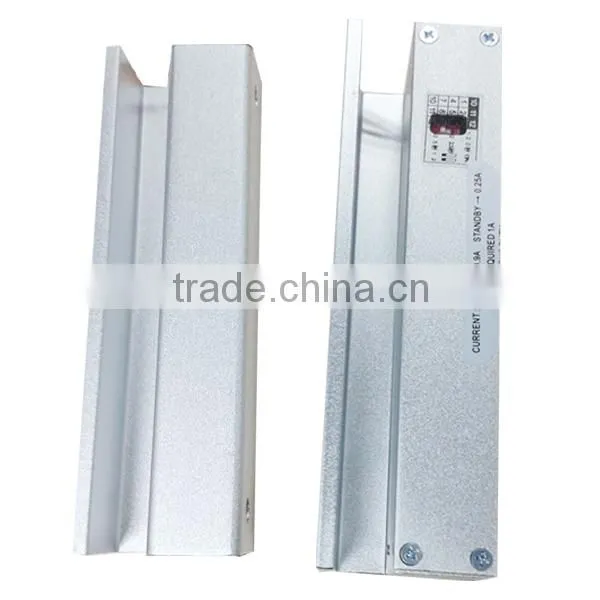

Glass push lock bracket:

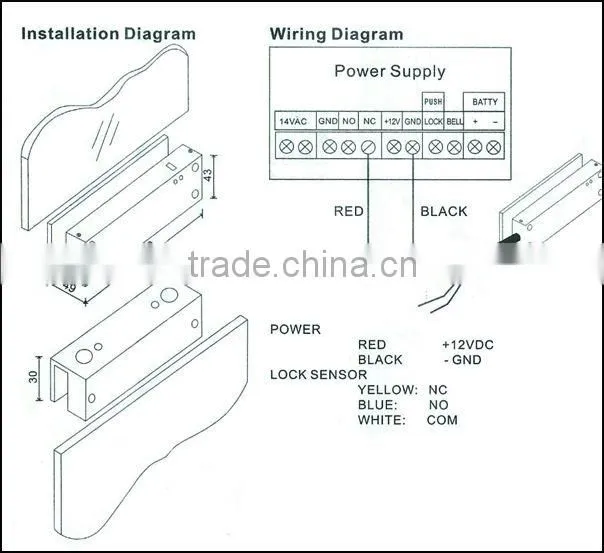

Glass push lock installation and wiring:

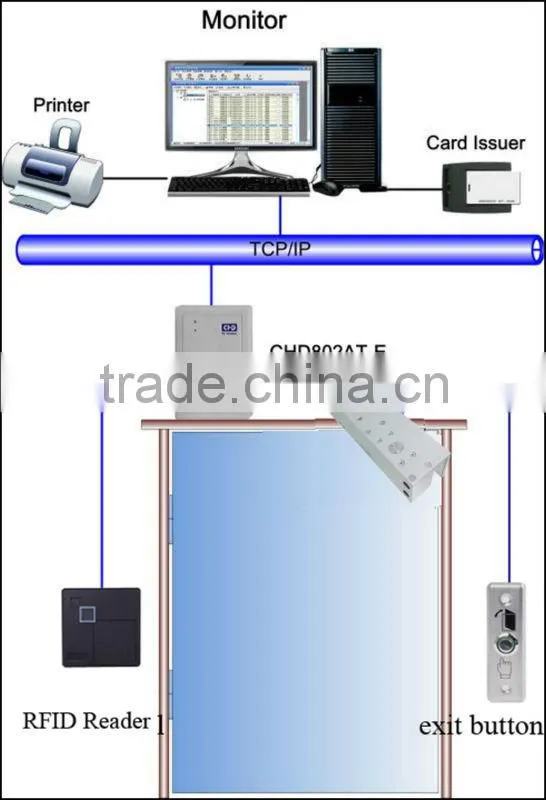

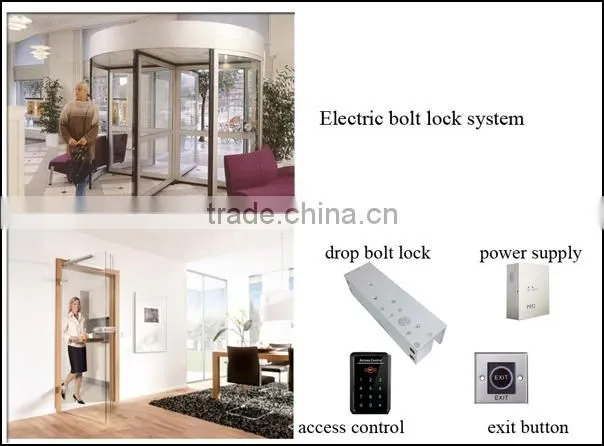

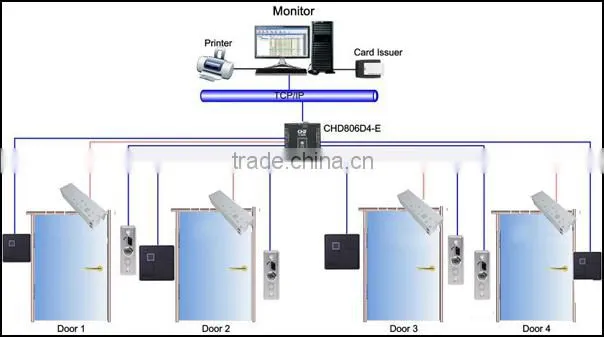

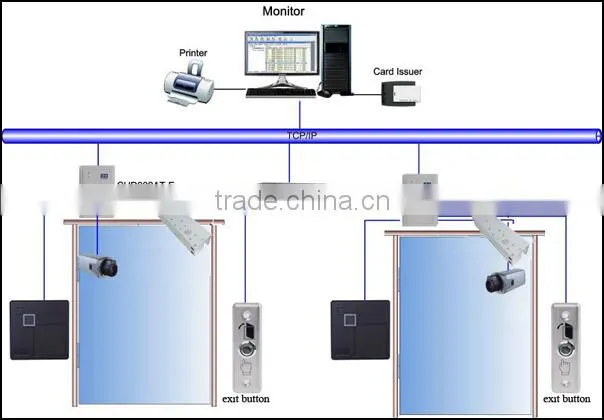

Glass push lock solutions:

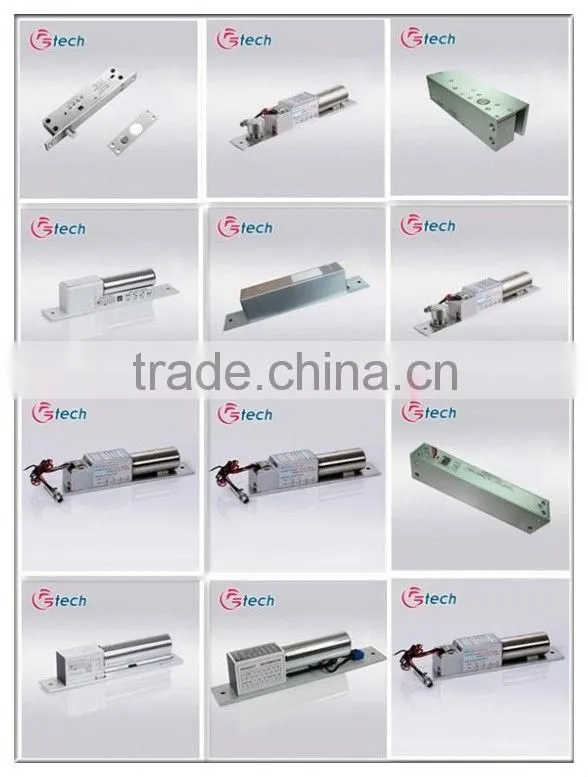

Glass push lock series:

Customer and us:

Payment:

If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For

big amount we accept bank transfer.

Shipment:

Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days

depending on the countries deliver to. We can also arrange other shipment way per your

requirement and instruction, such as sea shipment, air shipment, etc.

Warranty:

Warranty for one year, maintenance forever, change within 3 months because of product quality.
