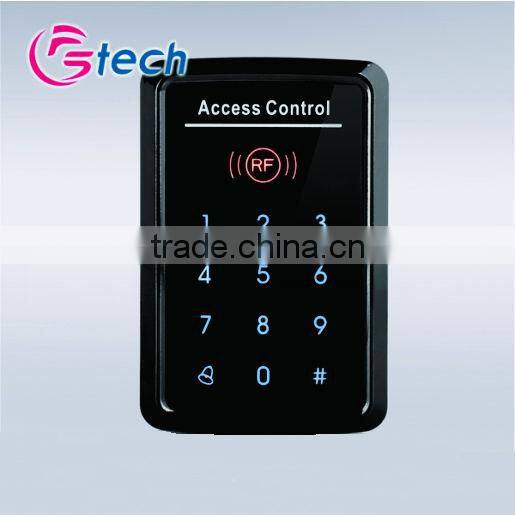

Rfid Access Control Keypad Standalone Access Control

Access control keypad description:

Access control is a part of stand alone access control system. This access control keypad use contactless proximity card and password to achieve the access control function.

1.Up to 1000 user’s card and password

2.Has tamper function and safety operation mode

3.Card, password, card+password three ways to open the door

4.A group of exit button interface; A group of the doorbell interface

5.Normally open, normally closed and automatic three backlight model

6.A group of relay dry contact signal output and a set of PUSH (low level) signal output

7.A group of WG26 interface, can be as WG signal output or input ( just for some models)

Access control keypad advantages & features:

1.Real time monitoring of door access

2.Simple programming, easy operation

3.Non-volatile Memory when Power Failure

4.Accurate recording of arrivals and departures

5.Touch screen, lasting and durable. Large user capacity

6.Beautiful and smart signal door access control keypad.

7.Convenient and secure method of controlling door entry

8.When electrified, keyboard number will become white and light.

9.Fast identification speed: Able to open the door in less than 0.1S.

10.Energy saving: Low power consumption, standby current is 40mA

11.UV technology housing, not easy to scratch, won’t fade after long time use.

12.Peel type wiring terminal design, easy connection, prevent thrum short circuit.

Access control keypad technical parameters:

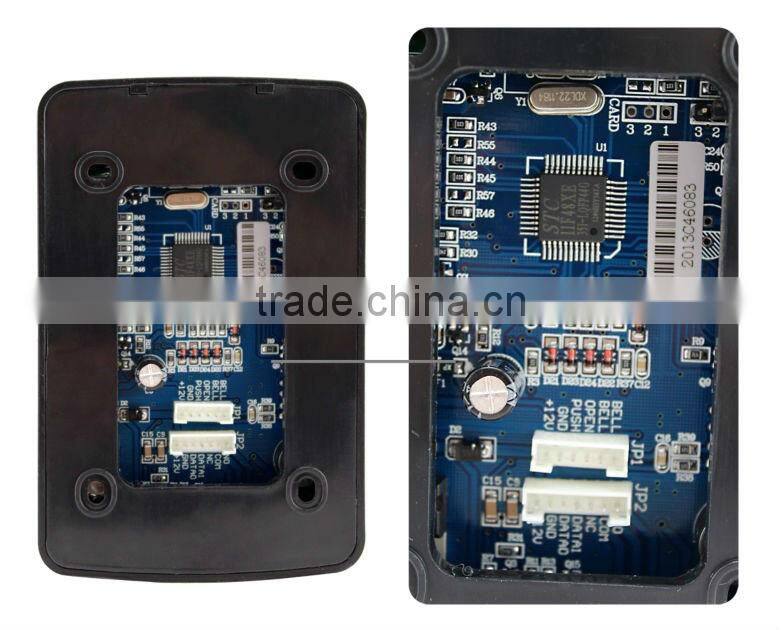

Access control keypad more detail:

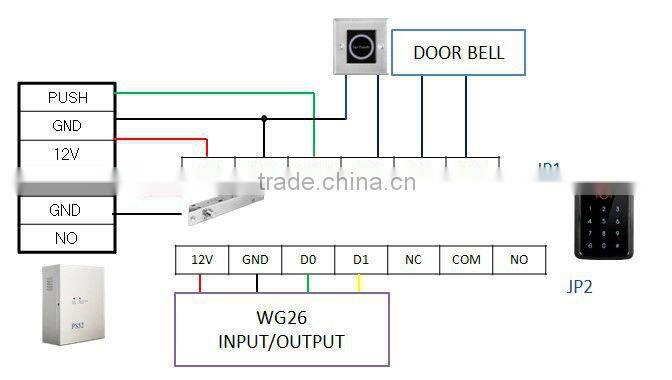

Access control keypad wiring diagram:

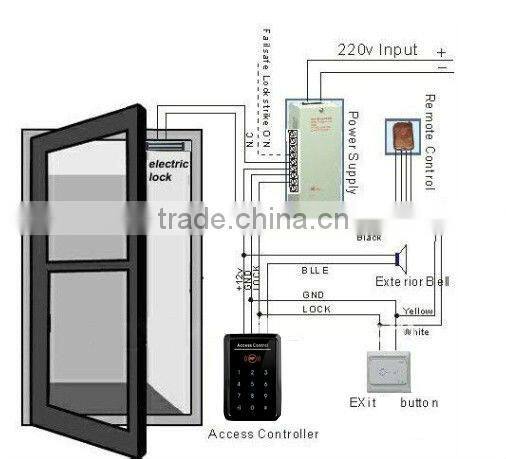

 Stand alone access control system with keypad:

 Access control keypad series:

Payment:

If the total amount is less than 500USD, we prefer to accept Paypal or Western Union. For big amount we accept bank transfer.

Shipment:

Normally we will use UPS, DHL, FEDEX or EMS express. It usually takes 3-7 working days depending on the countries deliver to.

We can also arrange other shipment way per your requirement and instruction, such as sea shipment, air shipment, etc.

Warranty:

Warranty for one year, maintenance forever, change within 3 months because of product quality.
