4.3 inch 480*272 500CD brightness TFT LCD Module

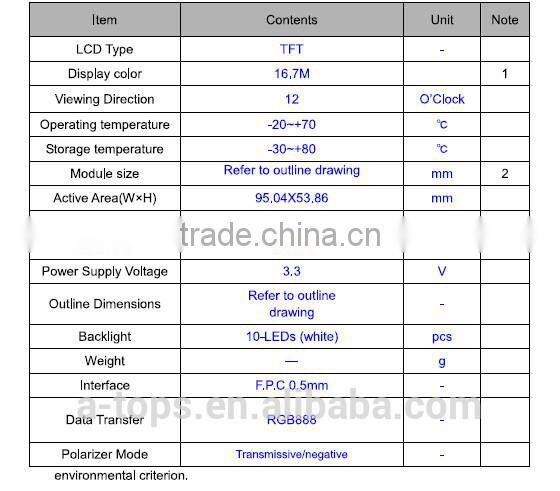

General Specifications:
AT043B35-15I-10 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a backlighy unit.The 4.3" display area contains 480*272 pixels and can display up to 16.7M colors.This product accords with ROHS

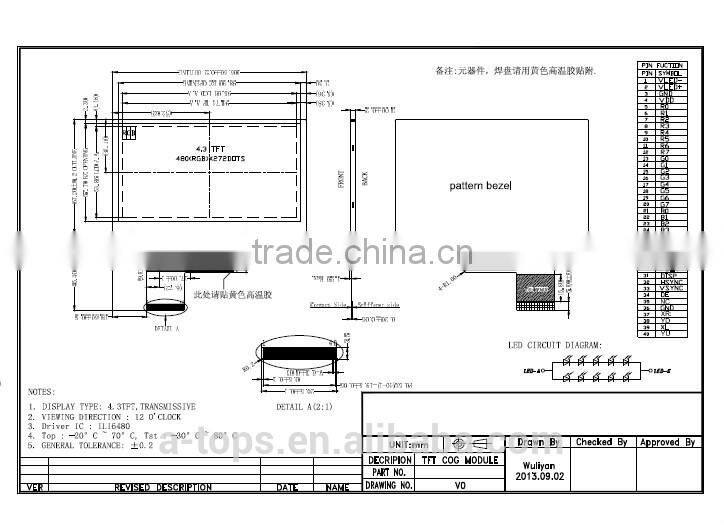

Outline drawing:
The applications of TFT:
automotive, security products, industrial instrumentation, medical equipment, terminal equipment, smart home.
TFT PACKAGE:
1.Put module into tray cavity.
2.Tray stacking.
3.Put 1 cardboard on the top and bottom of tray stack.
4.Fix the cardboard to the tray stack with adhesive tape.
5.Put the tray stack into carton with filler.
6.Carton sealing with adhesive tape.
Certificate: RoHS
Warranty:
All parts are tested working well before shipping out and if you really find defective you can return to us.
The company profile:
A-TOPS ELECTRONICS CO.,LTD was found in 1998 and consists of LCD Panel factory, TFT factory and CTP factory. We specialize in design, manufacturing, and supply of high quality LCD products. With 16 years experience and development, A-TOPS has grown to be a leader in display which offers customers with perfect solution, high quality and after-sales service.
Products Range:
1. TN/HTN, STN, FSTN LCD
2. COB, COG, TAB Connected LCM
3. TFT, Counter, Timer, VA products.
For more details pls visit our website
In fact,we can customized as your size,backlight and drawing.
Other TFT Module size: 2.4" 2.8" 3.2" 3.5" 5.0" 7.0"
