Medium Voltage 6KV Motor Soft Starter 250KW Made In China

FOB Price

USD $30,000 - $300,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	AUBO
Model Number	AMV-S

Product Description

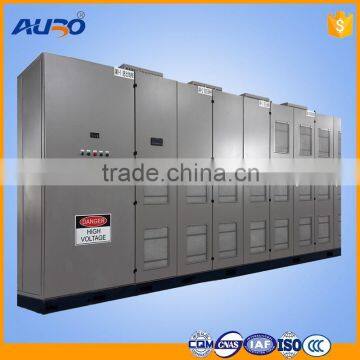

Medium Voltage 6KV Motor Soft Starter 250KW Made In China

Product Description

AMVS soft starter panel main features:

- Controlled by internal microcomputer and PLC

- With colored HMI touch screen, English or Chinese Text

-Solid state product backed by MV power electronic devices and modern control technology

-The constitution

AMVS is mainly composed of MV SCRs ( silicon controlled rectifier) , vacuum contactor, signal sampling circuit, trigger circuit, power driver circuit, main control board, optical fiber isolation signal cables, secondary relay control circuit, enclosure and other parts.

-How does it work?

The initial voltage of starting can be set flexibly according to the actual situation and demand of the equipment. The lowest set point is 15% of the supply voltage, the highest is 90%.Thus the motor has a larger starting torque and smaller starting current which reduces the requirement of power grid capacity required by equipment operation and saves the investment of related equipment. It reduce the impact stress to motor itself and to the machinery which can prolong the service life of motor and the machinery.

AMV-S Part Number & Rating (V06, V10 means 6kv, 10kv respectively)
Type	Current(A)	(KW)	Type	Current(A)	(KW)
AMV -SV06-500	60	500	AMV-SV10-0500	37	500
AMV -SV06-560	67	560	AMV-SV10-0560	41	560
AMV -SV06-630	75	630	AMV-SV10-0630	46	630
AMV -SV06-710	84	710	AMV-SV10-0710	51	710
AMV -SV06-800	95	800	AMV-SV10-0800	57	800
AMV -SV06-900	106	900	AMV-SV10-0900	64	900
AMV -SV06-1000	118	1000	AMV-SV10-1000	71	1000
AMV -SV06-1120	132	1120	AMV-SV10-1120	79	1120
AMV -SV06-1250	146	1250	AMV-SV10-1250	88	1250
AMV -SV06-1400	164	1400	AMV-SV10-1400	98	1400
AMV -SV06-1600	185	1600	AMV-SV10-1600	112	1600
AMV -SV06-1800	220	1800	AMV-SV10-1800	127	1800
AMV -SV06-2000	229	2000	AMV-SV10-2000	141	2000
AMV -SV06-2240	251	2240	AMV-SV10-2250	157	2250
AMV -SV06-2500	281	2500	AMV-SV10-2500	175	2500
AMV -SV06-2800	324	2800	AMV-SV10-2800	195	2800
AMV -SV06-3150	363	3150	AMV-SV10-3150	230	3150
AMV -SV06-3550	428	3550	AMV-SV10-3550	259	3550
AMV -SV06-4000	482	4000	AMV-SV10-4000	290	4000
AMV -SV06-4500	542	4500	AMV-SV10-4500	326	4500
AMV -SV06-5000	602	5000	AMV-SV10-5000	362	5000
AMV -SV06-6000	723	6000	AMV-SV10-5600	405	5600
AMV -SV06-7000	844	7000	AMV-SV10-6300	455	6300
AMV -SV06-8000	964	8000	AMV-SV10-7100	512	7100

Packaging

1, ≤22KW products use cartons

2, 30kw~132KW products use small wooden boxes

3, ≥160KW products use large wooden boxes

Shipping

We have several transport options for customer to choose:

1, Transport by sea

2, Transport by truck

3, Transport by train

4, Transport by express service

5. Transport by air, (to be confirmed )

Our Services

1,We can design the job for your specs or your project

2,We provide site commissioning on demand

Certifications

Trade term

1.Delivery term: FOB, CIF,EXW are available.

2.Payment term:30% down payment, 70% before dispatching

3.Production lead-time: 1-2 weeks

4.Shipping lead-time: 3-4 weeks

5.Logistics: competitive forwarder with good price, reliable partner of long time cooperation
