Push Back Collapsible Heavy Duty Metal Rack

Jiangsu Road Material Handling Equipment Manufacturing Co., Ltd.
Push Back Collapsible Heavy Duty Metal Rack thumbnail-1
Push Back Collapsible Heavy Duty Metal Rack thumbnail-2
Push Back Collapsible Heavy Duty Metal Rack thumbnail-3
Push Back Collapsible Heavy Duty Metal Rack thumbnail-4
Push Back Collapsible Heavy Duty Metal Rack thumbnail-5
Push Back Collapsible Heavy Duty Metal Rack thumbnail-6
Push Back Collapsible Heavy Duty Metal Rack photo-1

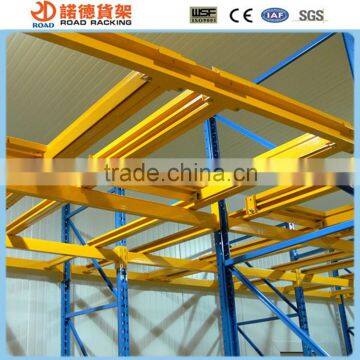

Push Back Collapsible Heavy Duty Metal Rack photo-2
Push Back Collapsible Heavy Duty Metal Rack photo-3

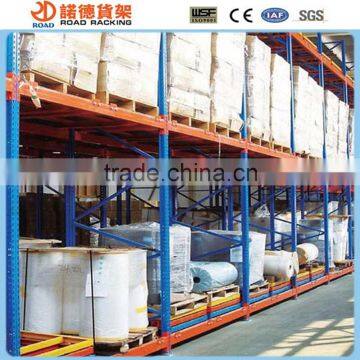

Push Back Collapsible Heavy Duty Metal Rack photo-4

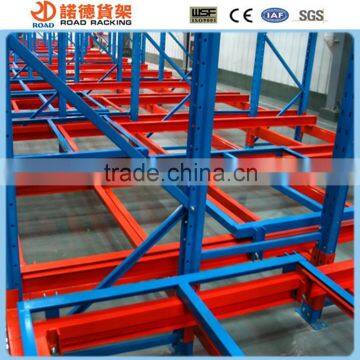

Push Back Collapsible Heavy Duty Metal Rack photo-5
Push Back Collapsible Heavy Duty Metal Rack photo-6
US$ 10 - 99 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ROAD
Model Number:
RDC-PBR
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Nanjing/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name ROAD
Model Number RDC-PBR
Type Pallet Rack
Scale Heavy Duty
Capacity 500-2000 kgs /pallet.
Product Description

Push back collapsible heavy duty metal rack

Push back pallet racking fills the storage cube with product, not aisles. Instead of single pallet-deep selective racks, a Push back rack system lets you store pallets 2 to 5 deep while retaining easy access to a variety of different SKUs.

Push back pallet racking Feature & Application:

1.Large storage quantity for high efficiency of space utility,

2.Push back pallet racking is suitable for storing varieties and large amount of cargos,It's widely use for cold storage.

3.Operates on First-In Last-Out (FILO) principles.

4.Push Back Racking are used with a cart system up to 5 pallets deep and used with various pallet size.

5. Carts are colour coded to aid stock control and identify empty locations.

SPECIFICATIONS FOR PUSH BACK PALLET RACKING

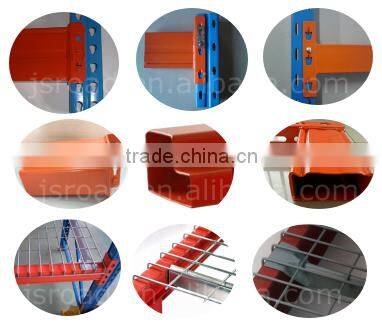

 Main Parts
1.Upright Frame Specs: 80×60, 90×65/70, 100×70, 120×90/95mm, etc
    Teardrop Upright Frame: 3''×3''×13-16 ga.
2.Box Beam Sections: 80×50, 100×50, 110×50, 120×50, 140×50,etc.
3.Slide rail and Cart
Dimension
Racking sizes can be custom-design
Load Capacity
500-2,000 kgs /pallet.
 Pitch
50.8mm, 50mm,75mm and 76.2mm
   Material
Q235 steel
Surface Treatment
Powder coating/Galvanized
Delivery Time
20-25 days after received the deposits

Push back collapsible heavy duty metal rack


How Push Back Pallet Racking work:

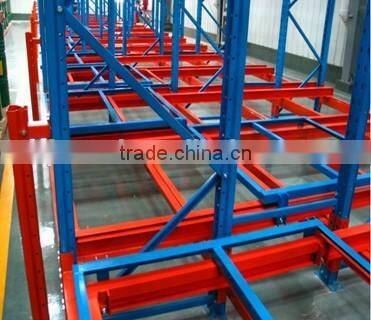

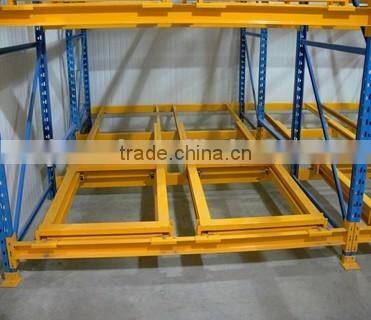

Pallets are placed by forklift on nested carts riding on inclined rails. Each pallet is then pushed back by subsequent pallet loading, exposing the next cart.
When removing product, the forklift takes out the front pallet, allowing the pallets on carts behind it to roll gently to the front of the rack. The nested carts make placement and retrieval easy.

Advantages of Push Back Pallet Racking:

1)High density storage with different pallet types
2) Operates on First-In Last-Out (FILO) principles
3) More picking faces as each lane can be used to store different commodities

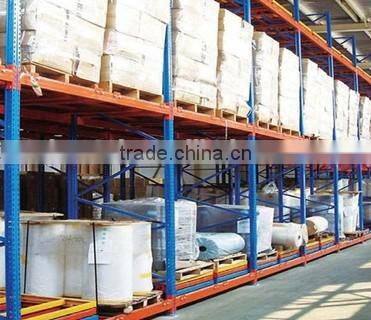

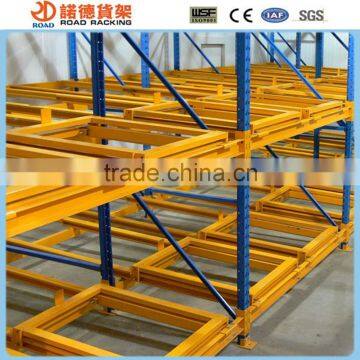

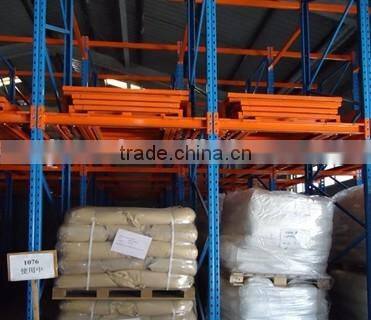

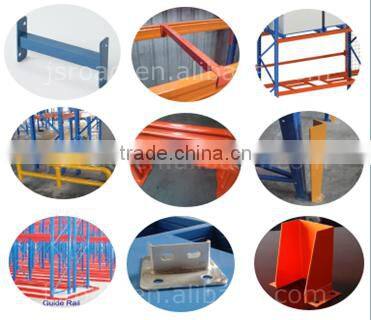

Detailed Images

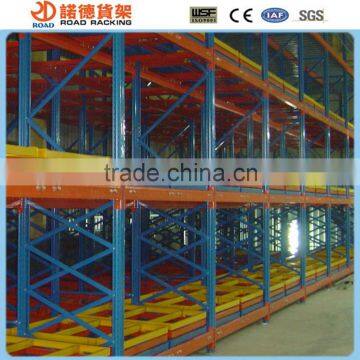

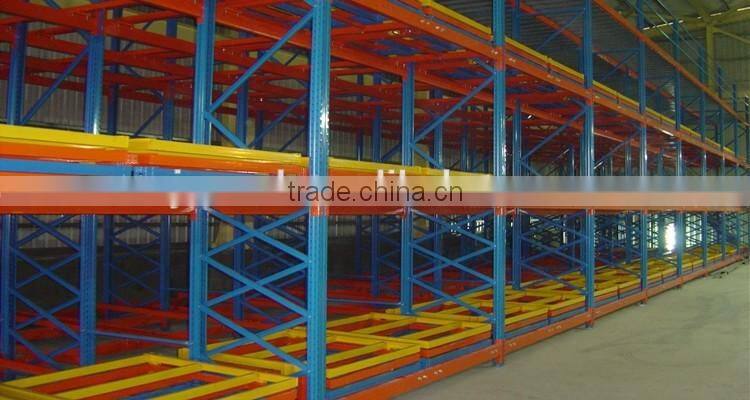

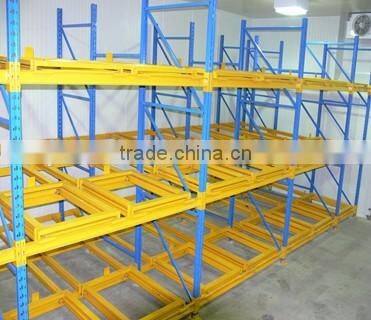

Push back collapsible heavy duty metal rack

Our Company&Service





ROAD RACKING COMPANY:
--- A professional manufacturer with more than 13 years experience for producing of storage shelving & racking.
--- Our factory covers over 25, 000 square meters.
--- More than 100 professional and experienced staffs.

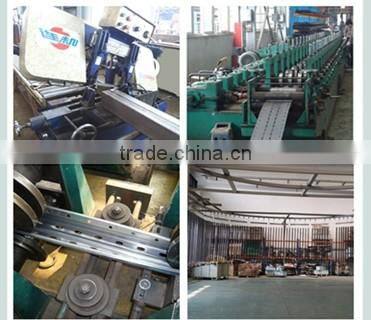

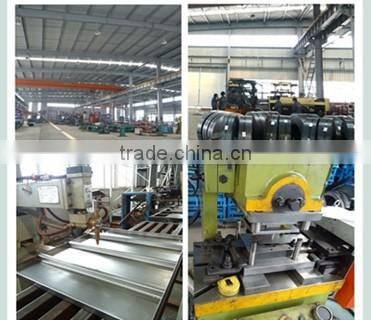

--- Over 10 automatic manufacturing machines and equipment.
--- Monthly output up to 2,000 tons.

OUR SERVICE：
--- Professoinal storage solutions satisfying customer storage needs.
--- Qualified products with strict quality control and rapid delivery time.
--- Production time within 20 days for ordinary order quantity.
--- Samples available, If you need a sample, please tell us your receiving account number,samples will be sent to you.
--- All our products has one year quality warranty excluded artificially damaged.
Packing & Delivery


Related Products

        Heavy duty drive in racking

     Multilayer truck tire storage rack

 Mezzanine floor rack storage rack

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory for producing and exporting. Racking System.

Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Nanjing City, Jiangsu Province, China, close to Shanghai.
You can fly to Nanjing or Shanghai airport directly. warmly welcome to visit us whenever you are available!

Q3: What is the raw material of your products?
A3: The raw material of steel is Q235. also available to special requirements.

Q4: Do you have any request about the order quantity?
A4: Any order quantity is accepted. But small order would take more shipping cost;

Q5: What is the term of payment?
A5: Generally, 30% T/T down payment and the balance before shipping, other terms could be further discussed;

Q6:How could you guarantee the products quality?
A6: With experienced workers and strict quality control and the goods will be check whether quality is approved before shipping.

Q7: How could I install the racks?
A7: Detail install drawing will be provided to teach you how to install the racks. If needed, we also could provide
free engineer to teach you installation. But related cost( Flight, living and eating) should be in your charge.

Q8: How can I get your quick quotation on my racking project?
A8: As different clients and projects have different needs of racking dimensions and specification, as general,

for quick quotation, we need to know following info:
--- Shelving and Racking Dimension: Length*Depth*Height
--- How many Layers?
--- Loading Capacity for each layers
--- Racking Quantity
--- If possible,please provide warehouse layout.
