Home > Products > Switches Group > FTVCM08 smt small tactile touch switch overlay 12v 50mA

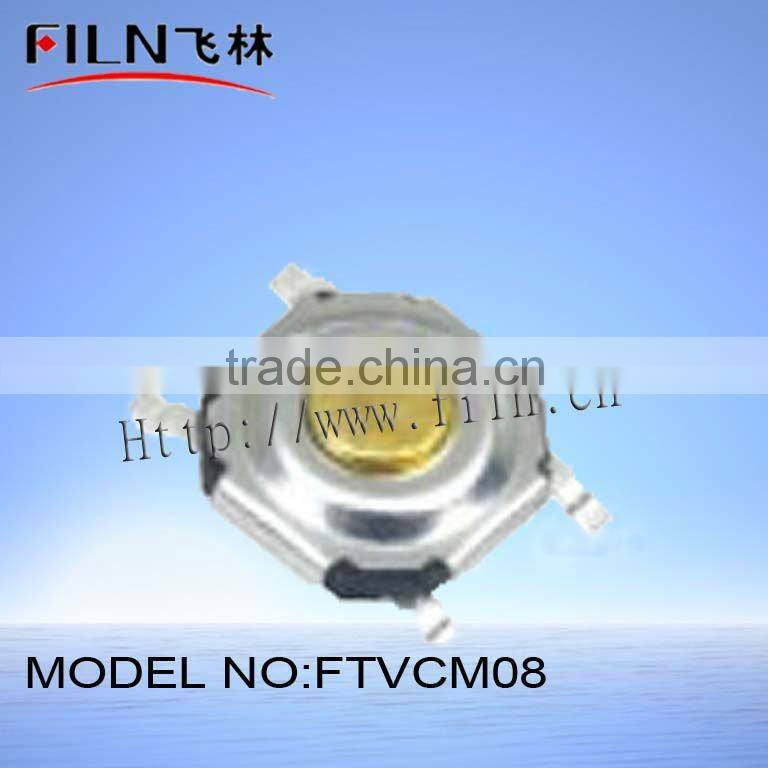

FTVCM08 smt small tactile touch switch overlay 12v 50mA
- 10000 Piece / Pieces per Month
- ningbo or shanghai
- Credit Card
- FTVCM09 smt momentary tactile tact lcd touch wall switch
- FTVCM09 smt tact push button touch light switch home
- FTVCU06 smt tactile tact push button touch sensor switch
- FTVCU06 smt 4.5x4.5x0.4mm tact push button soft touch switch
- FTVCM10 smt 4.5x4.5x0.55mm low profile tact push dc touch switch
- FTVCU11 smt 5.2x5.2mm super thin touch led dimmer switch
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | filn | Model Number: | FTVCM08 |
Protection Level: | IP65 | Max. Current: | 50mA | Max. Voltage: | 12VDC |
Packaging Details
normal exporting package
Product Description
Specifications
1.low profile2.SMT
3.ROHS
Features
1.4.5x4.5mm dimensions with 0.5mm height ,suitable for high density mounting.
2.reflow solderable.
3.save 13% mounting space than conventional 5.2x5.2 type
Applications
For operaing various devices such as mobile phones ,communication devices,video recorders,cameras and audio devices that reqiuire lowprofile and lightweight design.

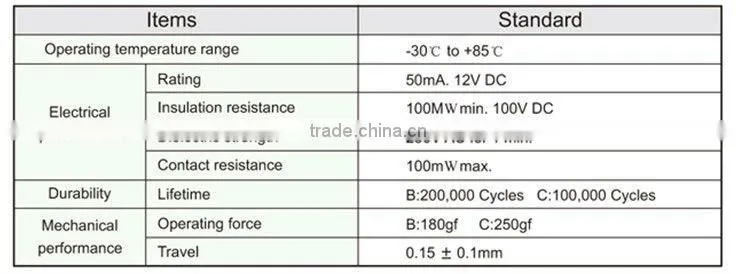

Specification

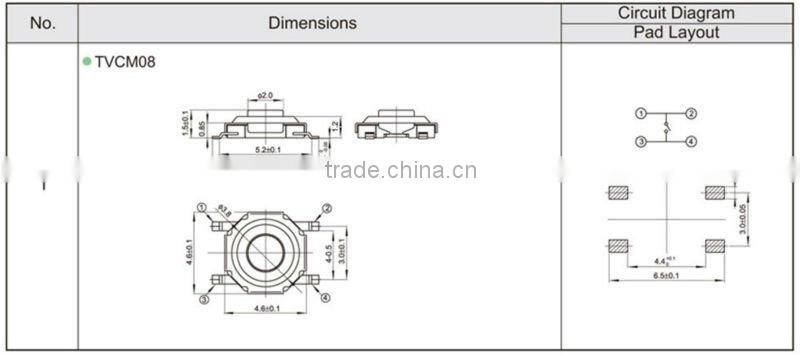

Diagram
