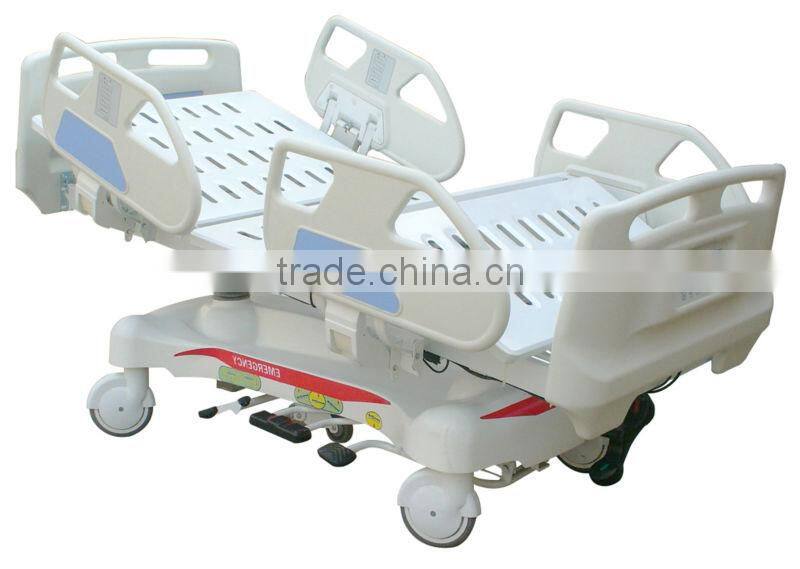

KL001-2 Electric Adjustable Bed Control,Hospital Hydraulic Bed,Electric Nursing Bed

KL001-2  Electric Adjustable Bed Control,Hospital Hydraulic Bed,Electric Nursing Bed

[Introduction]

lIts in-bed scale system increase efficiencies by taking accurate weight readings with the patient in any position.

lIntegral Patient Bed Exit Alarm, audible alarm if the patient exits the bed.

lIt addresses patient safety with low bed height, full coverage side rails.

lIts architecture support surface designed provides the flexibility to choose the most appropriatepatient surface.

lPatient will feel very convenient while be on drip or used the heart monitor since it won’t need to change patientposition when the bed back section rise and low.

lHydraulic pump enables height adjustment, trendelenburg position with hands free

[Standard Function]

lDetachable head and foot board

lFour independence motors from LINAK

lWeight readings system

lWith I.V.pole

lWith Drainage bag hooks on both sides

lControl hand held, can hook on the side rails

lCPR handle

lElectronic function Lock at end of foot panel, nurse control (optional)

lBed surface with soft connection

lWater proof mattress high density foam (optional)

[Technical Specification]

lFull Length 2150mm

lFull width 1030mm

lMaximum safe load 250kg

lAccuracy of measurement 0.1kg (Optional 0.05kg 0.02kg)

lBed base height range maximum height 750mm

lmaximum low 500mm

lBed base angle position adjustable Back section 0°~80°

lKnee section 0°~40°

lTrendelenburg 0°~12°

lPatient touching surface 900*1950mm

lCastor diameter 150mm
