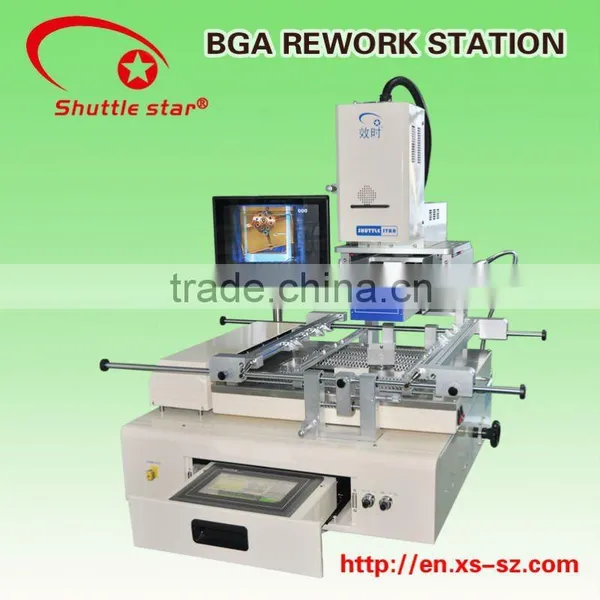

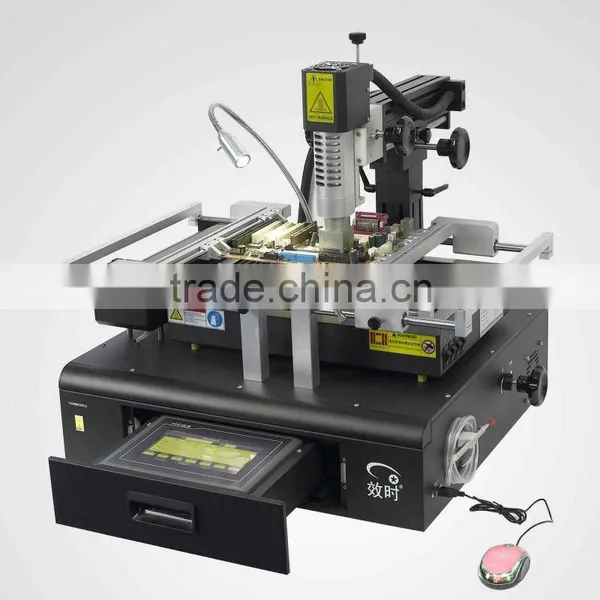

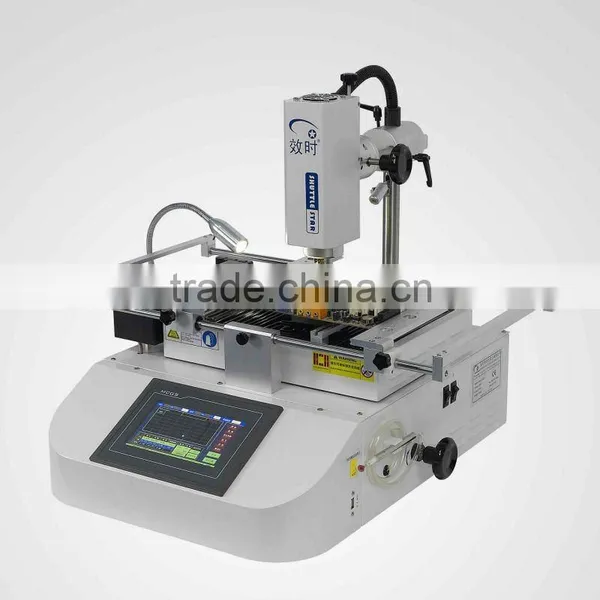

BGA Reball Station with optical system(SV550)

Specifications

BGA Reball Station
*semi-auto,step motor driven
*PLC&splint vision optics system
*Large bottom IR heater
*1 year warranty

Warranty:

1 year warranty, if  parts get broken not artificially, we can replace the new one  and the relative shipping cost is on our party.



Specification



Applicable PCB:	W20*D20~W620*D550mm
PCB thickness:	0.5~4mm
Working table adjustment:	±120mm forward/backward, ±80mm left/right
Temperature control:	K-type thermocouple, close cycle controlled
Upper heater(hot air):	1200W
Lower heater(hot air):	800W
Bottom IR heater:	3600W
Power supply:	AC singal-phase 220V 50/60Hz
Applicable BGA:	1*1~70*70mm
Placement precision:	0.01mm
Max BGA weight:	300g
Machine Weight:	95KG
Machine Dimension:	L850*W750*H630mm



Features

1. Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and desoldering function;
2. Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen;
3. Upper heater is movable, with electromagnet positioning,  convenient for manual placement operation;
4. Large movable bottom IR heating area(can be moved 100mm to left or to right), PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550×500mm;
5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
6. Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70×70mm;
7. Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and  practically tested profile at the same time; can analyze the  practically-tested profiles, and compare them with the history saved profiles;
8. Color LCD monitor;
9. Built-in vacuum pump; 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
10. 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;profile analysis can be carried out on the touch scren;
11. Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range;
12. Equipped with different hot air nozzles, easy to replace and able to locate in any angle;
13. Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.
