9 Ports Full Gigabit Unmanaged Industrial Network Switch I509A
US$ 1 - 199
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
i509A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Ethernet Ports and 1 SFP Slot Full Gigabit Unmanaged Industrial Network Switch I509AUS$ 1 - 199MOQ: 1 Piece -
8 x 10/100/1000BaseT(X) Ports and 1 x 1000Base Full Gigabit Network Industrial Switch Unmanaged Network Switch I509AUS$ 1 - 199MOQ: 1 Piece
-
5 Years Warranty 4 Ports Gigabit Switch, 2 SFP Slots and 2 RJ45 Ports 10 /100/1000Mbps Din-Rail Ethernet Switches I504AUS$ 1 - 199MOQ: 1 Piece
-
4 Ports Gigabit Switch 2x1000BaseX SFP and 2x10/100/1000BaseT(X)Ports Industrial Switches for Smart Transportation I504AUS$ 1 - 199MOQ: 1 Piece
-
High-quality 4 Ports Gigabit Industrial Switch Din-Rail Industrial Ethernet Network Switches I504AUS$ 1 - 199MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
i509A

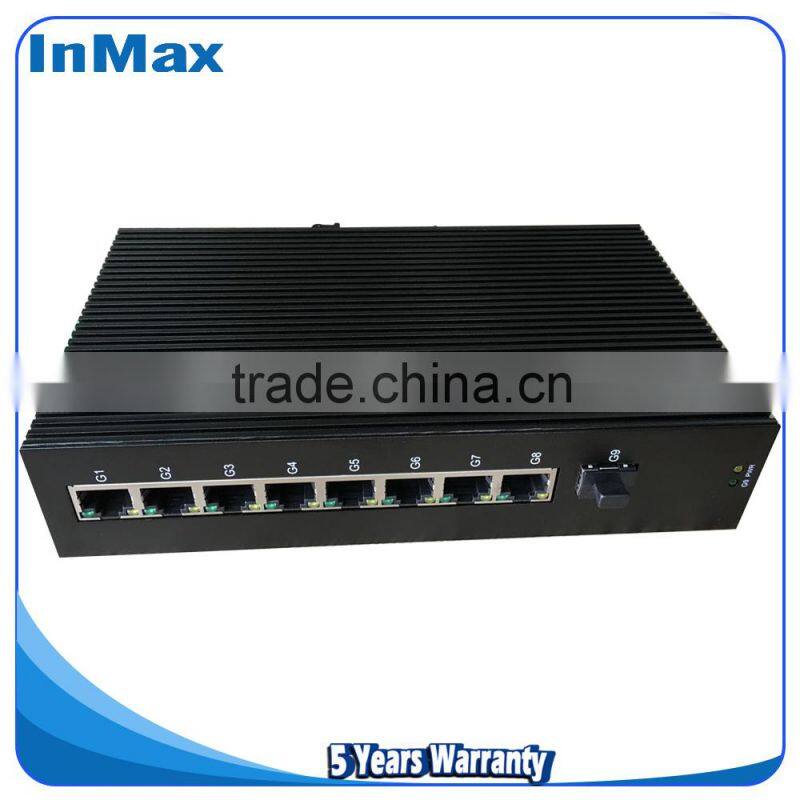

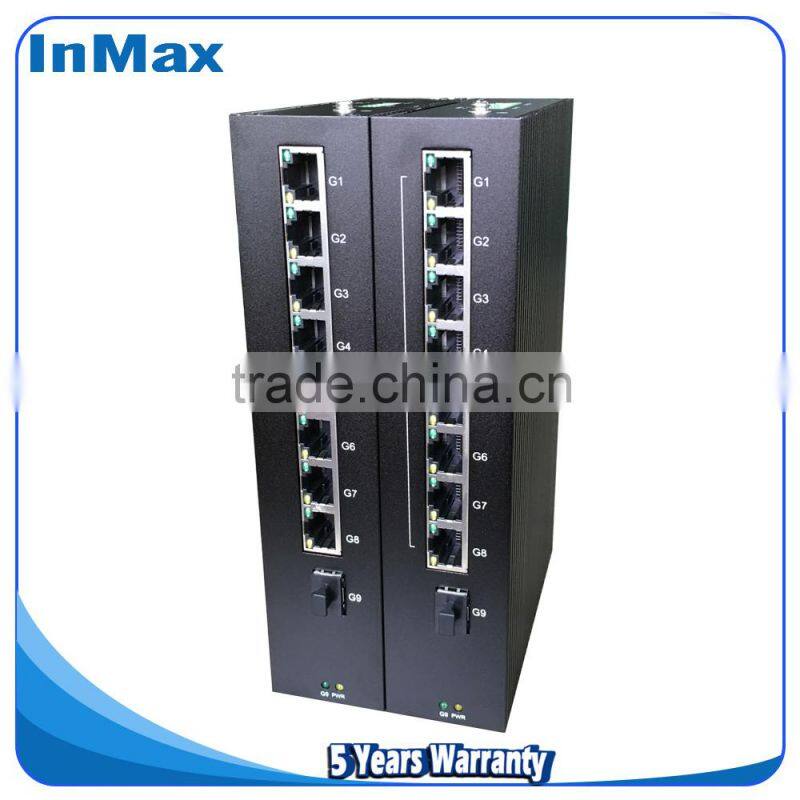

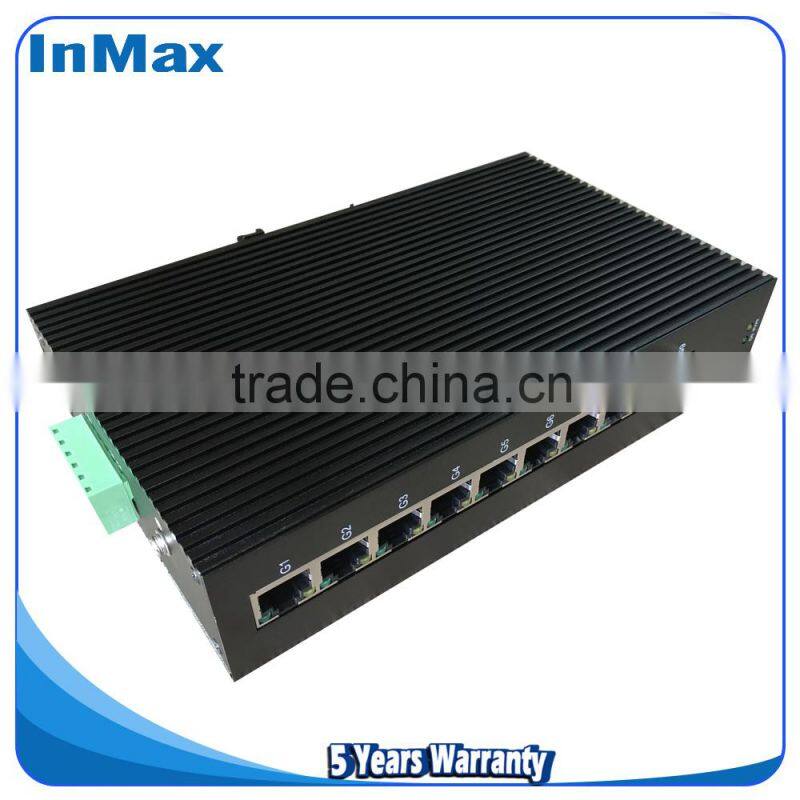

9 Port Full Gigabit Unmanaged Industrial Ethernet Switch i509A
Features and Benefits
- With 8×10/100/1000BaseT(X) ports, and 1×1000BaseX SFP slot
- Redundant dual 12/24/48 VDC power inputs,built-in over-current protection, Reverse connection protection
- -40 to 75℃ operating temperature range (WT models)
- No fan, low consumption, industrial design standard,ndustrial grade electronic components, environmental protection & lead-free production
- Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
- IP Rating up to IP40
- No packet lost in 72 hours full load traffic testing
Introduction
i509A Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 9 Gigabit Ethernet ports, and up to 1 fiber optic port, making them ideal for applications that demand high bandwidth.
No fan, low power consumption design, working function more steady, and no packet lost in 72 hours full load traffic testing.
It accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
| Standards | IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) | |
| IEEE 802.3ab for 1000BaseT(X) | |
| IEEE 802.3x for Flow Control | |
| IEEE 802.3z for 1000BaseX | |
| IEEE 802.3az for Energy-Efficient Ethernet | |
| Flow Control | IEEE 802.3x Flow Control,Back Pressure Flow Control |
Switch Properties
| packet forwarding rate | 16.368Mpps |
| Processing Type | Store and Forward |
| MAC Table Size | 16 K |
| Jumbo Frame Size | 10Kbytes |
| Backplane | 22G |
| Packet Buffer Size | 2 Mbit |
Interface
| Fiber Ports | 1000BaseX SFP Slot |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Full/Half duplex mode | |
| MDI/MDI-X connection | |
| LED | RJ45 Ports: Link G1~G8, Act G1~G8 |
| Fiber Ports: Link/Act G9 | |
| Power: PWR |
Power Requirements

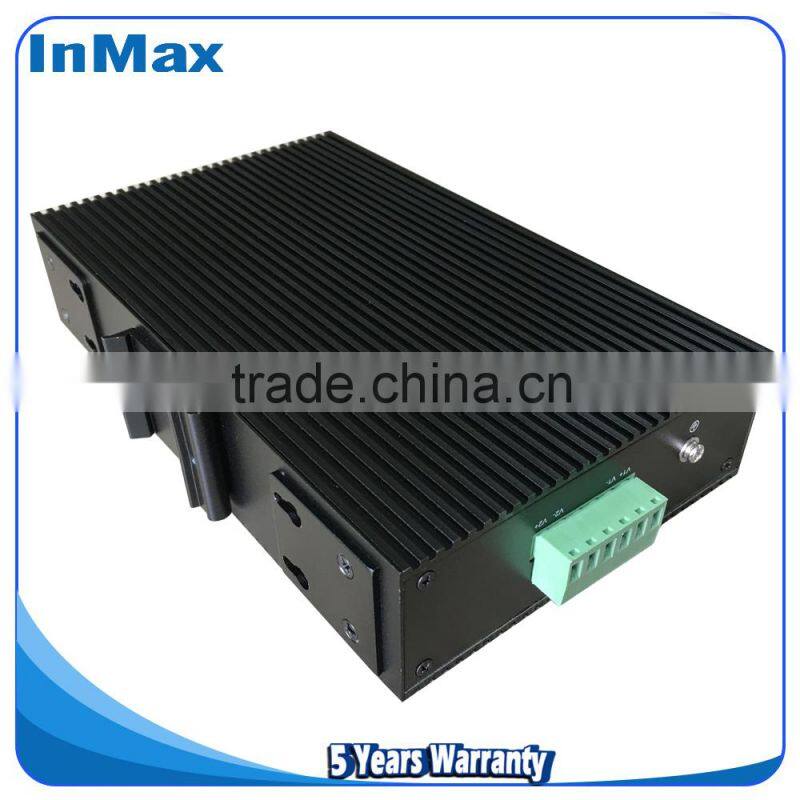

| Connection | 1 removable 6-contact terminal block |
| Input Voltage | 12/24/48VDC(9.6 to 60VDC),Redundant Dual Inputs |
| No-load Power | 5W @ 24VDC |
| Full-load Power | 8W @ 24VDC |
| Redundant Dual Inputs | Present |
| Reverse Polarity Protection | Present |
| Over current protection | Present |
Physical Characteristics
| Housing | Hard aluminum alloy case |
| IP Rating | IP40 |
| Dimensions (W×H×D) | 41 × 202 × 128 mm |
| Weight | 680g |
| Installation | DIN-rail mounting, wall mounting |
Environmental Limits
| Operating Temperature | Standard Models: -25 to 60℃ (-13 to 140℉) |
| Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
| Storage Temperature | -40 to 85℃(-40 to 185℉) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Industrial standard
| EMI | FCC Part 15,CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD),Level 4 |
| EN61000-4-3 (RS),Level 3 | |
| EN61000-4-4 (EFT),Level 4 | |
| EN61000-4-5 (Surge),Level 4 | |
| EN61000-4-6 (CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Warranty
| Warranty Period | 5 years |
Ordering
| Product Model | Description |
| i509A | with 8x10/100/1000BaseT(X) ports,and 1x1000BaseX SFP slots, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature |
| i509A-WT | with 8x10/100/1000BaseT(X) ports,and 1x1000BaseX SFP slots, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature |
Dimension
Specs
