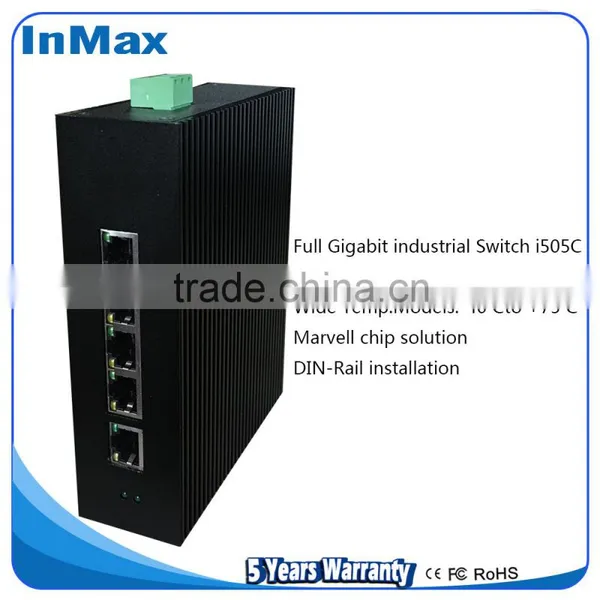

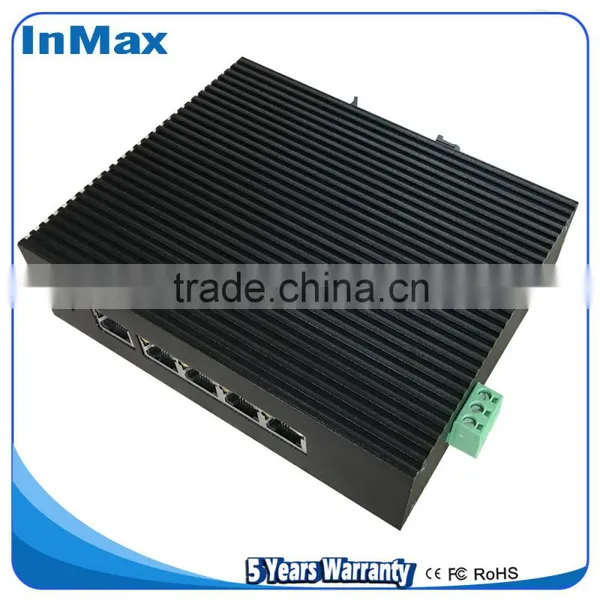

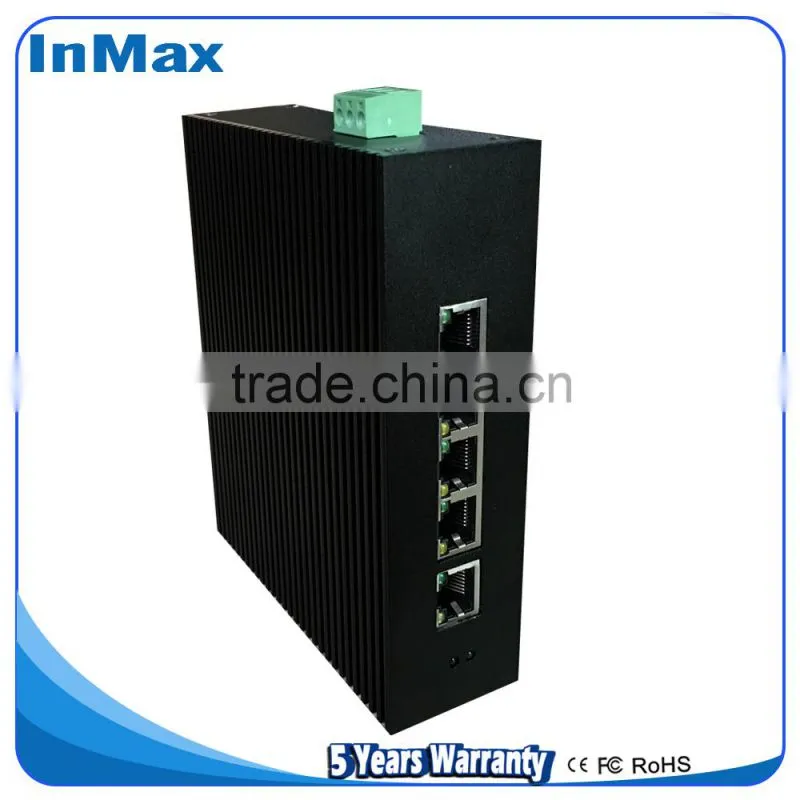

full gigabit IP 40 protection 5x10/100/1000MBase TX Gigabit Industrial Ethernet Switch i505C

FOB Price

USD $1 - $199 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen or Hong Kong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	InMax
Model Number	i505C

Product Description

i505C Full Gigabit Unmanaged Industrial Ethernet Switches

Features and Benefits

With 5×10/100/1000BaseT(X) ports
Redundant dual 12/24/48 VDC power inputs,Built-in over-current protection, Reverse connection protection
-40 to 75℃ operating temperature range (WT models)
No fan, low consumption, industrial design standard,industrial grade electronic components,environmental protection & lead-free production

Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
IP Rating up to IP40
No packet lost in 72 hours full load traffic testing

Introduction

i505C Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 5 No Fan,Low Consumption design,Working function more steady,and No packet lost in 72 hours full load traffic testing.
It accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.

Specs

Technology

Standards	IEEE 802.3 for 10BaseT
	IEEE 802.3u for 100BaseT(X)
	IEEE 802.3ab for 1000BaseT(X)
	IEEE 802.3x for Flow Control
	IEEE 802.3az for Energy-Efficient Ethernet
Flow Control	IEEE 802.3x Flow Control,Back Pressure Flow Control

Switch Properties

packet forwarding rate	8.928Mpps
Processing Type	Store and Forward
MAC Table Size	1 K
Jumbo Frame Size	10Byte
Backplane	12G
Packet Buffer Size	1Mbit

Interface

RJ45 Ports	10/100/1000BaseT(X) auto negotiation speed
	Full/Half duplex mode
	MDI/MDI-X connection
LED	RJ45 Ports: Link G1~G5, Act G1~G5
	Power: PWR

Power Requirements

Connection	1 removable 6-contact terminal block
Input Voltage	12/24/48VDC(9.6 to 60VDC),Redundant Dual Inputs
No-load Power	5W @ 24VDC
Full-load Power	8W @ 24VDC
Redundant Dual Inputs	Present
Reverse Polarity Protection	Present
Over current protection	Present

Physical Characteristics

Housing	Hard aluminum alloy case
IP Rating	IP40
Dimensions (W×H×D)	41 × 153.5 × 128 mm
Weight	550g
Installation	DIN-rail mounting, wall mounting

Environmental Limits

Operating Temperature	Standard Models: -25 to 60℃ (-13 to 140℉)
Operating Temperature	Wide Temp. Models: -40 to 75℃ (-40 to 167℉)
Storage Temperature	-40 to 85℃(-40 to 185℉)
Ambient Relative Humidity	5 to 95% (non-condensing)

Industrial standard

EMI	FCC Part 15,CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD),Level 4
	EN61000-4-3 (RS),Level 3
	EN61000-4-4 (EFT),Level 4
	EN61000-4-5 (Surge),Level 4
	EN61000-4-6 (CS),Level 3
	EN61000-4-8,Level 5
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Warranty

Warranty Period

5 years

Ordering

Product Model	Description
i505C	with 5 10/100/1000BaseT(X) ports. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature
i505C-WT	with 5 10/100/1000BaseT(X) ports. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature

Dimension
