LFM108 Differential Pressure Gauge

Zhejiang LEFOO Industrial Co., Ltd. Business license
LFM108 Differential Pressure Gauge thumbnail-1
LFM108 Differential Pressure Gauge photo-1
US$ 1 - 1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LEFOO
Model Number:
LFM108
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LEFOO
Model Number LFM108

LFM108 differential pressure gauge



Application:

 Heating, Ventilation and Air Conditioning (HVAC)



Energy Management System



Static Duct Pressure



Clean Room Pressure



 Over Pressurization and Furnace Draft Control



 Media:Air and neutral gases





Pressure range table

Unidirectional pressure       Bidirectional pressure

0~100Pa

0~±50Pa

0~250Pa

0~±100Pa

0~500Pa

0~±250Pa

0~1000Pa

0~±500Pa

0~2500Pa

0~±1000Pa

0~5000Pa

0~±2500Pa

0~10,000Pa

0~±5000Pa



0~±10,000Pa

Other pressure range are selectable

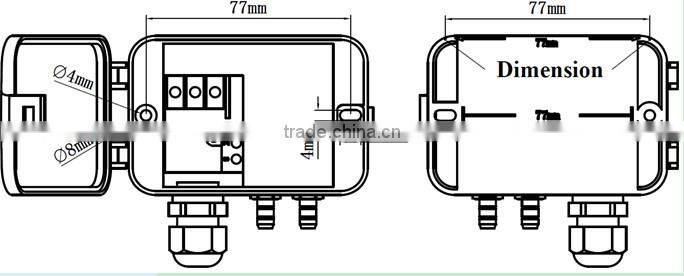

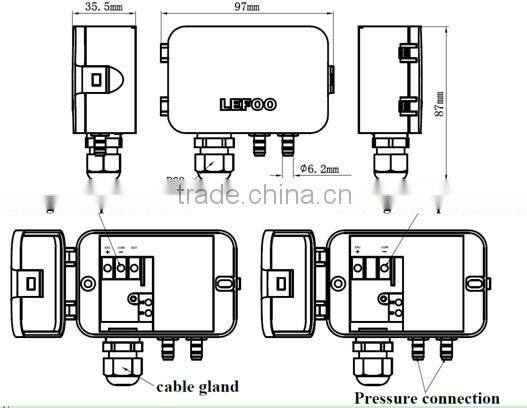

LFM108 differential pressure gauge





Specification

Accuracy

±1.0%FS

Compensated temperatures

-10~+60℃

Zero/Full range deviation %FS/℃

±0.01

Over pressure capacity

×15

Output signal

0~5/10VDC3-wire



4~20mA2-wire

Supply voltage

0~5/10VDC12~30VDC



4~20mA10~30VDC

Ambient temperature

-10~60℃

Housing

Industrial plastic, fire resistance level per UL94-V0

Pressure connection

Ribbed Ø6.2mm

Cable gland

Cables Ø8mm maximum

Protection standard

IP54

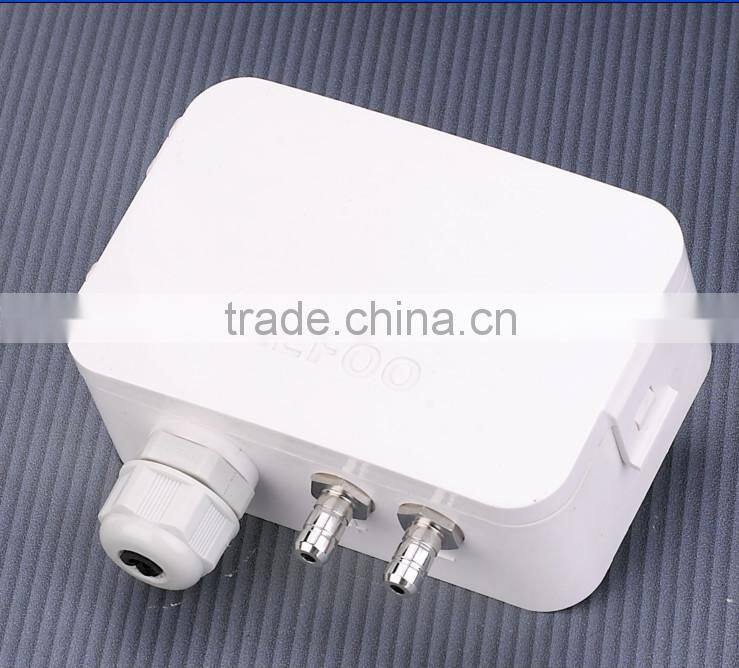

 LFM108 differential pressure gauge
