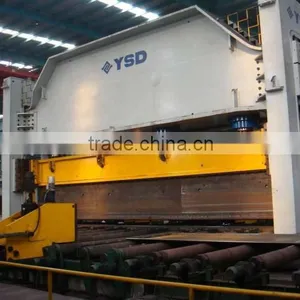

YSD PPF Pipe press former

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	YSD,LVD-HD
Model Number	PPF3600/122	Machine Type	Pipe and Tube Bending Machine
Raw Material	Sheet / Plate Rolling	Material / Metal Processed	Stainless Steel
Power	Hydraulic	Automation	Automatic
Extra Services	Machining	Certification	CE

Product Description

Specifications

CE&CSA certificate
"First Prize in China Machinery Industry Scientific and Technological Progress"
Obtain six national patent

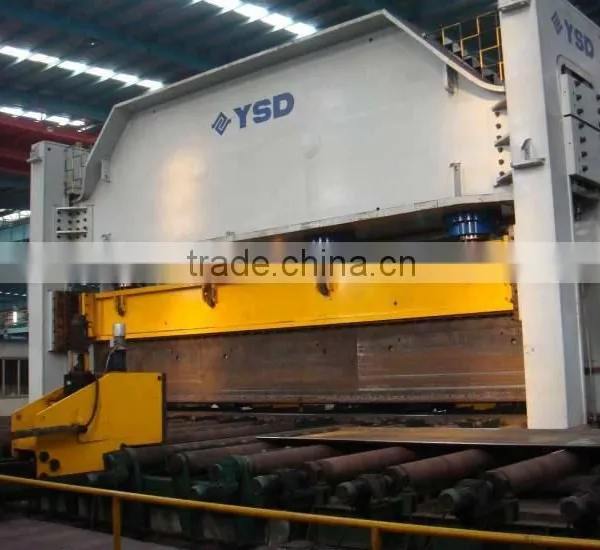

PPF Series Multiple cylinders CNC synchronous bending forming machine was innovate and developed by YSD Company in lately years, it is the advanced technology and tremendous metal forming machine in the world. The machine are composed of main machine, front and back feeding system, front and back supporting system, roller conveyor, side discharge system, moulds tooling and CNC control system.

PPF series CNC pipe former adopt the technology of incremental forming technology, frame-type three-beam structure, multi-cylinder, electro-hydraulic servo synchronized CNC control, high accuracy comprehensation, automatic feeding, pipe forming, pipe rotation and automatic discharge and many other kinds of functions can be achieved on th maching.

It can produce the straight seam pipes with diameter of 406-1626mm and thickness of 60mm.

PPF 6500/135 CNC pipe former had awarded "First Prize in China Machinery Industry Scientific and Technological Progress" in 2008, and another six practical technologies on the machine had obtained the national patent.

Main Technical Specification:

Specification	Unit	3600/125	5200/125	6000/125	8000/125	10000/125
Pressing force	kN	36000	52000	60000	80000	100000
Full-face distance between housings	mm	12200	12500	12500	12500	12500
Bending length	mm	12000	12200	12200	12200	12200
Side distance between housings	mm	1500	1700	1700	1700	1700
Max. outer diameter of the bending pipe	mm	1400	1524	1524	1524	1524
Number of main cylinders		4	6	6	6	6
Max. open height	mm	2400	2500	2500	2500	2500
Stroke of the RAM	mm	400	400	400	400	400
Approaching speed	mm/s	60	60	60	60	60
Working speed	mm/s	7	9	8	8	6
Returning speed	mm/s	60	60	60	60	60
Main machine power	kw	315	615	615	750	750
Accessorial system power	kw	120	180	180	200	200
