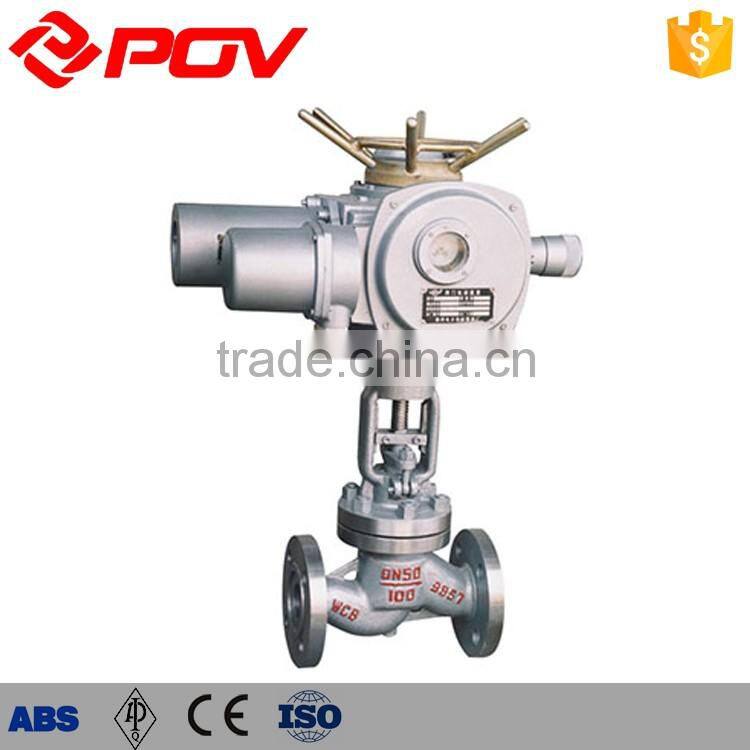

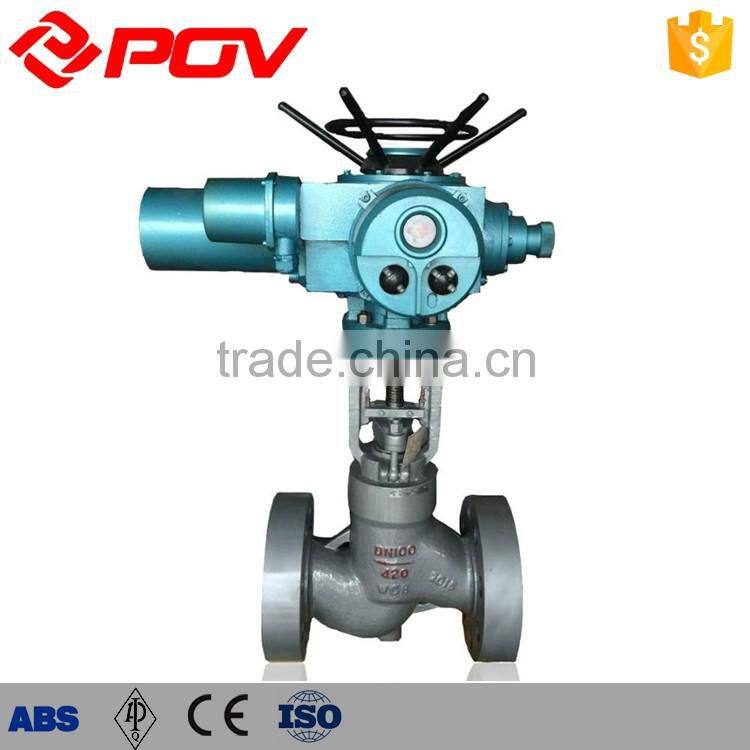

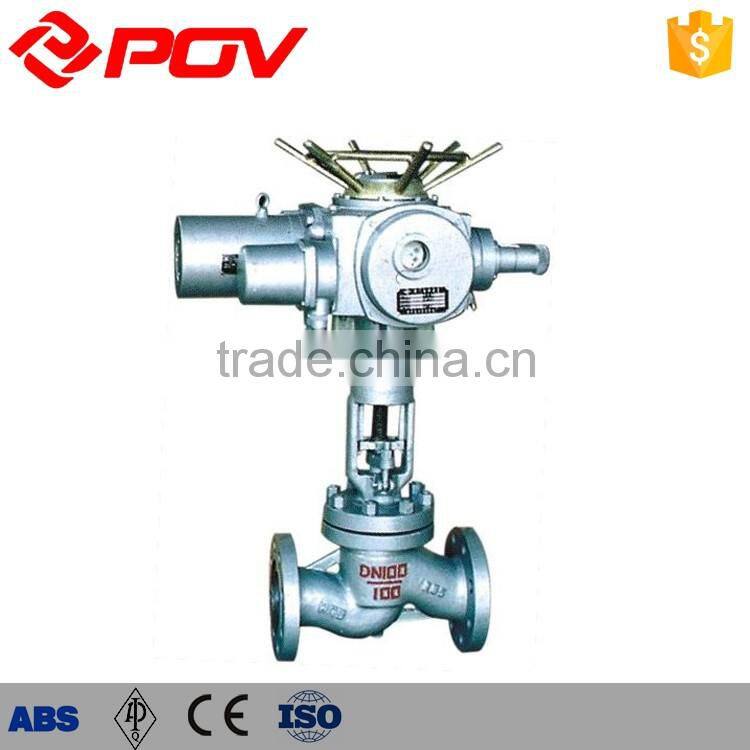

2 inch electric steam stop valve assembly drawing
- 4000 Unit / Units per Month
- Shanghai port Ningbo port China's any port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Standard or Nonstandard: | Standard | Structure: | Shutoff | Pressure: | Medium Pressure |
| Power: | Solenoid | Material: | Casting | Temperature of Media: | Normal Temperature |
| Media: | Water | Port Size: | Standard | Place of Origin: | Shanghai, China |
| Model Number: | Electric stop Valve | Brand Name: | POV | Application: | General |
Product Description
Pov valve (shanghai) Co.Ltd.after many years of field experience,R&D and design of products to meet the stringent requirements of today's industrial processing fluid,by creating the best quality provide personalized service product value,and the principle of on time delivery,we gained good reputation.we pay attention to the customer's demand at all times.we deeply understand the customer's concern about the operation safety of products.You can contact us at any time by any way.
Globe Valve Feature
1, It’s a linear motion valve, general match with on-off type Multi-turn actuator.
2, Simple operation, is one of the most common on-off valve, which uses gate plate up and down movement to turn on and turn off the fluid medium in the pipe.
3, Widely used in electric power, metallurgy, petroleum, chemical, paper, sewage treatment and other industries.
Globe Valve parameters
design standard : GB/T12234
body material: cast steel
Drive mode: electric , pneumatic and manual
packing: Asbestos and flexible graphite
sealing face: alloy steel or hard alloy
nominal pressure: PN1.6~20.0MPa
medium: water,oil,steam etc
temperature: ≤425℃
Globe Valve Electric actuator data:
Voltage: 380V AC
Frequency: 50Hz
Type:On-off/Modulating
Input signal: switching value/4~20mA
Output signal: switching value/4~20mA
Fieldbus: Profibus
Over heat protection
Torque switch / limit switch
