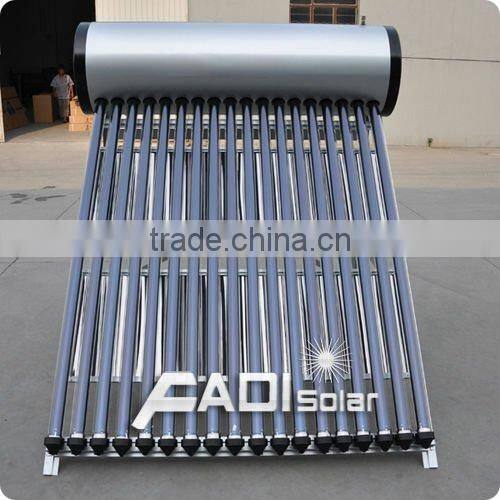

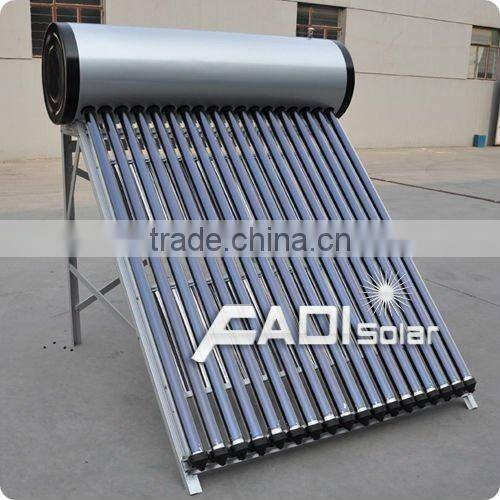

High Quality Solar Heater for Household /2.0mm thickness aluminum alloy frame (150L)

Specifications

Solar heater
.Competitive price and good quality
.CE,ISO9001
.5-15 years warranty
.24hours service

Solar heater details:
Model: FD-NAL58-18

How solar heater works
1. Solar heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes.
4. Through this circulation, the cold water in the water tank will be gradually heated.



Solar heater features
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Solar heater optional accessories
1. Assistant tank: 3/5/8/10/12/15/20L
2. Controller
3. Electrical heater: 1.5/2/2.5kw



Solar heater specification:

Description	solar heater
Material of out tank	0.31-0.4mm thickness color steel/ fluorine carbon steel
Material of inner tank	Food grade 0.31-0.4mm thickness SUS304 stainless steel
Tank insulating layer	55mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole	Male G 1/2, 3/4
Max pressure	0.05 Mpa
Solar collector tube	3.3 Borosilicate glass with N/Al coating
Thickness of glass tube	1.6 mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	as=0.93-0.96 (AM1.5)
Emission ratio	εh=0.04-0.06 (80C±5C)
Idle sunning property parameters	Y=220~260m2.C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2.C)

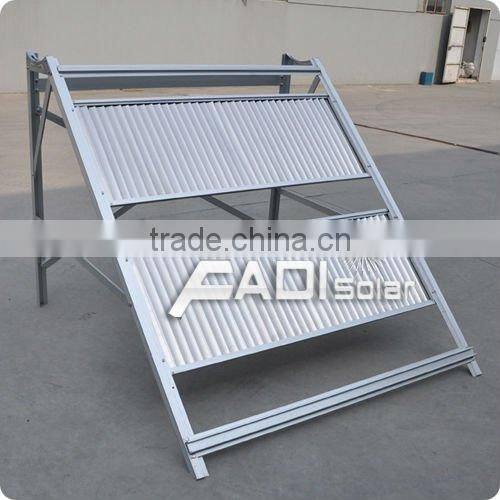

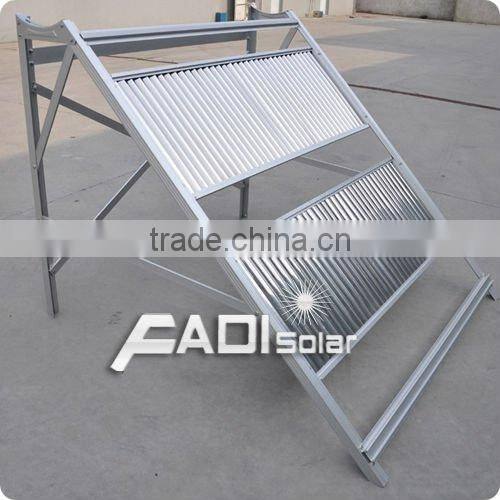

Bracket:	2.0mm thickness aluminum alloy frame
Structure of tank:	5 holes for air vent,overflow,water inlet and outlet,electric heater
Welding:	Argon arc  welding
Fastening pieces:	Made of stainless steel screw
Absorber area	1.875 m²
Tube quantity	18tube    58x1,800mm
Tank capacity	150L
