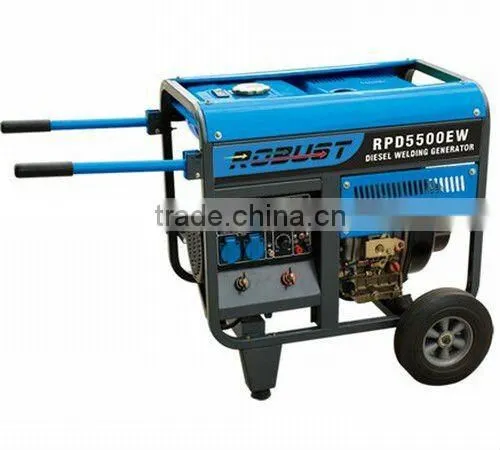

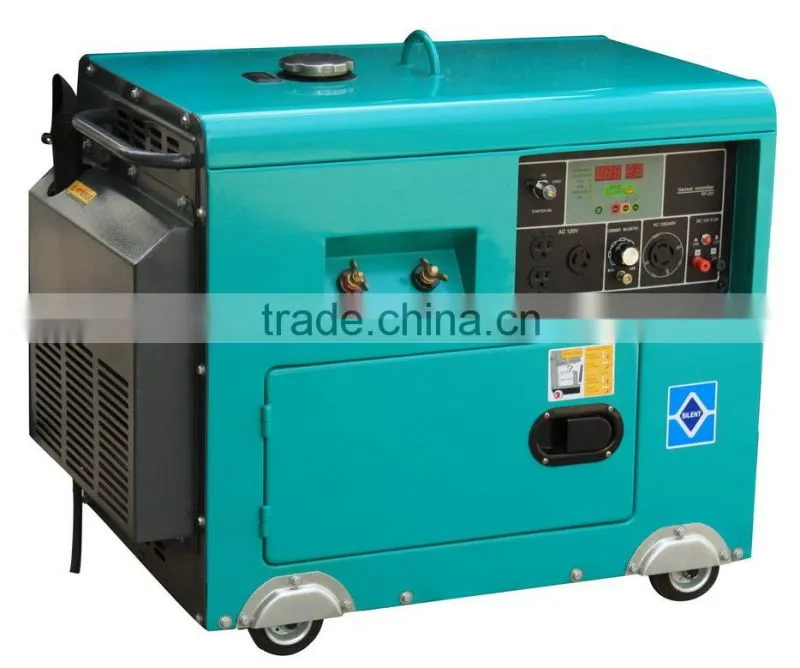

Mini Size Diesel Welding Generator
USD $99 - $9,999
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- Fuzhou
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Fujian, China | Brand Name: | Robust Power | Model Number: | RPD5500EW |
Output Type: | AC Single Phase | Speed: | 3000/3600RPM | Frequency: | 50/60Hz |
Rated Power: | 2.8/3 kw | Rated Voltage: | 120,220,230,240V |
Product Description
Specifications
The smooth arc is available for any welding15L fuel tank ensures 6.5 hours of continuous running
Non-stop electric arc
Model | RPD5500EW | ||
Generator | Rated Frequency(HZ) | 50 | 60 |
Rated Power(KW) | 2,8 | 3,0 | |
Rated Voltage(V) | 120,220,230,240,110/220,120/240 | ||
DC Output | 12V/8.3A | ||
Phase Number | Single | ||
Excitation Mode | Self-excitation and constant voltage | ||
Power Factor(cosØ) | 1 | ||
Welding voltage at zero load(DC)(V) | 60-65 | ||
Rated welding current DC(A) | 160 | ||
welding voltage(DC)(V) | 26 | ||
Welding load continuous ratio | 60% | ||
Rated current adjustment range(A) | 50-180 | ||
Electrode(mm) | 1.6-4.0 | ||
Engine | Engine Model | RP186FA | |
Bore xStroke(mm)/(inch) | 86×72 | ||
Displacement(cc) | 418 | ||
Engine Speed(RPM) | 3000 | 3600 | |
Fuel Consumption(G/KW·H) | 360 | ||
Fuel Tank Capacity(L/US.Gal) | 15 | ||
Continuous Running Time(HR) | 6.5 | ||
Starting System | Recoil or electric start | ||
Noise Level(dBA/7m) | 75 | ||
Unit | Net Weight(kg/lbs) | 110/242.5 | |
Dimension(L*W*H)(mm)/(inch) | 720×485×600 | ||
28.3×19.1×23.6 | |||
Packing(mm)/(inch) | 740×505×620 | ||
29.1×19.9×24.4 | |||
Container Qty(20FT/40FT/40HQ) | 102/213/284 |
