8t-30t/h portable asphalt mix plant

Specifications

8t-30t/h portable asphalt mix plant
ISO,CE,GOST
22 years producing experience
12 months warranty
Train your staff

8t-30t/h portable asphalt mix plant





About us:

As top10 portable asphalt mix plant manufacturer of China,Zhengzhou Dayu Machinery Co.,Ltd. established in 1992 and has been focused on portable asphalt mix plant producing for 22 years.

Main business scope:

Stationary Asphalt Mix Plant:

LB series:40t/h--400t/h.(Batch Mix Type)        DHB series:20t/h--100t/h.(Drum Mix Type)

Portable Asphalt Mix Plant:

MDHB series:20t/h--100t/h.(Drum Mix Type)        SLB series:8t/h--30t/h.(Drum Mix Type)

QLB series:10t/h--80t/h.(Batch Mix Type)

Concrete Batching Plant:

Stationary concrete batching plant:HZS series from 25m3/h--150m3/h.

Mobile concrete batching plant:YHZS series from 40m3/h--80m3/h.



Technical Parameters of SLB Portable Asphalt Mix Plant

Model		SLB-8	SLB-10	SLB-15	SLB-20	SLB-30
Capacity		8t/h	10t/h	15t/h	20t/h	30t/h
Power	Oil	23.7kW	24.3kW	33kW	46.5kW	60kW
	Coal	40kW	41kW	54kW	70kW	90.3kW
Aggregate batcher		2.3m3*3	2.3m3*3	2.3m3*3	2.3m3*3	5m3*3
Storage Bin		5t	5t	5t	5t	9t
Asphalt Temperature		120-180°C(adjustable)
Fuel consumption		Fuel Oil:5-7.5kg/t; Fuel Coal:13-15kg/t
Optional components		Aggregate batcher, Finished silo, Water filter, Bag filter, Control Room, Bitumen heating tank

Features of SLB Portable Asphalt Mix Plant

1.SLB portable asphalt mix plant integrated design of drying and mixing in drum, reduce initiate cost for clients;
2.Simple structure, easy operation, drying while drum rotate in counter clockwise direction(from burner),discharging while drum rotates in clockwise direction(from burner),and the wind are swirled in the center of the drum;
3.PLC control, touch screen, auto/manual switchable;
4.Towing chassis for easy transport and installation;
5.Burner is available oil and coal, at client's option.

Structure picture of SLB portable asphalt mix plant

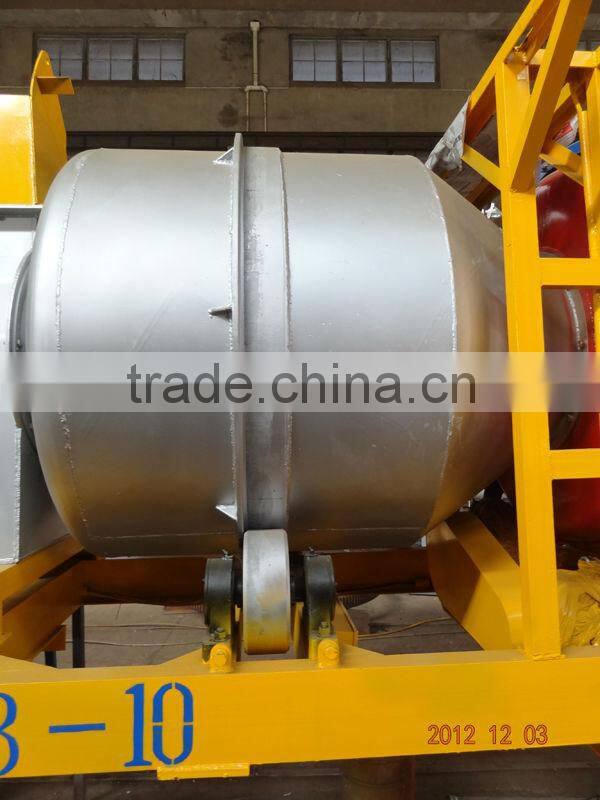

Drying drum of SLB portable asphalt mix plant

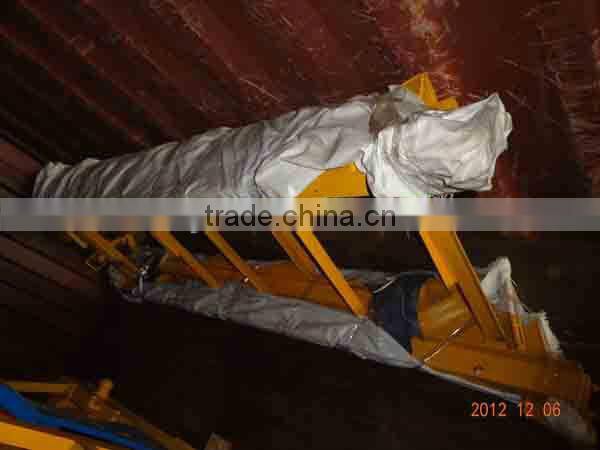

Container figure of SLB portable asphalt mix plant

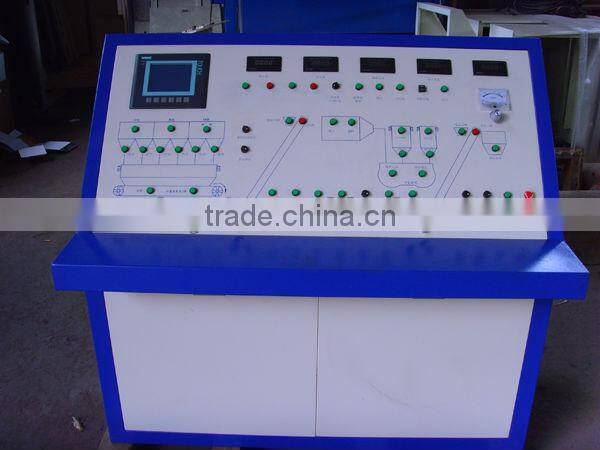

Control panel of SLB portable asphalt mix plant



Certificates of SLB portable asphalt mix plant
