Home > Products > PWM Solar Charge Controller > Remote set PWM 12/24V 20A IP67 IP68 Solar Charge Controller

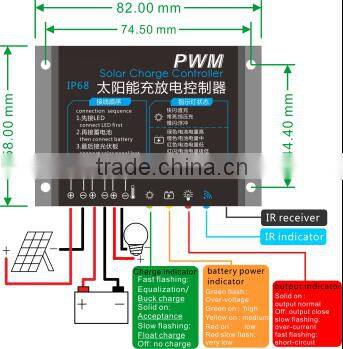

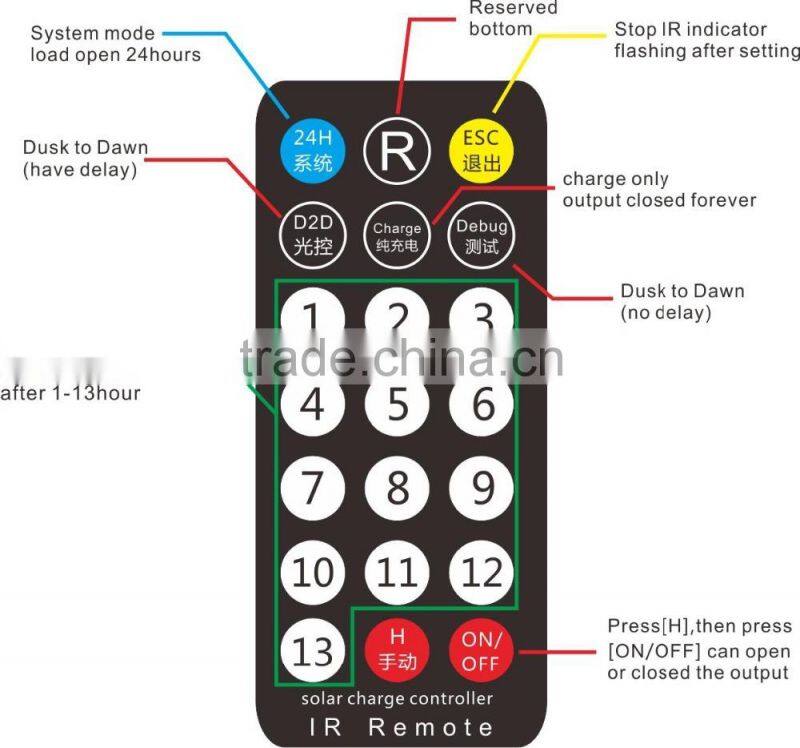

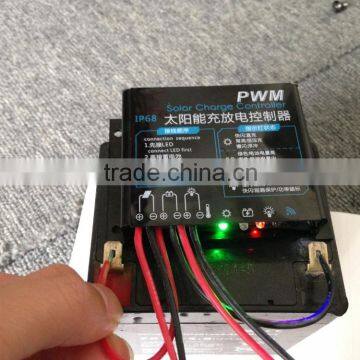

Remote set PWM 12/24V 20A IP67 IP68 Solar Charge Controller
- 10000 Unit / Units per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SUNSUN | Model Number: | SS1220R |
Application: | Charger Controller | Rated Voltage: | 12V | Maximum Current: | 20A |
Product Description
Remote set PWM 12/24V 10A IP67 IP68 Solar Charge Controller
MODEL/SS | 1205R | 1210R | 1215R | 1220R |
Batt voltage | 12V/24V auto adapt | |||
Charge current | 5A | 10A | 15A | 20A |
Discharge current | 5A | 10A | 15A | 20A |
Max Solar input | 41V | |||
Charge drop | <0.2V | |||
Discharge drop | <0.25V | |||
Equalization | 14.8V | |||
Bulk | 14.5V | |||
Acceptance | 14.2V PWM | |||
Float | 13.8V | |||
Charge reconnect | 13.0V | |||
Discharge stop | 11.2V | |||
Discharge reconnect | 12.6V | |||
Self-consume | <10mA | |||
Voltage of open light | Solar panel 8V(delay 10s) | |||
Voltage of close light | Solar panel 8V(delay 60s) | |||
Temperature compensation | N/C | |||
Operating temperature | -35~+60 ℃ | |||
Size/Weight | 82*58*21mm /135g |
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
Paper box;Pallet
PLEASE CONTACT US FOR MORE PRODUCT DETAILS!
