MDIY178 RFID UHF Inlay type 9720 with Alien H4 chip
- 500000000 Piece / Pieces per Month
- Chengdu/Shanghai/Shenzhen
- Credit Card
- MDIY179 RFID UHF Inlay type 9715 with Alien H4 chip
- MDIY180 RFID UHF Inlay type 9713 with Alien H4 chip
- MDIY181 RFID UHF Inlay type 9741 with Alien H4 chip
- MDIY182 RFID UHF Inlay type 9613 with Alien H3 chip
- MDIY183 RFID UHF Inlay type 9629 with Alien H3 chip
- MDIY184 RFID UHF Inlay type 9630 with Alien H3 chip
Product Details
Place of Origin: | Sichuan, China | Brand Name: | MIND | Model Number: | MDIY178 |
Product Description

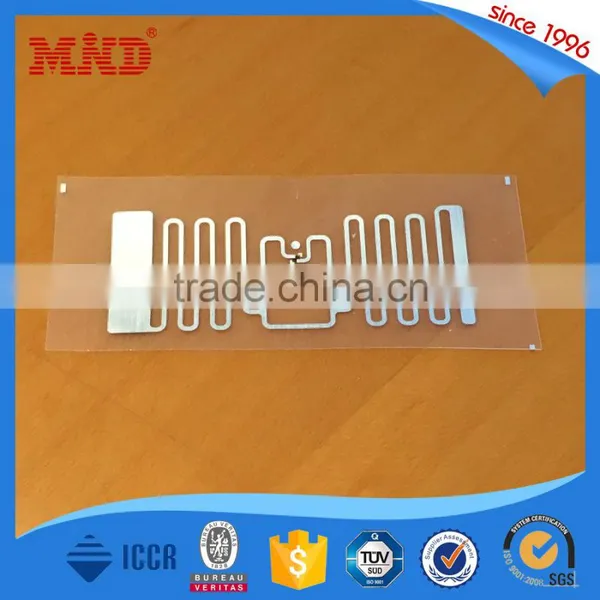

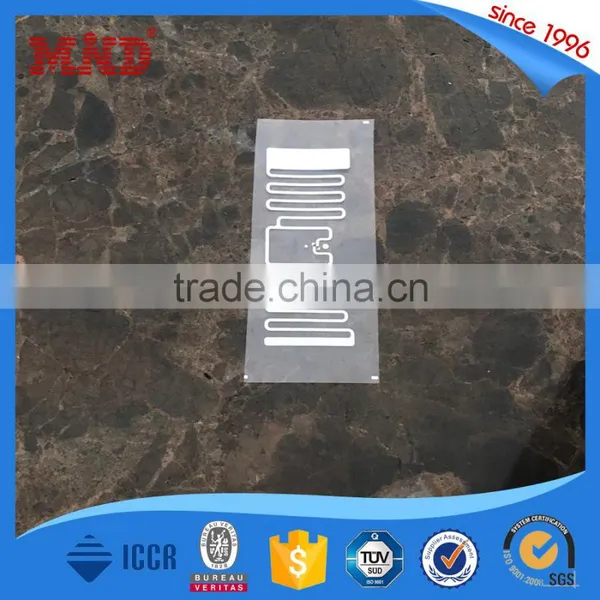

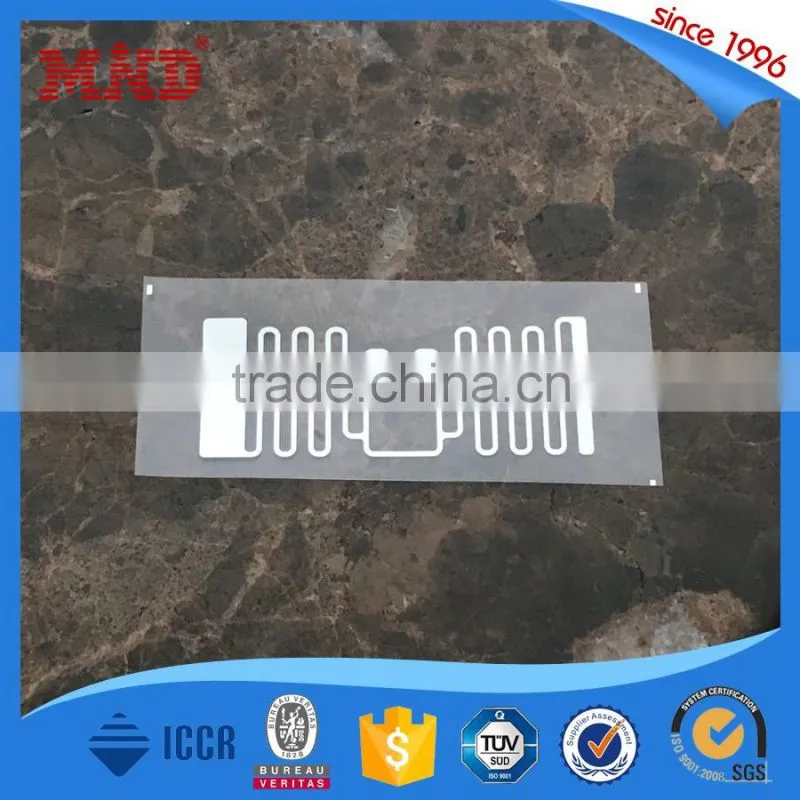

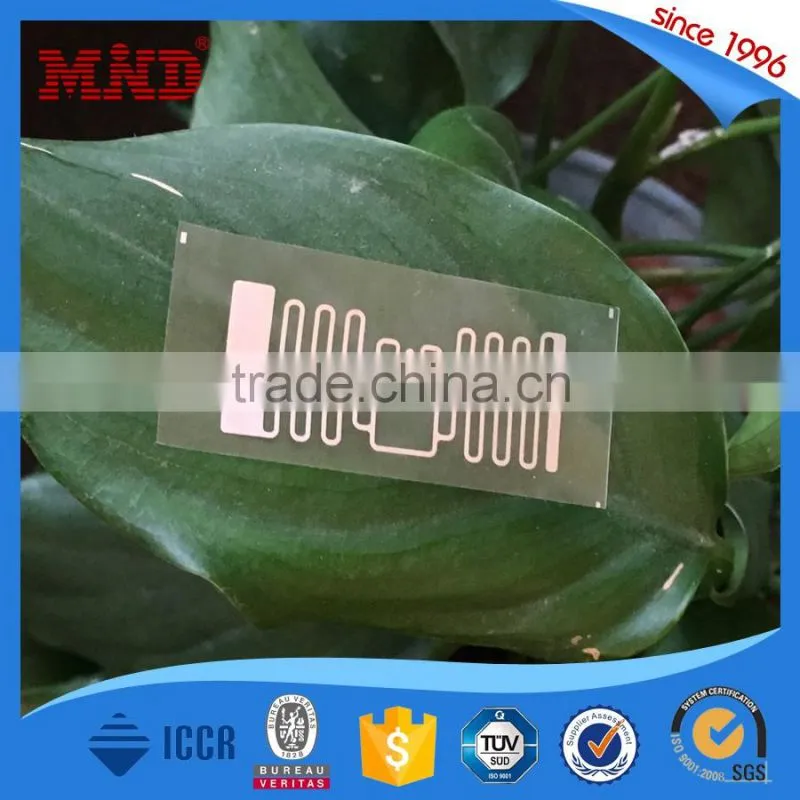

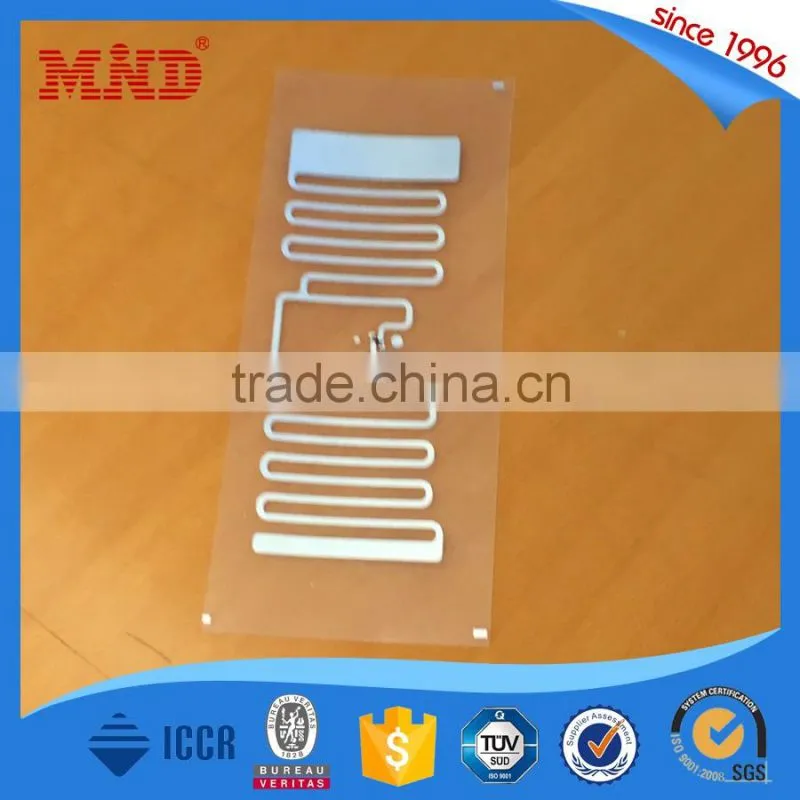

MDIY178 RFID UHF Inlay type 9720 with Alien H4 chip
Feature
1.customized
2.fast speed of delivery
3.RFID tag structure:RFID Chip+RFID Antenna+Housing Materials
fessional rfid products supplier
Product type | 9720 |
Air Interface Protocol | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
Operation Frequency | 860~960Mhz |
IC Type | Alien H4 |
Memory | EPC 96-480 bit, User 512 bit, TID 32 bit |
EPC Memory Content | Unique, randomized number |
Max Read Distance | >3 m (10 feet) |
Application Surface Materials | Glass, Plastic, Wood, Cardboard |
Tag Form Factor | Dry Inlay/wet inlay/White wet inlay(label) |
Tag Materials | TT Printable White Film |
Attachment Method | General Purpose Adhesive or enclose coated paper |
Antenna Size | 40*15.5 mm |
Weight | < 1 gram |
Operating Temp | -40° to +70°C |
Storage condition | 20% to 90% RH |
Applications | Assets management |
Reusable plastic pallets | |
Costume label | |
File management | |
Logistics management |
Alien distributor certificate
Kinds of Inlay/Sticker/Lable for your choice:
By Sea, by air and express, client can choose what you want!
Carton size:
Quantity | Carton Size | Weight(KG) | volume(cbm) | |
200 | 20*20*20cm | 0.5 | 0.008 | |
1000 | 25*25*20cm | 1 | 0.013 | |
2000 | 50*25*20cm | 1.5 | 0.025 | |
4000 | 50*50*20cm | 3 | 0.05 |
Established in 1996, Chengdu Mind IOT Technology Co.,Ltd has own factory with 20000 sqaure meters, specialized in the designing, manufacturing and selling of RFID products and PVC cards over 19 years.
Short delivery time for dozens of production lines as followings:
1. Warranty: 3 years
2. Free Replacement: If have inaccurate card within order, Chengdu Mind will provide free replacements.
3. On-time Delivery Guarantee: delay over 1 week, provide 2% free cards; delay over 2 weeks, provide 4% free cards.
Our Partners:
Many different main products for your free choice : NFC/RFID card, contact IC card, NFC Epoxy Tag, ABS key Fob, RFID wristband etc.
1. What about the warranty period
Two years without natural and man-made damage. We guarantee no worries for the after sale.
2. What about the delivery time?
Once we got payment or deposit, 5-6 working days for producing 1000-80000 pcs cards.
3. What about the sample testing?
Free Sample (Existing sample) for testing before client place full order.
4. Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/PVC cards in China over 19 years.
5. What about the payment and shipment?
You can pay with T/T, Western Union, Paypal, Credit card etc.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)
Application
1) Mobile wallet (mobile payment)
2) Amusement management.(swimming pool, fairground etc.)
3) Access Control System
4) Electronic ticket vending machines
5) Parking system
6) Personnel identification and exchange
etc......
