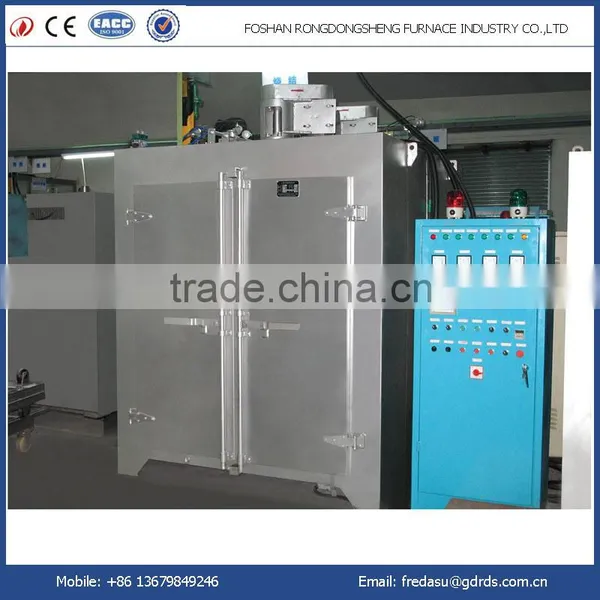

650 degrees C box type hot blast circulation tempering furnace
- 50 Set / Sets per Month
- Guangzhou
- T/T Credit Card
Product Details
| Condition: | New | Type: | Resistance Furnace | Usage: | Other, Heat Treatment Furnace, tempering, annealing, hardening |
| Place of Origin: | Guangdong, China | Brand Name: | rong dong sheng | Model Number: | RX2-10-6 |
| Voltage: | 380V | Power(W): | 10kw | Dimension(L*W*H): | 500*500*500mm |
| Weight: | 2T-35T | Certification: | CE & ISO | Warranty: | 1year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
B650 degrees C box type hot blast circulation tempering furnace
This series of electric furnaces is intermittent operation furnaces which can be used in normalizing, annealing, quenching, tempering, hardening and other heat treatments of carbon steel, alloy steel, high-speed steel and other metal parts. Organic liquid can be dripped into cracking atmosphere of the furnace to realize little-oxidizing heating.
Characteristics of chamber furnace :
1.Adopt mixed furnace lining of ultra-light refractory bricks (0.6/cubic meter) and ceramic fiber, greatly shortening starting heating time and extraordinarily saving energy up to 20%-30%.
2. Specially-designed furnace door and roller sealing, and built-in heating wire ensure excellent furnace door sealing and uniform furnace temperature.
3. Double-thermocouple control: one thermocouple is for testing furnace temperature, and the other one is for over-heat protection.
4. The furnace is equipped with interlock protection device, which can prevent Failure and accident due to misoperation.
5. Adopt intelligent digital temperature-control system, which feature clear reading, conveniently adjusted, high temperature control precision, easy structure, safe and reliable.
Applicable for normalizing and quenching of metal parts: light refractory brick and refractory fiber are used as furnace lining to ensure excellent sealing and extraordinary energy saving. For heat treatment of high-grade alloy steels and metal sintering and melting heating
Name | Model | Rated Power (kw) | Rated Voltage (V) | Rated Temperature (centigrade) | Phases | Hearth Size |
Box-type Resistance Furnace | RX3-15-9 | 15 | 380 | 950 | 3 | 650*300*250 |
RX3-30-9 | 30 | 380 | 950 | 3 | 950*450*350 | |
RX3-45-9 | 45 | 380 | 950 | 3 | 1200*600*400 | |
RX3-60-9 | 60 | 380 | 950 | 3 | 1500*750*450 | |
RX3-75-9 | 756 | 380 | 950 | 3 | 1800*900*550 | |
RX3-20-12 | 20 | 380 | 1200 | 3 | 650*300*250 | |
RX3-45-12 | 45 | 380 | 1200 | 3 | 950*450*350 | |
RX3-65-12 | 65 | 380 | 1200 | 3 | 1200*600*400 | |
RX3-90-12 | 90 | 380 | 1200 | 3 | 1500*750*450 | |
RX3-115-12 | 115 | 380 | 1200 | 3 | 1800*900*550 | |
RX3-14-13 | 14 | 380 | 1350 | 3 | 520*220*220 | |
RX3-25-13 | 25 | 380 | 1350 | 3 | 600*280*300 | |
RX3-37-13 | 37 | 380 | 1350 | 3 | 810*550*370 |
For heating, aging and tempering of moulds and steel parts in petrochemical industry, medical service and laboratory.
Feature: siliceous alumious fiber cotton is pressed on insulating layer and furnace bottom and the whole set of device has no refractory brick. It features fast temperature rise and excellent heat preservation.
Name | Model | Rated Power (kw) | Rated Voltage (V) | Rated Temperature (centigrade) | Phases | Hearth Size |
Box-type Resistance Tempering Furnace | RX2-6-3 | 6 | 380 | 300 | 3 | 500*350*350 |
RX2-7.5-3 | 7.5 | 380 | 300 | 3 | 500*500*500 | |
RX2-10-3 | 10 | 380 | 300 | 3 | 600*500*500 | |
RX2-12-3 | 12 | 380 | 300 | 3 | 700*600*500 | |
RX2-15-3 | 15 | 380 | 300 | 3 | 700*700*500 | |
RX2-7.5-6 | 7.5 | 380 | 600 | 3 | 500*350*350 | |
RX2-10-6 | 10 | 380 | 600 | 3 | 500*500*500 | |
RX2-15-6 | 15 | 380 | 600 | 3 | 600*500*500 | |
RX2-20-6 | 20 | 380 | 600 | 3 | 700*600*500 | |
RX2-25-6 | 25 | 380 | 600 | 3 | 700*700*500 |
For quenching, anealing, tempering and other heat treatments of chemical analysis and research of R&D institutions and industrial and mining enterprises, etc.
Name | Model | Rated Power (kw) | Rated Voltage (V) | Rated Temperature (centigrade) | Phases | Hearth Size |
Laboratory box-type Furnace | SX2-2.5-10 | 2.5 | 220 | 1000 | 1 | 200*120*80 |
SX2-3-10 | 3 | 220 | 1000 | 1 | 275*150*100 | |
SX2-4-10 | 4 | 220 | 1000 | 1 | 300*200*120 | |
SX2-8-10 | 8 | 380 | 1000 | 3 | 400*250*160 | |
SX2-12-10 | 12 | 380 | 1000 | 3 | 500*300*200 | |
SX2-2.5-12 | 2.5 | 220 | 1200 | 1 | 200*120*80 | |
SX2-5-12 | 5 | 220 | 1200 | 1 | 300*200*120 | |
SX2-10-12 | 10 | 380 | 1200 | 3 | 400*250*160 | |
SX2-12-12 | 12 | 380 | 1200 | 3 | 500*300*200 | |
SX2-4-13 | 4 | 220 | 1300 | 1 | 200*120*80 | |
SX2-6-13 | 6 | 380 | 1300 | 1 | 275*150*100 | |
SX2-8-13 | 8 | 380 | 1300 | 3 | 300*150*120 | |
SX2-10-13 | 10 | 380 | 1300 | 3 | 400*200*160 | |
SX2-12-13 | 12 | 380 | 1300 | 3 | 500*200*180 |
1.Why we choose RongDongSheng ?
We are professional manufacturer of electric resistance heat treatment furnace located in Foshan city of Guangdong province , Which has over 18 years experience produce furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
2.Have you exported machine to overseas market ?
Yes . We has exported machine to Thailand, Malaysia , Pakistan , India, Vietnam , Indonesia, Laos, Africa , South Africa , Iran , etc.
3.Is there any quality warranty and after service ?
The warranty period of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.
4.If there are broken of your machine and spare parts , what should I do ?
In case of any failure occurred in the warranty period, damaged parts to be replaced shall be offered free of charge . we providelifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.
