Economic type cake or bread oil on paper roll cutting machine
- 30 Set / Sets per Month
- NINGBO / WENZHOU / SHANGHAI
- T/T Credit Card PayPal
- Computerized 2 rolls loading paper roll to sheets cutting machine
- Non woven bag handle ultrasonic embossing and cutting machine
- DC-A1100 High speed Computer control paper Roll to Sheet Cutting Machine
- Computer Control Cross Cutting Machine For Non Woven and Film
- Computer Non woven roll embossed - punched - sheets cutting machine
- Computer non woven bag embossed cutting machine
Product Details
Condition: | New | Type: | Paper Cutting Machine | Computerized: | Yes |
Place of Origin: | Zhejiang, China | Brand Name: | DONGCHEN | Model Number: | DC1000 |
Voltage: | 380/220v 3 phase | Power(W): | 15kw | Dimension(L*W*H): | 2300*1800*1400mm |
Weight: | 1000kg | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
WHY US?
The Quality We Provide - Outstanding Quality Assurance
Control from production process:
•We don’t send mechanical parts out for pretreatment, all process would be supervised under inspection
department, we have 4sets CNC processing machine.
•7 stages pretreatment meet international standard
•Baking at high temperature after power coating to ensure the paint finish
Control from material:
•All bolts and screws are of SS material
•Mild steel ERW rectangular tubes or sheets 1.2-2.0mm thickness, meet EU standard
•Plastic material is of ABS only. Durable and Sturdy. At least 10 years lifetime. Different colors for options.
Control from inspection:
•Process inspections after cold working, acid washing,powder coating and assembling
Final inspection before loading in random checking
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed.
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We respond your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team
For machine services:
1.Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.We can train your staff to use new equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity in the condition of salary 80USD per day,also including the charge for transportation,accomodation,etc.

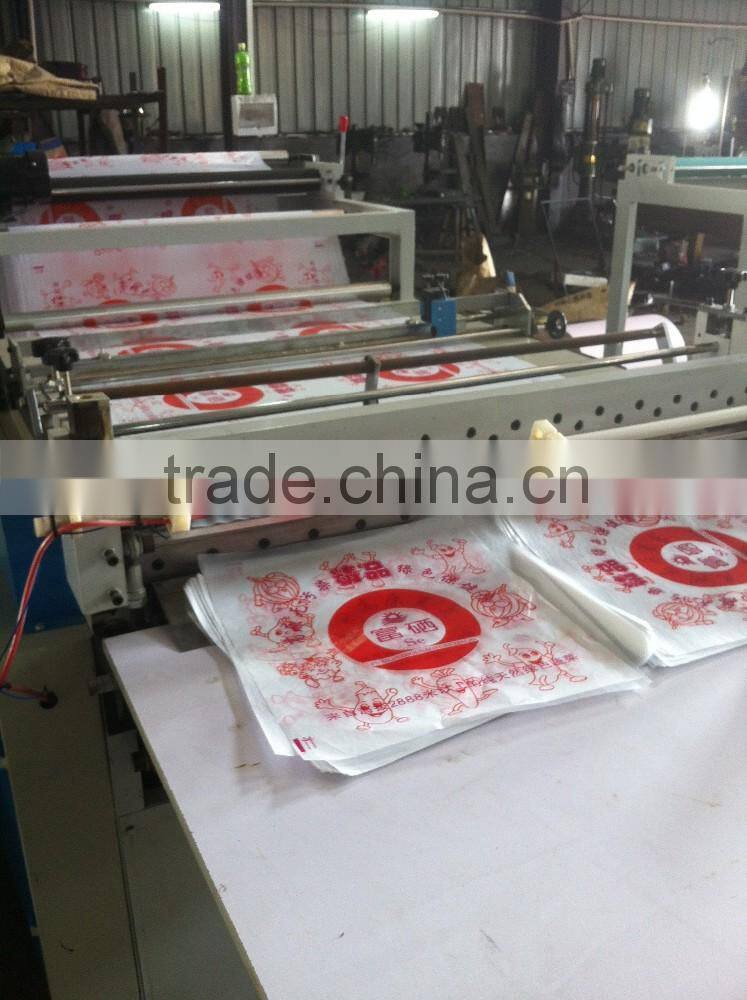

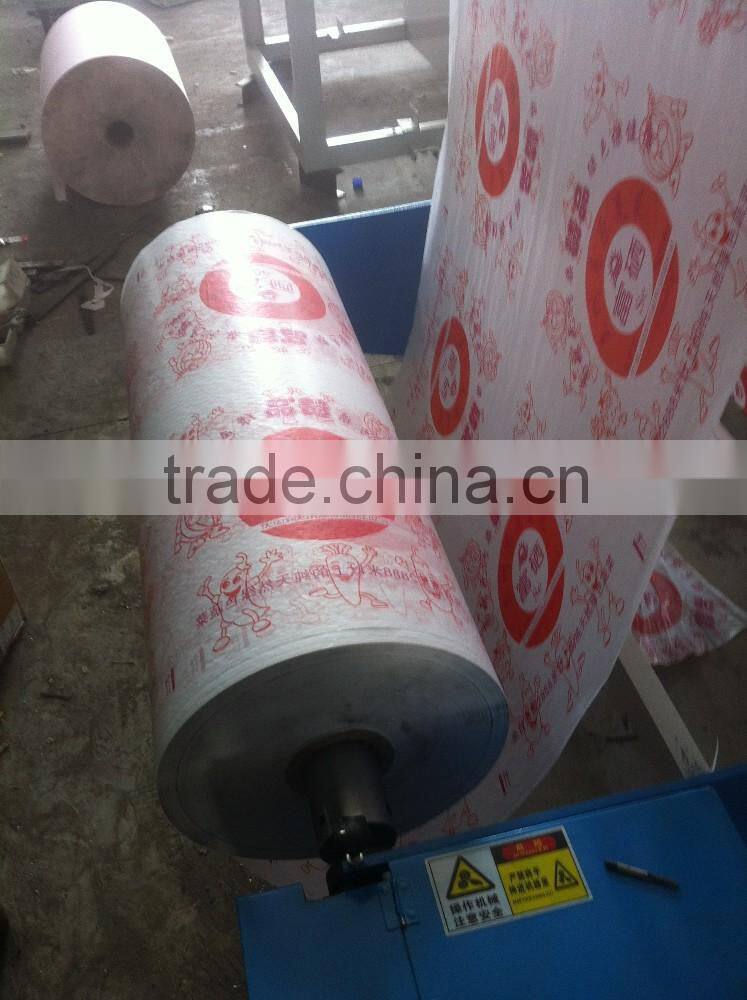

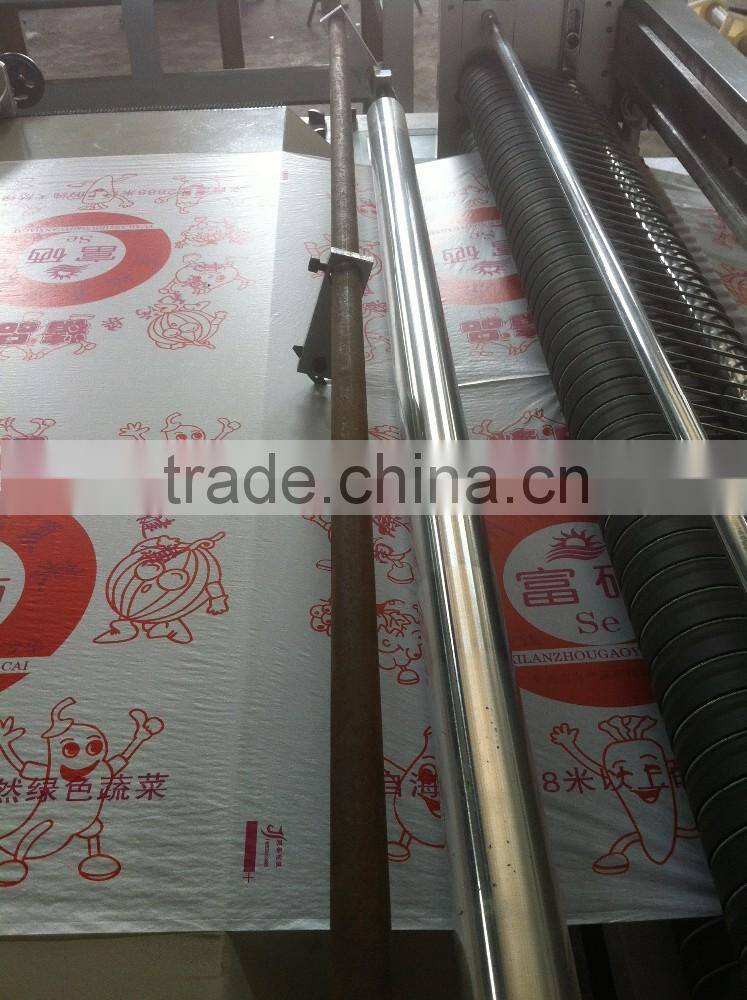

Economic type cake or bread oil on paper roll cutting machine
Usage:
This machine is suitable for PVC, non woven roll, gold-silver paperboard, plain rainbow paper, the positioning laser transfer paper, white paper, plastic sheet and roll materials. Applied PLC system to control electrical system. Man-machine controlling system, digital display; fixed-length control stepper motor system control, automatic identification standard photoelectric switch imported to ensure the accuracy of the truncation. Advanced machine control mode, controlling the speed of the main motor, imported stepper motor, feeding motor through the computer to achieve synchronous operation.
Main parameters:
Model | 600 | 800 | 1000 | 1200 | 1400 |
Width | 100-500mm | 100-700mm | 100-900mm | 100-1100mm | 100-1300mm |
Length | 30-1500mm | ||||
Thickness | Plastic film 0.01-0.5mm non woven10-300g paper 10-450g | ||||
Speed | 50-150pcs/min | ||||
Precision | ±0.2-0.5mm | ||||
Power | 2.2kw | 2.5kw | 3kw | 3.5kw | 4kw |
Machine weight | 800kg | 900kg | 1000kg | 1200kg | 1300kg |
Machine dimension | 3200*1300*1500mm | 3500*1500*1500mm | 3800*1700*1500mm | 3800*1900*1500mm | 3800*2100*1500mm |
Main Specification:
No. | Name | Quantity(PCS) | Origin | Brand |
1 | Computer (PLC touch screen) | 1 | Wuxi | Hailida |
2 | Inverter | 1 | Taizhou | Hualan |
3 | Main motor | 1 | Shanghai | Lichao |
4 | Feeding motor | 1 | Wuhu | Wuhu |
5 | Air shaft | 1 | Ruian | Gongkong |
6 | Pneumatic loading | 1 | Ruian | Dongchen |
7. | Magnetic powder | 1 | Ruian | Zhongkong |
8 | Web guiding | 1 | Ruian | Dongchen |
