Factory price PLC control chocolate paste packing machine

FOB Price

USD $13,000 - $19,000 / Set

1 Set(Min.Order)

Supply Ability 8 Set / Sets per Month
Port Ningbo/Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Application:	Food, Other, Food, butter /honey/jam	Automatic Grade:	Automatic
Driven Type:	Other, Electric and Pneumatic	Voltage:	3 phase , 380 VAC , 50 Hz	Power:	4kw
Place of Origin:	Zhejiang, China	Brand Name:	JINDE	Model Number:	JDPP-140P
Dimension(LWH):	2300 x820x1900mm	Weight:	1100kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

chocolate paste packing machine
1. CE, GMP
2. PLC control
3.Automatic feeding
4.Small ,low price

chocolate paste packing machine

Feature:

1. This machine is suitable for packing the liquid like chocolate, butter ,honey and jam etc.

2. PLC Touch Screen control system

3. Printed mark controller (GC register)

4.All material contact parts are in S.S. 316 L. The main body of the machine is fabricated out of SS 304.

5. The printing Net weight, Lot number, Prod. date and Exp. date are by steel character on the bottom of every blister (package)

6.Safety cover while open the machine and stop it as the CE required (sealing/cutting part), aluminum alloy and organic glass as material

7. This machine can be linked to produce with boxing machine and pillow packing machine

Working process:

PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic liquid feeding —— PE/ALU foil/paper card sealing —— Printing batch —— Cutting —— Products output

Main Technical Parameter

Equipment model and specification	JDPP 140P
Machine weight	Machine weight:1100Kg tank weight: 60 Kg
Overall dimension	Machine size: 2300 x820x1900mm Tank size: 850x500x500 mm
Total Power	4 Kw
Zero air pressure(MPA)	0.5-0.7
Power supply	3 phase , 380 VAC , 50 Hz
Punch frequency	15 ~ 25 time/min
Packing efficiency	3,600 ~ 6,000 plate/h
Max. forming area and depth	140 x 100 x 18mm
Adjustable range of stroke	30 ~ 110 mm
Air compressor	≥ 0.22 m³/min (self-prepared)
Specification function	Automatic feeding system, Emergency stop function: when an emergency stop is pressed. the machine stops safety and can only be restarted by resetting the machine controls, Print registration.
Control system	PLC, Touch screen, with communication port.
Criterion	Conform to GMP standard CE certificate

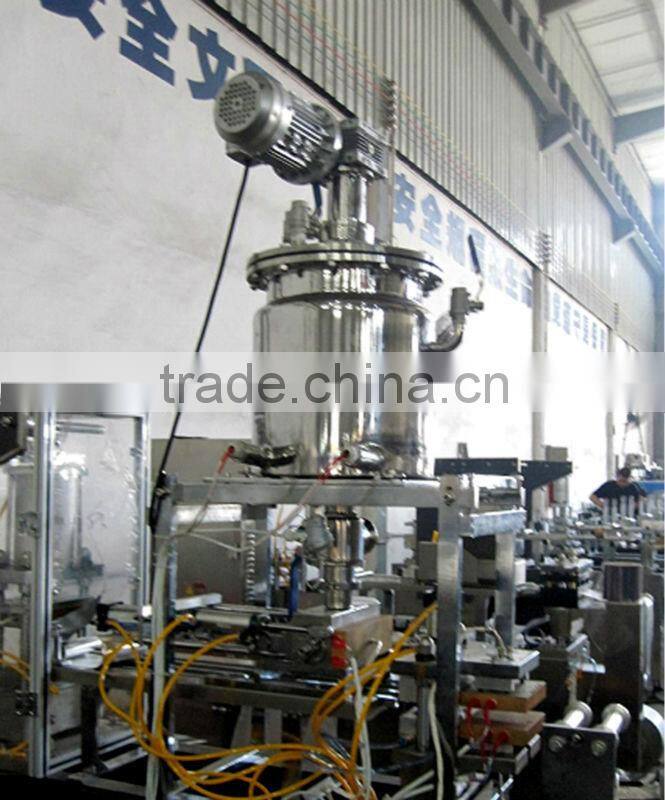

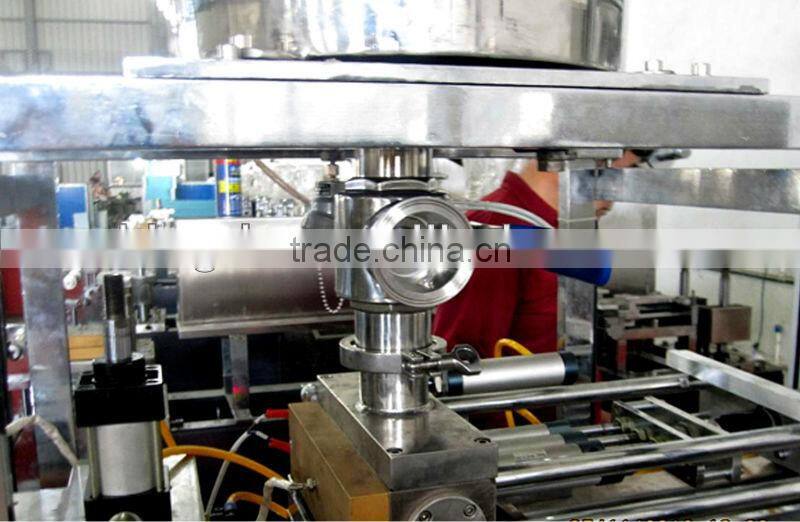

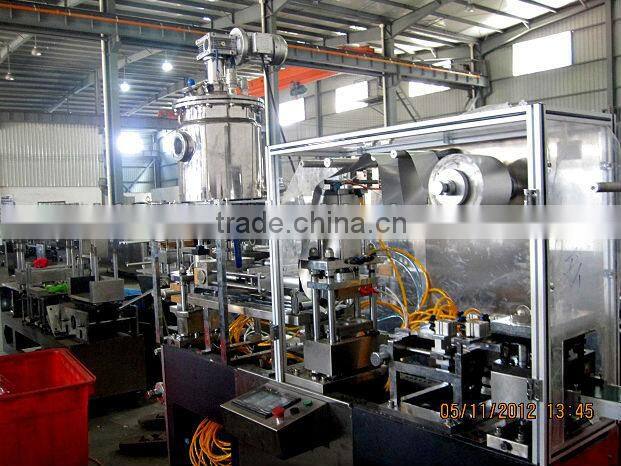

Some Part of this Machine:

Samples:
