Specifications

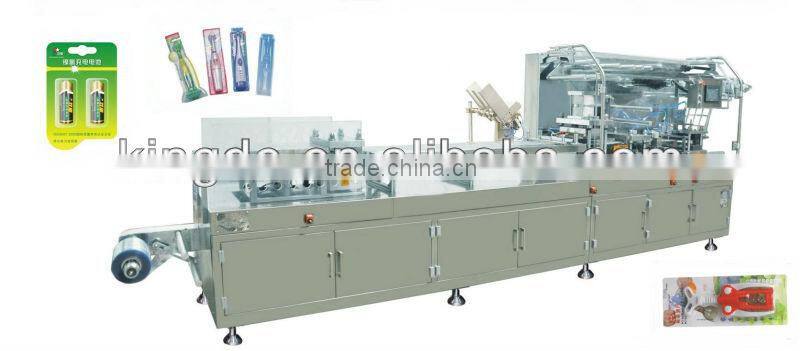

pencil packing machine1. CE, GMP
2. PLC control
3. Double program
4. Easy Changeover
pencil packing machine
Usuage:
Suitable for packaging with paper and plastic in the industrial of hardware, medical equipment, toys, battery, electronic products, auto parts, cosmetic ,rubber products, dinnerware, kitchen ware.
For example :
the injection, syringe, toy car, flashlight, spark plug, toothbrush , lipstick ,facial mask, chopsticks, shaver, correction fluid , ball pen, medicine and so on.
Working process:
PVC roll——PVC heating——PVC forming —— Automatic cooling —— Servo traction—— Automatic feeding (Hand-feeding) —— Feeding and inspecting cardboard —PE/ALU foil/paper card sealing —— Punching a hole —— Cutting —— Products output
Main Technical Parameter
Punching Frequency | 20time/min |
Adjustable Scope of Travel | 30-210 mm |
Max Forming Depth | 35-43mm |
Max Forming Area | 340x220 mm |
Total Power | 380V 50Hz 5.5Kw |
Specificationa of Packing Material(PVC) | 350x0.25(0.15~0.50mm) |
Specificationa of Packing Material(PTP) | 350x0.02mm |
Air-compressor | More Than 0.22m3/min |
Pressure | 0.5~0.7Mpa |
Machinery Dimension | 5300x1000x1900mm |
Weight | 3500Kg |
Some Part of this Machine:
Blister forming
Suck paper
Output
Mould
Samples
We hope to have the opportunity to invite you join our customer team. We will do our best to serve you!
