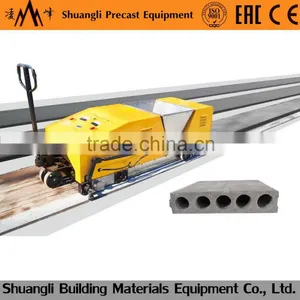

Prefab Cement Lightweight Partition Wall Panel Making Machine
- 52 Set / Sets per Month
- QINGDAO OR TIANJIN
- T/T
-
Prefab Cement Lightweight Partition Wall Panel Moulding Machine
-
Concrete Lightweight Wall Panel extruder Machine/Block making machine
-
precast lightweight concrete wall panel forming machine concrete lightweight hollow core wall panel machine
-
precast lightweight concrete wall panel forming machine concrete lightweight wall panel machine
-
precast lightweight concrete wall panel forming machine lightweight concrete wall panel machine
-
precast lightweight concrete wall panel forming machine lightweight wall panel machine
Product Details
| Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Concrete |
| Processing: | Brick Production Line | Method: | Vacuum Extruder | Automatic: | Yes |
| Capacity: | 70~75m/h | Place of Origin: | Shandong, China | Brand Name: | Shuangli |
| Model Number: | SL 90*600 | Voltage: | 220V/380V | Power: | 5.2KW |
| Dimension(L*W*H): | 2060*1730*2580mm | Certification: | ISO9001 | Warranty: | One Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wodden case package for the Prefab Cement Lightweight Partition Wall Panel Making Machine
Product Description

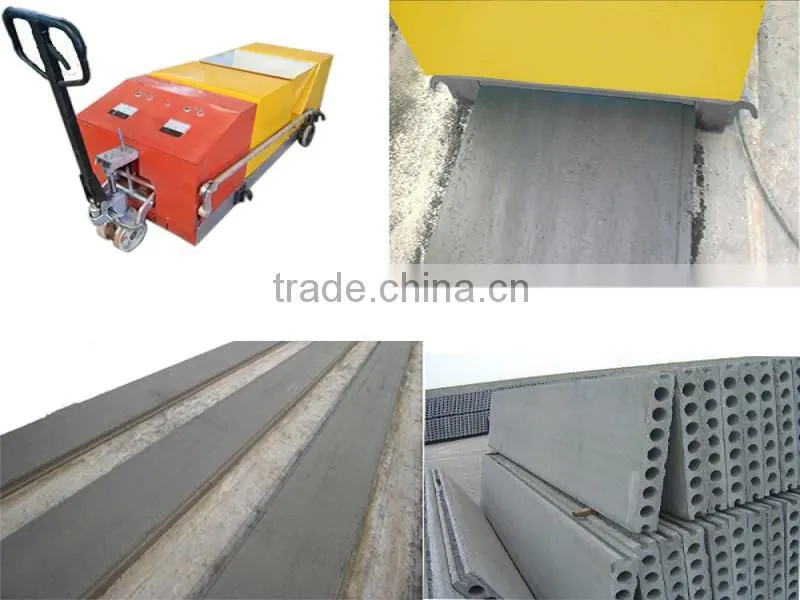

Prefab Cement Lightweight Partition Wall Panel Making Machine
Main Features for the Prefab Cement Lightweight Partition Wall Panel Making Machine
| Materials: The extruder could use different kinds of light weight materials, such as cement, sand, fly ash, slag(cinder), ceramsite (haycite), pearls tone, etc. |
| The spare parts such as tubes, side plate, are welded with first-class YG alloy, greatly improved the anti-fraying ability. |
| 2~3mm steel wires are put inside the panel before producing. |

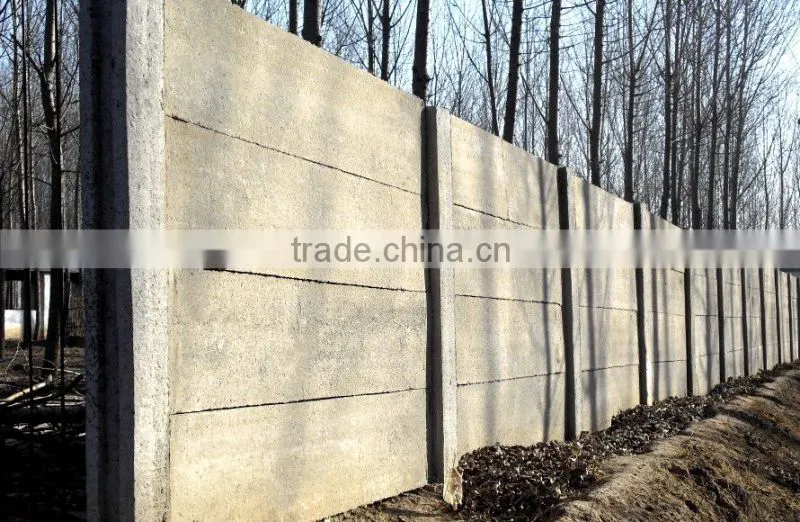

| The finished panels could be used as fence panel, interior wall panel, and exterior wall panels too. |
| SL Brand HQJ Lightweight Wall Panel Extruder is awarded with certificate of utility model patent with the patent No.: ZL 2014 2 0069954.3. |
Regular Lightweight Wall Panel Machine Models
Model | width (mm) | thickness (mm) | Holes Dia | Speed (m/min) | Motor Power (KW) | Vibrator (KW) | Dimension (m) | Weight (kg) |
80*600 | 595±2 | 78±1 | 8xΦ43 | >=1.6 | 4 | 0.8 | 2.5*0.95*0.75 | 1260 |
90*600 | 595±2 | 88±1 | 7xΦ58 | >=1.6 | 5.5 | 0.8 | 2.5*0.95*0.70 | 1260 |
100*600 | 595±2 | 98±1 | 7xΦ62 | >=1.6 | 5.5 | 0.8 | 2.5*0.95*0.75 | 1400 |
120*600 | 595±2 | 118±1 | 5xΦ82 | >=1.6 | 5.5 | 0.8 | 2.55*0.95*0.75 | 1650 |
150*600 | 595±2 | 148±1 | 4xΦ100 | >=1.6 | 5.5 | 0.8 | 2.65*1.0*0.8 | 1650 |
200*600 | 595±2 | 198±1 | 3xΦ145 | >=1.6 | 7.5 | 3 | 2.65*1.0*0.85 | 1680 |

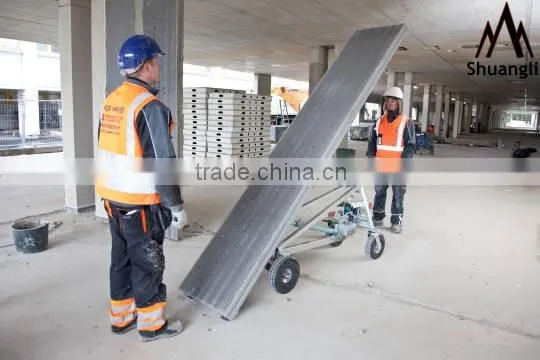

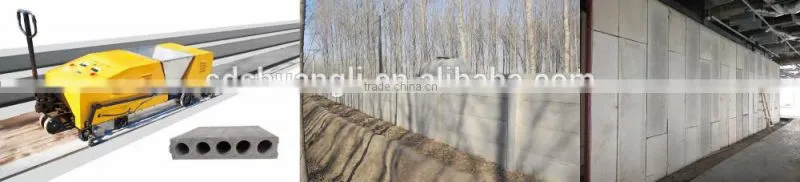

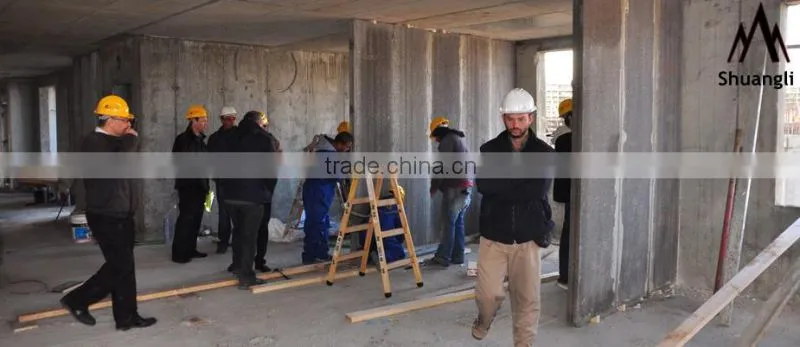

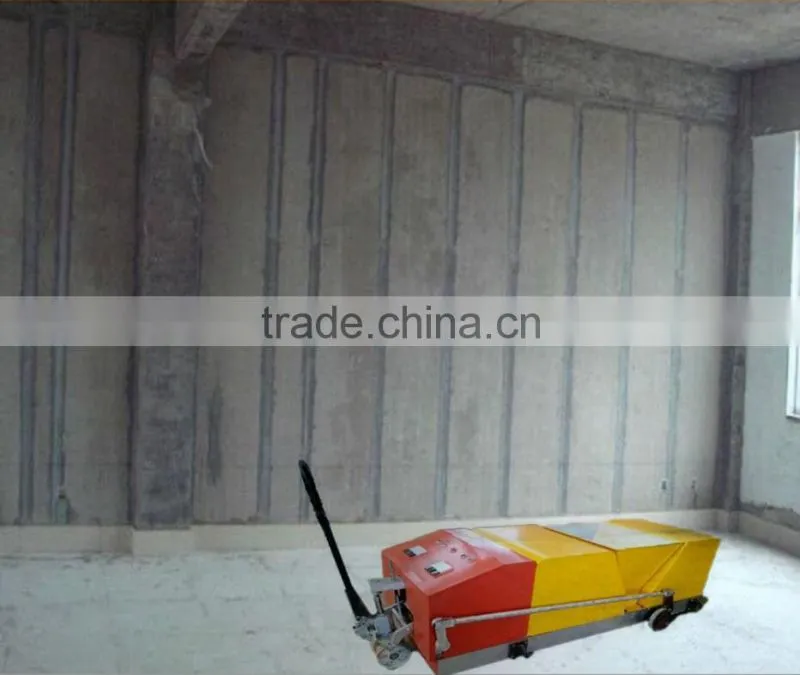

Applications for the concrete lightweight wall panels
SL(Shuangli) Building Materials Equipment Co., Ltd was founded in 1995, located in Dezhou, Shandong, China.
Our main products are hollow core slab extruder, lightweight wall panel extruder/mold, concrete fence post extruder, concrete lintel/beam/pillar extruder, etc. Technically, we could manufacture extruder for all the precast concrete products. All you have to do is let us know your exact requirement with details.
We’ve been helping with large national and civil architecture project with our newest precast technology and reliable experienced workers.
The Best Supplier Concrete Lightweight Wall Panel Forming Machine
Company Profile
Location---Ningjin county Shuangli Building Materials Machinery Factory was founded in 2005, locates in Dezhou, Shandong, China.
Strength---We have plenty of professional workers and over 20 years manufacturing experience, which make sure our products are easy to operate, and extremely durable.We offer our customers 100% reliable quality and lifelong warrenty.
Variety ---We provide nearly 40 kinds of Hollow Core Slab Making Machine,which is the best of nothern China.
We also produce all kinds of Hollow Core Slab Forming Machine, Concrete Column Machine, Lightweight Wall Panel Making Machine, Concrete Panel Machine, Concrete Mixer, Concrete Lintel/ purline/ column machine, etc.
Principle of Operation---The work method of our machine is pushing and vibration.
Use of Machines---Cement Products can be used to build civil houses and low-rise building construction.
Sales History--- Our machines have been sold to over 20 provinces in China and exported to over 20 countries such as Bangladesh, Nigeria, Malaysia, India, Russia, Myanmar, Iraq, etc.
Reputation---We were rewarded with the Utility Model Patent Certificate, and appraised as the Honest Enterprise.
Services--- Different kinds of concrete prefabricated construction material machine can be manufacturered here according to customers' special requirements.
We could also provide you with Lifetime Warranty.
