Flour milling machinery small scale corn processing plant with best price,corn mill machine
- 100 Set / Sets per Month
- Tianjin
- T/T
-
Better Hot Sell Domestic Flour Mill Equipment Flour Milling Equipment Low Price
-
China supplier automatic wheat/corn/maize/teff/rice/barley/grain flour milling machine plant/ flour mill machine with price
-
30T/D flour mill with small horizontal milling machine
-
low cost ss corn flour milling plant & industrial grain mill
-
wheat flour grinder,wheat miller,wheat/corn flour mill
-
industrial wheat mill,stone mill maize,stone flour mill for sale
Product Details
| Condition: | New | Place of Origin: | Hebei, China | Brand Name: | HBJG |
| Model Number: | 6FTF or 6FYTP | Production Capacity: | 10-500ton per 24hours | Voltage: | 380V, 50HZ |
| Power(W): | 50kw~1700kw | Weight: | 7T~370T | Dimension(L*W*H): | Varied |
| Certification: | iso9001 | Warranty: | one year spare parts for free | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Flour milling machinery small scale corn processing plant with best price,corn mill machine
Specifications
1.Turnkey project
2.customized design
3.stable performance
About us:
Hebei JIng Gang Machinery Co,. Ltd is a manufacturer of 5-500ton complete set flour mill plant, which designed with a compact structure, steel stucture or storey style, is easily installed and operated, requires a low initial investment.
Advantage
| 1 | We provide turnkey project. |
| 2 | Design according to clients' requirement. |
| 3 | Advanced technology and reliable quality. |
| 4 | Steel structure or floor structure. |
| 5 | Dust-free design with low power consumption. |
| 6 | Professional engineers will be responsible for installation in the local market. |
| 7 | Best after-sale service. |
Processing line
Complete set of wheat flour machine can be divided into four parts: cleaning part, milling part, packing part:
1. Cleaning part
to clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator and dampening. This section is to prepare for milling part and to protect the machinery as well.
2. Milling part
The second step, to mill the grain and separate the flour, bran and other by-product:
(1) Mill: mill the grain to break the integrity by the roller moving
(2) Sifter: to separate the flour, bran and other by-product, also separate large size and small size to ensure flour quality.
3. Packing part
The third step, the packing machine can be manual or automatic weighting and packing.
4. PLC controlling system
To controlling the whole set of machinery to work well and showing the process of working.
Single machines are equipped with
flour cleaning section
flour milling section
pipes
flour packing part
Our factory

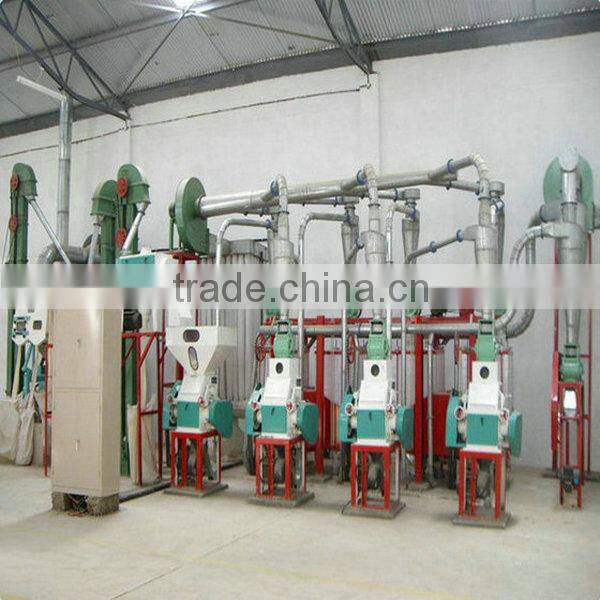

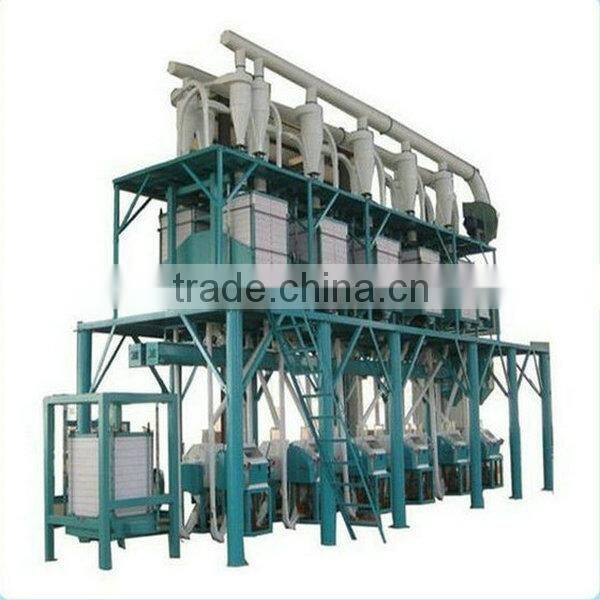

The whole different capacity processing line
20-30ton maize flour mill
| Model | 6FYDT-20 |
| Capacity (T/24h) | 15- 20ton |
| Extraction rate (%) | corn flour 40-50% corn grits 35-40% corn bran,coarse fodder:10-12% |
| Power (kW) | 80 |
| Size of workshop:(L×W×H) | 18*5*4.5m |
50ton wheat flour mill
| Model | 6FTF-50 |
| Capacity (T/24h) | 50 |
| Volage | 380V,50HZ |
| Power required (kW) | 115 |
| Size of workshop:(L×W×H) | 30×9×8m |

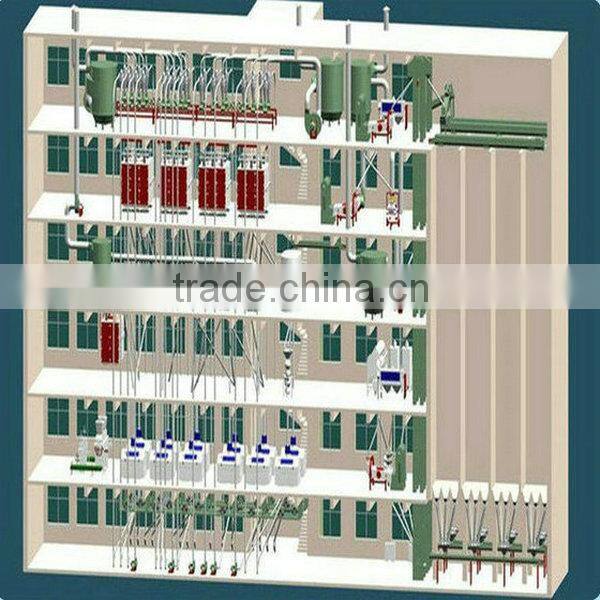

100-500ton flour mill
| Model | 6FTF-100 |
| Capacity (T/24h) | 100 |
| Extraction rate (%) | Grade 1 flour:≥68% Grade 2 flour:≥78% |
| Volage | 380V,50HZ |
| Power required (kW) | Around 300 |
| Size of workshop:(L×W×H) | 3 storey building or single storey workshop 40X10X10.5 m |
Main terms
1. Voltage: 380V, Frequency: 50HZ, below an elevation of 1000m.
2. Time of Shipment: 30-90 days since receipt of 30% deposit.
3. Payment terms: T/T, 30% deposit, 70%balance before shipment or L/C.
4. Installation terms: we provide a turnkey project of our machinery, including special design, installation, commissioning and training workers. We will send technicians to take charge the installation, test running, and training local operators.
5. Warranty: one year on part from date of invoice.
Loading & transport
Our clients
Contact us as following, we welcome you to visit our factory!
Enjoy your life, thanks for your patiently browse!
Contact Us
- Hebei Jing Gang Machinery Co., Ltd.
- Contact nameBelinda Liu Chat Now
- Phone0086-311-85862830
- AddressWenyuan St., Shijiazhuang,Hebei
-
