Home > Products > Scaffolding System > Safety Galvanized Ringlock scaffolding system

Safety Galvanized Ringlock scaffolding system

FOB Price

USD $6 - $18 / Piece

50 Pieces(Min.Order)

Supply Ability 2000 Ton / Tons per Month
Port Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	YAHUA
Model Number	YH-RS202

Product Description

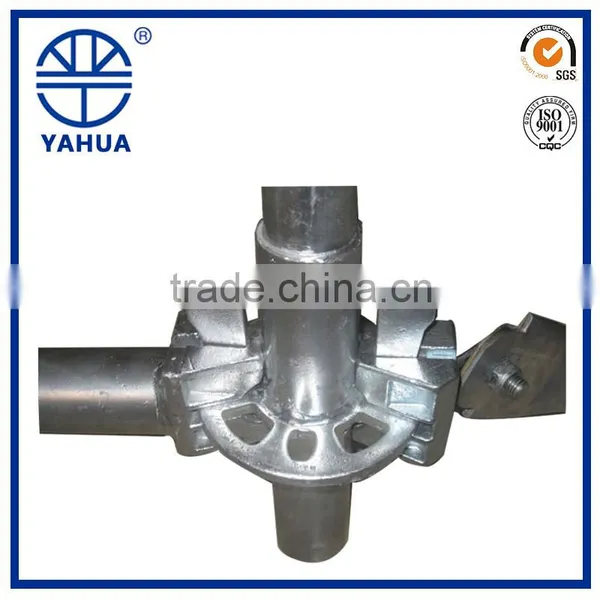

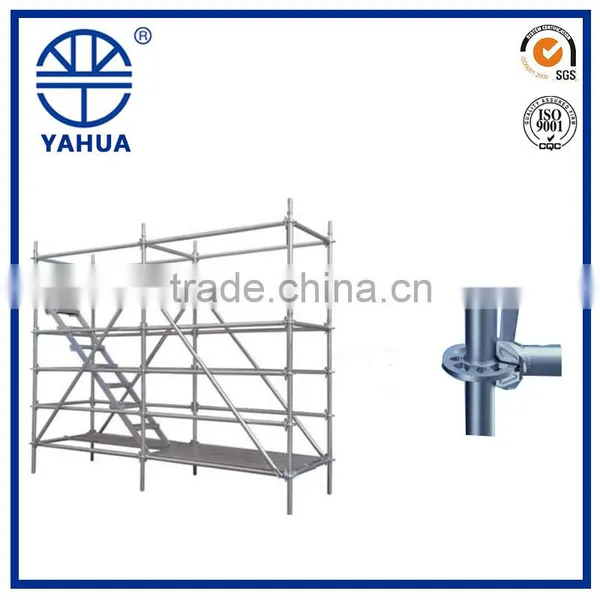

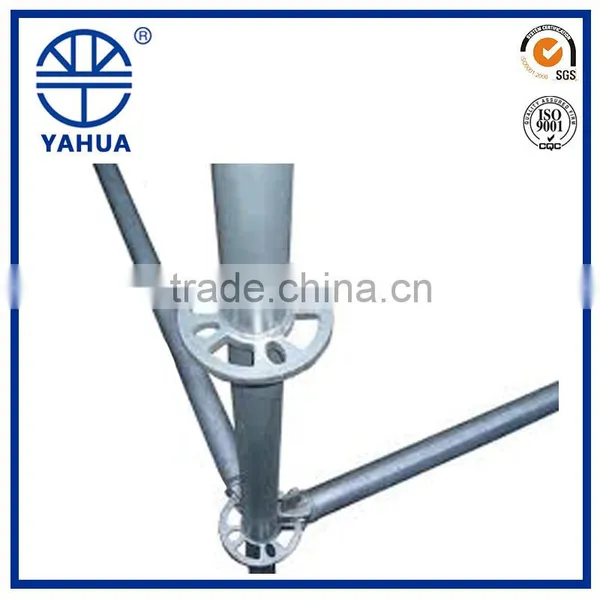

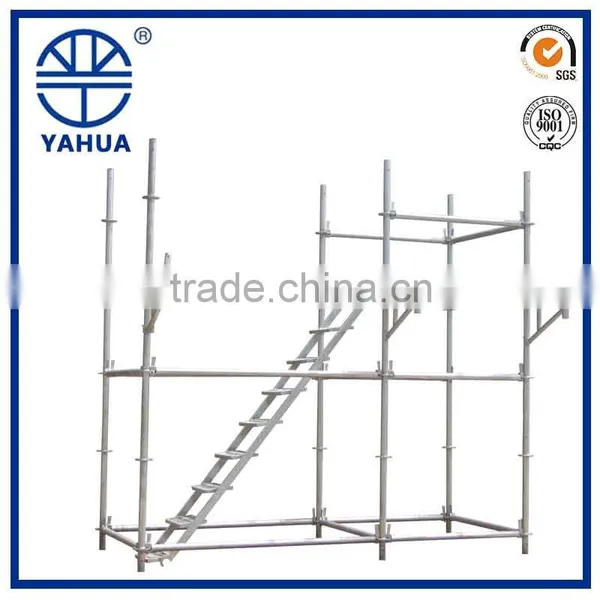

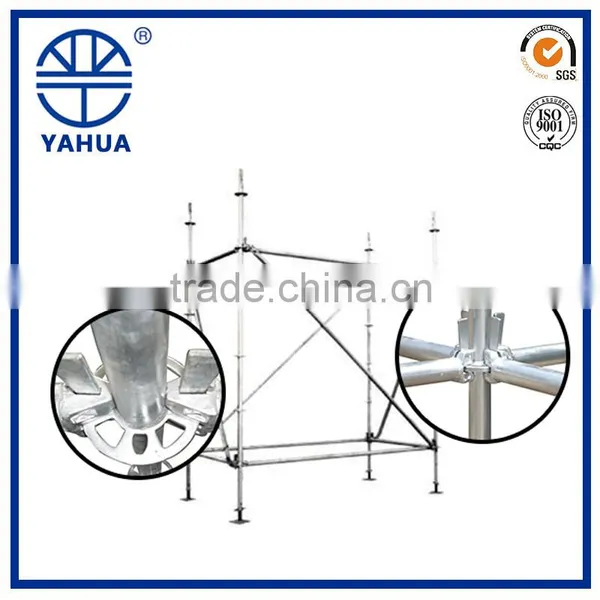

Safety Galvanized Ringlock scaffolding system

Product Description

1. Standard (Vertical): 48.3*3.2mm with Spigot

Material	Q345
Size	48.3*3.2mm
Ringlock	Q235B steel; 8mm or 10mm thickness
Surface Finishing	HDG
Processing Flow	Cutting off, welding, shaping, galvanizing, packaging
Function	*main stressed part of scaffold;
Function	*adding inner pipe fittings on the upper end to increase height of scaffold;

Item Code	Length(m)	Length(inch)	Weight(kg)	Weight(lbs)
YH-RS050	0.5m	1′8″	3.19	7.01
YH-RS100	1m	3′3″	5.66	12.45
YH-RS150	1.5m	4′11″	8.07	17.75
YH-RS200	2m	6′7″	10.45	23.00
YH-RS250	2.5m	8′2″	12.87	28.32
YH-RS300	3m	9′10″	15.29	33.64
YH-RS400	4m	13′1″	20.11	42.24

2. Ledgers (Horizontal): 48.3*3.0mm

Material	Q235
Size	48.3*3mm
Surface Finishing	HDG
Processing Flow	Cutting off, welding, shaping, galvanizing, packaging
Function	Connecting vertical poles to fix the whole scaffold, keeping it from shaking

Item Code	Length(m)	Length(inch)	Weight(kg)	Weight(lbs)
YH-RL065	0.65M	2'2"	3.14	6.91
YH-RL088	0.88M	2'10"	3.93	8.65
YH-RL092	0.92M	3'	4.09	9.01
YH-RL107	1.07M	3'6"	4.68	10.29
YH-RL115	1.15M	3'10"	4.95	10.88
YH-RL157	1.57M	5'2"	6.47	14.23
YH-RL183	1.83M	6'	7.4	16.28
YH-RL213	2.13M	7'	8.49	18.68
YH-RL244	2.44M	8'	9.61	21.15
YH-RL305	3.05M	10'	11.83	26.02

3. Brace (Diagonal): 48.3*2.5mm

Material	Q235
Size	48.3*2.5mm
Surface Finishing	HDG or powder coated
Processing Flow	Cutting off, both ends flattening, slotting, assembling, galvanizing, packaging
Function	Connecting vertical poles and ledgers to make the scaffold more stable

Item Code	Bay Length(M)	Bay Length(inch)	Brace Length(M)	Weigth(KG)	Weigth(lbs)
YH-RB065	0.65M	2'2"	2.07M	7.34	16.16
YH-RB088	0.88M	2'10"	2.15M	7.99	17.58
YH-RB092	0.92M	3'	2.17M	8.31	18.27
YH-RB107	1.07M	3'6"	2.23M	8.4	18.49
YH-RB115	1.15M	3'10"	2.26M	8.53	18.77
YH-RB157	1.57M	5'2"	2.48M	9.23	20.31
YH-RB183	1.83M	6'	2.64M	9.72	21.38
YH-RB213	2.13M	7'	2.85M	10.31	22.69
YH-RB244	2.44M	8'	3.07M	11.02	24.24
YH-RB305	3.05M	10'	3.56M	12.15	26.73

4, Steel Plank: 241mm width; 67.5mm height; 1.8mm thickness

Material	Q235
Surface Finishing	HDG
Processing Flow	Uncoiling, cutting, grooving, punching and folding, welding
Function	For supporting constructors to operate at heights

Length(m)	Length(inch)	Weight(kg)	Weight(lbs)
1.15m	3′10″	10.49	23.07
1.57m	5′2″	13.54	29.80
2.13m	7′	17.64	38.80
3.05m	10′	24.34	53.56

5, Lattice girder

Length(m)	Length(inch)	Weight(kg)	Weight(lbs)
5.17m	1′7″	70.47	115.03
6.14m	20′2″	82.63	181.79
7.71m	25′3″	103.76	228.26

6, Side Brackets

Length(m)	Length(inch)	Weight(kg)	Weight(lbs)
0.65m	2′2″	6.61	14.54
0.88m	2′10″	8.62	18.96

7, Base Collar

Length(m)	Length(inch)	Weight(kg)	Weight(lbs)
0.24m	9.4″	1.53	3.37

Certifications

Packaging & Shipping

Port: Shanghai

Payment Terms: L/C, T/T, Western Union, MoneyGram

Packaging Details: Packaged in Pallet
