3/4 Inch Bulb Sprinkler Head(brass/ Zinc Material )

Specifications

bulb sprinkler head of the installation,ZST-15/20 Fiire Sprinkler Feature:

Bulb: 5 mm/3 mm

Finishes: Chrome

Orifice Size: 1/2'', 3/4"

Nominal operating temperature: 68 Celsius degree

Nominal pressure: 12Bar(1.2MPa)

Airproof test pressure: 30bars(3.0Mpa)

Outlet: 11 ± 0,2mm

Factor K: 80,0

Height: 54 ± 0,8mm

Width: 27,5 ± 0,5 mm

Package:200pcs packing in a carton box

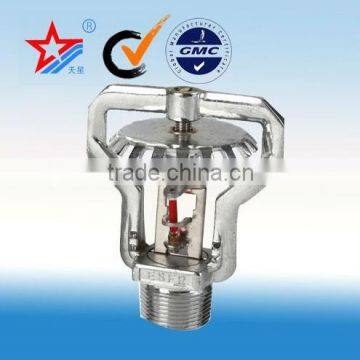

1. Fire Sprinkler  Head's Detail pictures

2.Technical parameter

     Concealed fire sprinkler not only plays all functions what the standard ones have, but also has decorative plate where its sprinkler body conceal so as to make its look beautiful and to keep the ceilings elegant.

3.Recommendation

4.packing detail

50pcs in 1 inner box  ,   4 inner boxes=200pcs in 1 carton
