Home > Products > TFT-LCD touch screen module > 320xRGBx480 touch display 3.5" lcd screen for medical device

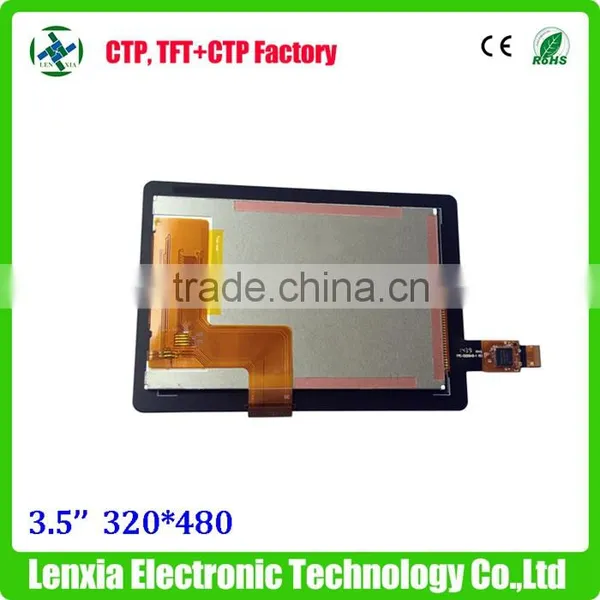

320xRGBx480 touch display 3.5" lcd screen for medical device
- 2500000 Piece / Pieces per Month
- Shenzhen HK
- T/T Credit Card PayPal
- Transmissive mode touch screen display 3.5 tft lcd touch
- HOT! 320X480 3.5 tft lcd module with touch panel
- I2C +SPI+RGB capacitive 3.5 tft lcd 320x480 touch from LENXIA factory
- Vertical type display touch 3.5 tft lcd 320x480 capacitive
- Standard or custom capacitive touchscreen display 3.5 tft lcd
- High standard 3.5 tft with touchscreen capacitive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LENXIA | Model Number: | LX035MY01 |
Type: | LCM |
Product Description
320xRGBx480 touch display 3.5" lcd screen for medical device
LCD Module | Product Name | display 3.5" lcd screen |
Model Number | LX035MY01 | |
Product Size | 3.5 inch | |
Assy type | LCD module (COG+FPC+BL)+CTP | |
Module Size | 84.1x55.2x2.1mm | |
Active Area | 73.44x48.96mm | |
Resolution | 320xRGBx480 | |
Interface | RGB 18bit | |
Contrast Ratio | 500:1 | |
Luminance | 280 cd/m2 | |
Viewing Direction | 6 O’clock | |
Display Mode | Normally White,Transmissive | |
Backlight | 6 White LEDs | |
CTP | CTP Interfcae | I2C |
Touch Controller | MSG2133A | |
Support Points | 2 | |
Transparency | >86%min | |
Surface Hardness | 6H. | |
Structure | Cover glass+ sensor glass | |
Operating System | Linux,android,win CE |
Products show:
Touch screen module | |||||||
Item NO | Active Area (mm) | Outline (mm) | Resolution | Brightness | Interface | With Capacitive/ Resistive touch | Remark |
LX035MY01 | 73.44*48.96 | 84.1 x 55.2 x 2.1 | 320X480 | 280 | RGB | Capacitive touch | Read More |
LX043MY01 | 95.04*53.86 | 118*77*4.48 | 480X272 | 300 | RGB | Capacitive touch | Read More |
LX050MY01 | 108*64.8 | 127.0*85.8*4.93 | 800X480 | 250 | RGB | Capacitive touch | Read More |
LX070MY01 | 154.08*86.42 | 164.9*100*6.93 | 800X480 | 360 | RGB | Capacitive touch | Read More |
Capacitive touch panel | |||||||
Item NO | Active Area (mm) | Outline (mm) | Structure | Interface | Touch controller | Touch controller | Remark |
LX035CY01 | 74.94*50.36 | 94.94*66.86*1.3 | G+G | IIC | 2 | MSG2133A | Read More |
LX035CJ02 | 74.24*49.76 | 85.44*56.44*1.47 | G+G | IIC | 3 | FT6236 | Read More |
LX043CY01 | 97.04*55.86 | 114*77*1.28 | G+G | IIC | 3 | MSG2138A | Read More |
LX050CY01 | 109.8*66.6 | 127.0*85.8*1.43 | G+G | IIC | 5 | FT5316 | Read More |
LX070CY01 | 156.48*88.32 | 164.5*99.6*1.43 | G+G | IIC | 5 | FT5316 | Read More |
*******************************************************************************************************************************************
What we can do ? ------- Manufacturer of Capacitive touch panel !
*******************************************************************************************************************************************
Products range | Capacitive Touch Panel ( CTP ), TFT LCD module ( LCD ), CTP bonding LCD Moudle, Solution Help . |
Standard size | 1.44'', 1.77'', 2'', 2.8'', 3.2'', 3.5'', 4'', 4.3'', 5'', 7'', 10.1'', 12'', 14'', 15'', Up to 55'' ; ( Customized available.) |
CTP Cover glass | AG/AR/AF available. |
Silk- printing, LOGO. | |
0.55--5.0 mm thickness. | |
CTP structure | G+G; G+F; G+F+F; P+G. |
Touch solution | Multi-touch. ( up to 10 points Max.) |
Support with water touch, with glove touch. | |
Optical bonding with LCM module. | |
General Business Clauses : | |
MOQ | 1 Piece. |
Lead time | Samples in stocks ( or 2-3 weeks ); 2-4 weeks for mass production. |
Trade Terms | FOB OR EXW. |
Payment | 100% T T in advanc for samples. |
50% T T in advance , 50% before delivery for mass production. | |
Warranty | 12 months. |
Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton. |
*******************************************************************************************************************************************
Optical Bonding:
*******************************************************************************************************************************************
*******************************************************************************************************************************************
Why choose us ? ------- LENXIA ELECTRONIC !
*******************************************************************************************************************************************
1) Customized design is available, OEM and ODM orders are welcomed.
2) 8 years' experience in manufacturing touch screen, stable quality and supply.
4) Excellent factory, with CE,ROHS, ISO9001 and ISO14001 certification.
5) Delivery the goods to our customer all over the world with speed and precision.
6) Most competitive price and full size range of products.
7) Reply your inquiry in 24 working hours.
*******************************************************************************************************************************************
Company Profile:
*******************************************************************************************************************************************
Lenxia Electronic Technology Co.,LTD is a manufacturer of capacitive touch panel and LCD/LCM display module with well-
equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs,
our products are extensively used in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home
and other fields. Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships
and mutual success.
******************************************************************************************************************************************
Applications of Touch screen:
******************************************************************************************************************************************
Q1: How can I get some samples?
A: First confirm data according to the drawings, then send you samples to test and check quality.
Q2: How about your delivery time?
A: Standard sample have in stock.
Custom sample needs 2-3 weeks.
Mass production time needs 4-6 weeks for order quantity more than.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pcs for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: Is it OK to print my logo on products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 12months warranty to our products.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Contact us:
Skype: lenxia01
Tel: 86-769-82739501
Wechat: 86-15322998013
Whatsapp : 86-18606617393
Contact Us
- Dongguan Lenxia Electronic Technology Co., Ltd.
- Contact namesimi Tang Chat Now
- Phone86-769-82739501
- AddressNo. 23, Fengming 3rd Street, Huangjiang Town, Dongguan,Guangdong
