14 inch full hd portable lcd digital signage bus advertising screen

FOB Price

USD $90 - $138 / Piece

50 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	OEM Brand Logo)	Model Number:	PT140MD-6
Type:	Other, TFT, portable digital signage	Application:	Indoor	Panel Size:	14 inch
Max Resolution:	1366*768	Viewing Angle:	160o / 160o, 160°(CR>5)	Pixel Pitch:	0.2265(H)*0.2265(V)
Color:	16.7M	Contrast Ratio:	500 : 1	Brightness:	250cd/m2
Response Time:	8ms	Input Voltage:	AC 110V~240V

14 inch full hd portable lcd digital signage bus advertising screen

Model: PT140MD-1
Item: 14inch Open Frame HD Digital Advertising Display

1. Various appearances at your choice.
2. Size can customized according to you

Product Description

Feature

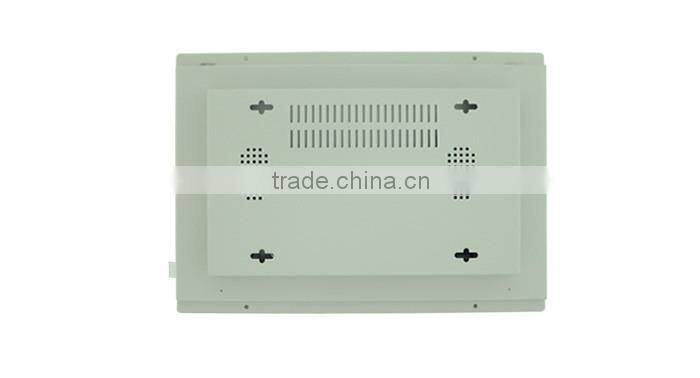

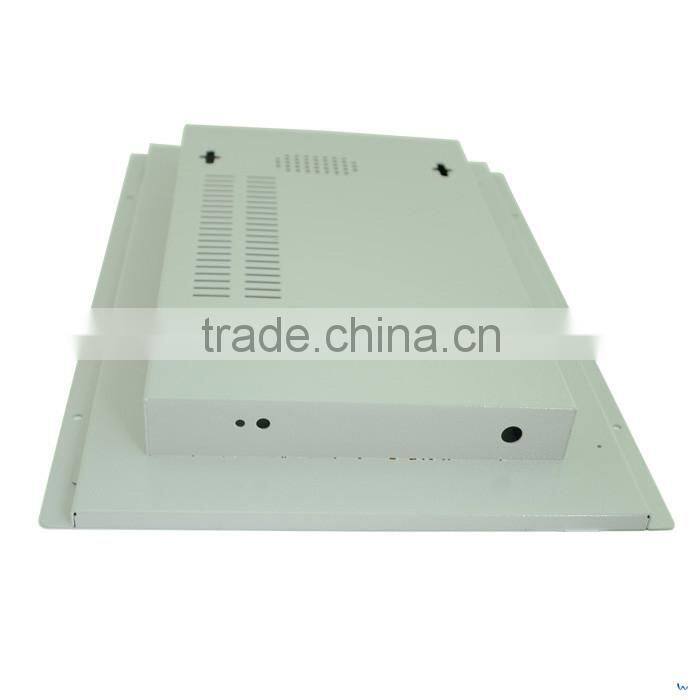

Metal frame

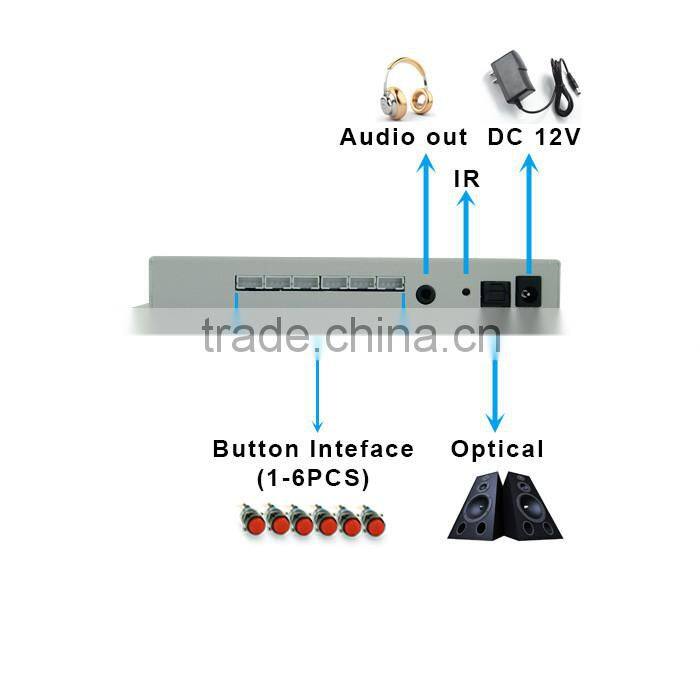

It supports at most 6 buttons. You can setup 5 file folders (folder 00, 01, 02, 03, 04) in the memory card. Folder 00 is played as homepage. If you push either button, it will play the files in the corresponding folder, when this folder is finished, it will turn to loop play the files in folder 00. For example, if you press button "k1", it will play files in folder 01. And if you press button "k1" again during the process of play, it will replay from the first file in folder 01. When it finished playing files in folder 01, it will turn to loop play files in folder 00. If you press button "k2" during the process of playing files in folder 01, it will turn to play files in folder 02. If no button being pressed it will loop play the files in folder 00. Button K5 and K6 control volume(K5 controls "vol-" / K6 controls "vol+").

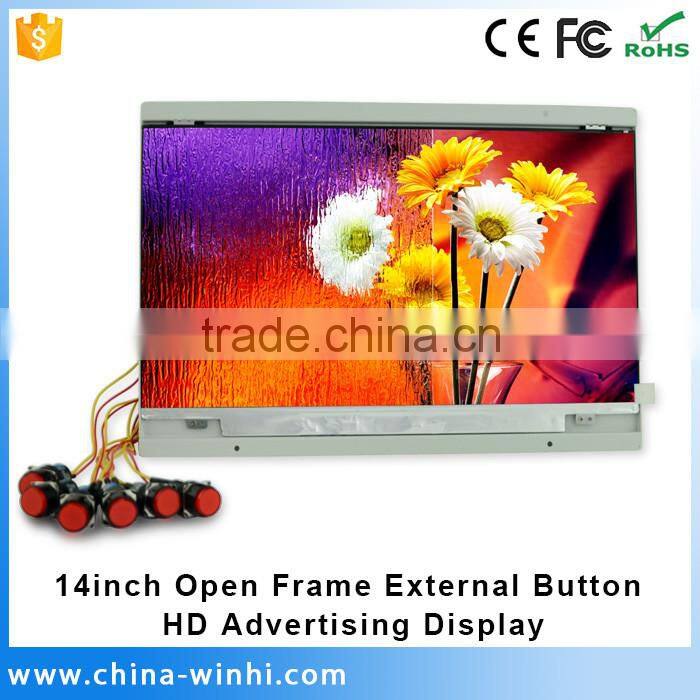

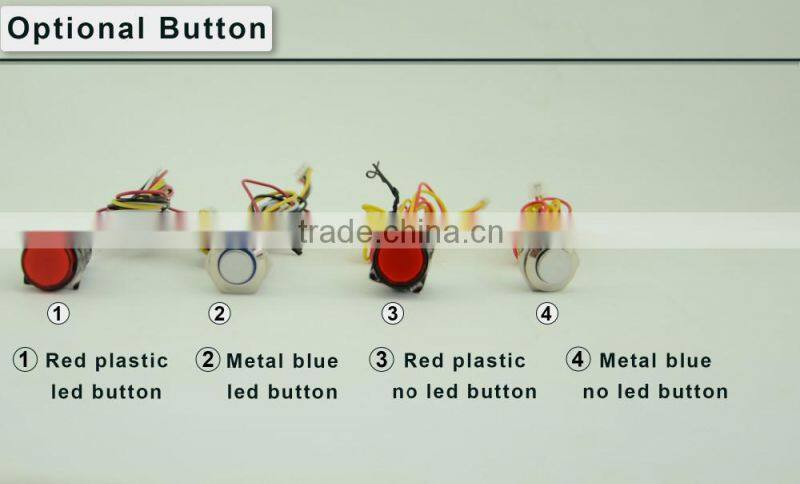

There are two options for the external button: 1. common plastic button. 2. flickering LED button
Support real 1080P HD decode
Support digital optical out
Support 3.5 mm Earphone out
Support 15 kinds of photo switching modes
Slideshow time can be set up by yourself
Full function remote control, easy operation
The above same functions can also be applied to 10"-46" ad players
Our professional R&D team can customize personalized products for you.

Specification

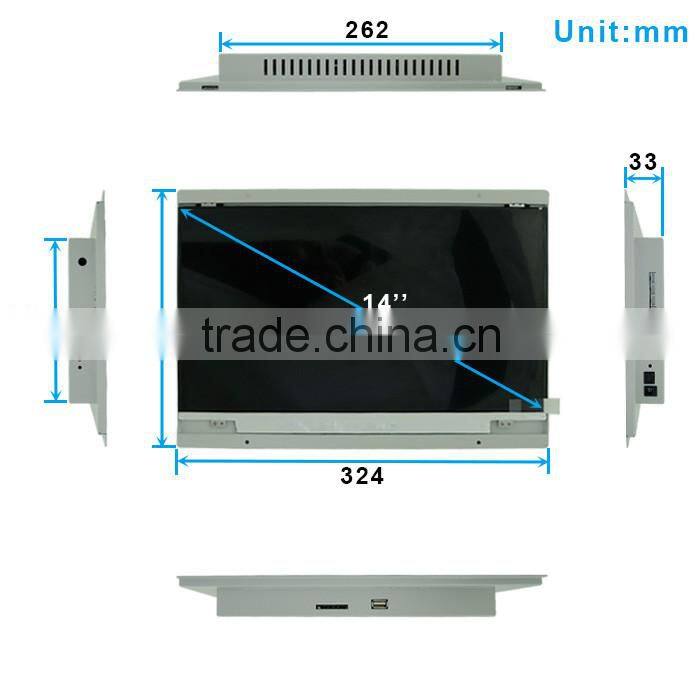

Display	LCD size	14″LED screen(16:9)
	Pixel Number	1366R.G.B.768
	Luminance	250cd/m²
	Contrast Ratio	500:1
	Viewing Angle	160°(CR›5)
I/O	Integrated Speakers out	StereoL/R, 5W x 2, 8Ω (optional)
	3.5 mm Earphone out	yes
	Digital optical out	yes
	Power(work mode)	30W TYP
	Player input	12V
	Adaptor	Input: AC 100~240 V 50/60Hz Output: DC 12v 2A

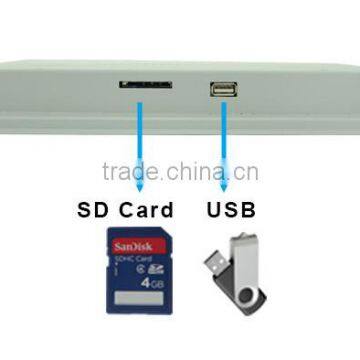

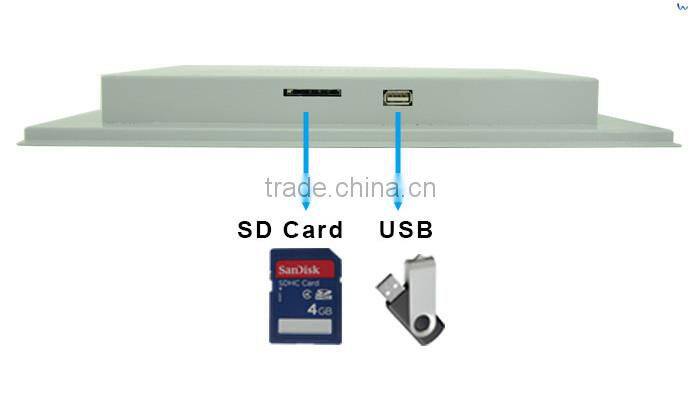

Supported Card & Format	Interface	SD(HC)/USB(2.0)
	Photo	JPEG, BMP
	Video	MP4, AVI, DIVX, XVID, VOB, DAT, MPG, MPEG, RM, RMVB, MKV, MOV, HDMOV, M4V, PMP, AVC, FLV, H.264
	Audio	MP3, WMA, OGG, AAC, AC3, DTS, FLAC, APE
Other	Shell Color	Black

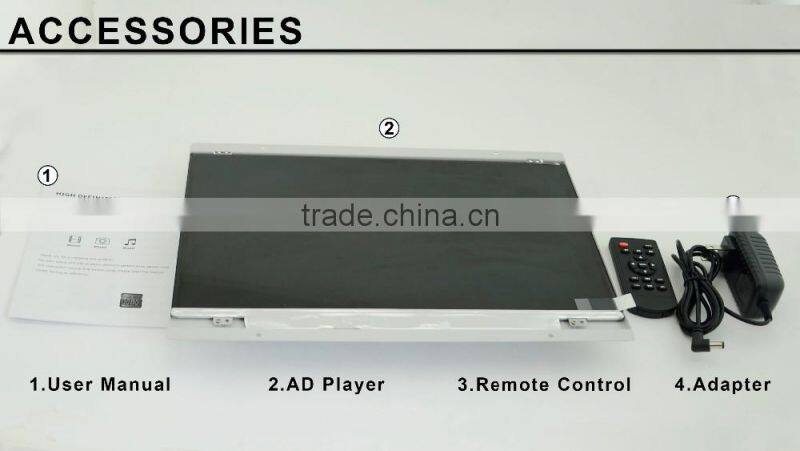

	Accessories	Adapter, remote control
	Operating temperature	0°C~ 40°C (32℉~104℉)
