7 inch Supermarket Barcode Scanner mini USB Advertising Display LCD Battery Powered Digital Signage

FOB Price

USD $50 - $100 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port NINGBO
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	OEM ODM	Model Number:	PT070BD-4(Barcode Reader)
Type:	TFT	Application:	Indoor	Panel Size:	7inch 16:9
Max Resolution:	800*3(RGB)(W) X 480(H)	Viewing Angle:	70(Right)/70(Left)/50(Top)/70(B0ttom)	Pixel Pitch:	0.0642(W)X0.1790mm(H)
Color:	16.7m(RGB 8 bit)	Contrast Ratio:	500:1	Brightness:	250cb/m
Response Time:	10msec	Input Voltage:	110-220v, 2W

Product Description

7 inch Supermarket Barcode Scanner mini USB Advertising Display LCD Battery Powered Digital Signage

Model: PT070BD-4

Item: 7inch Barcode Reader Digital Advertising Display

Product Description

Support input the bar code information from the Uart. Bar code can be read accurately at any time.
Single repeat, All repeat
Auto-play when turned on with the cards/USB inserted; Supports 16 kinds of auto play
BGM mode (Auto-boot mode can be set): Support background music
Pictures can be rotated 90°( Vertical display)
Super time switch function, can auto turn on/off at a specific time
One key copy
Picture Display Time: Picture Display Time is modifiable
Time Display: Time Display or not is modifiable
Full function remote control, easy operation
Multi-Language OSD: Chinese, English, Japanese, French, German, Danish, Spanish

Barcode Reader Function Instruction
Support input the bar code information from the Uart. Bar code can be read accurately at any time.

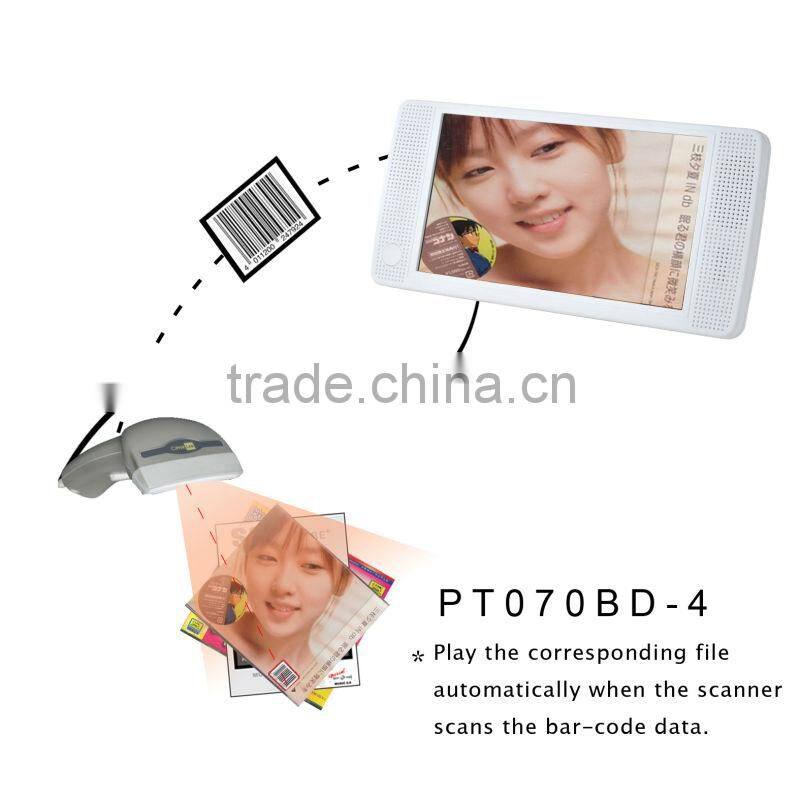

1. The PS2 interface connects with the laser or LED red light barcode scanner; the player auto plays the corresponding file when you scan a bar-code.

2. If there is no corresponding file in SD/CF card, you will find "NO FILE FOUND" on the screen.
(Remark: Please make sure the file's name is the same as the barcode. For example, if the
barcode is 6924566616816, the corresponding file name should be 6924566616816)

3. Notes:
A: You can name one file as " homepage". If there’s "homepage" in card, media player will loop play homepage before or after scanning.

B: If there’s no "homepage" in card, before scanning or 5 seconds after scanning you will get a black screen showing "NO FILE FOUND".

C. If you scan a bar-code, but no corresponding file in card, it will display "NO FILE FOUND" on the screen.

D. When picture and video co-exist with the same name in the card, it will display the picture at first than the video follows.

E. All the media files should be stored in root directory.

Function upgrade, without prior notice!

Display	LCD size	7 inch ((Diagonal)
	Resolution	800*3(RGB)(W) x 480(H) (digital panel)
	Luminance	250cd/m2
	Contrast Ratio	500:1
	Viewing Angle	+70/-70 (H), +50/-70(V) (degree)
	Backlight	LED back light
	Display mode Optional	16:9 / 4:3
I/O	AC Power Input	AC: 100~240 V
	DC Power Output	12V / 1.5A
	Integrated Speakers	2W x 2
Supported Card & Format	Interface	CF/MMC/SD/USB(2.0)
	Photo	JPEG, BMP
	Video	MPEG 1, MPEG 2, MPEG 4, AVI, MP4, VOB
	Audio	MP3, WMA
Other	Dimensions (LWH)	216.8 x 104.8 x 28 mm (non-include bracket)
	Shell Color	Default color: pearl white; optional color: blue, black...etc
	Accessories	Bracket(optional), remote control, user manual, AC adapter
	Operating temperature	0°C~ 40°C (32°F~104°F)
