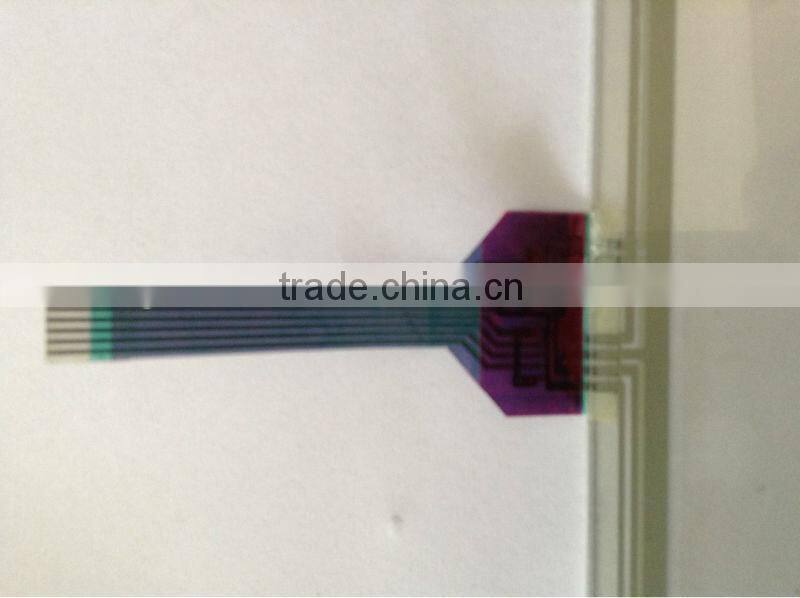

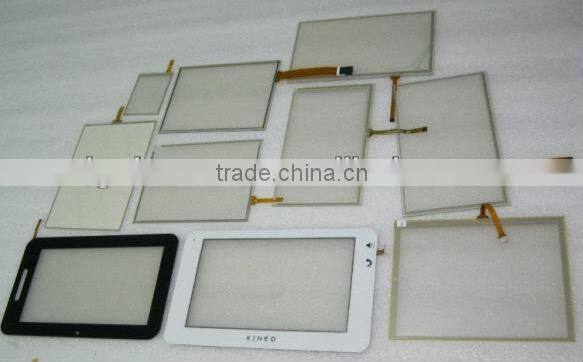

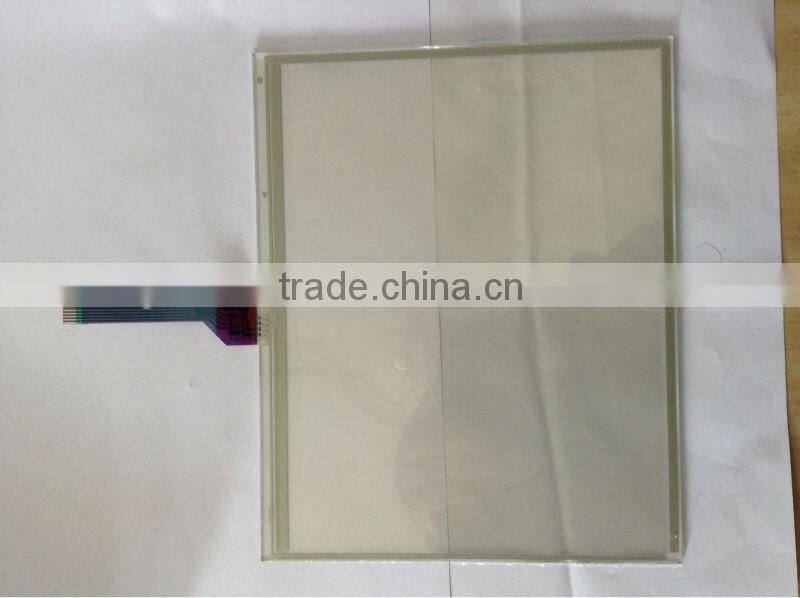

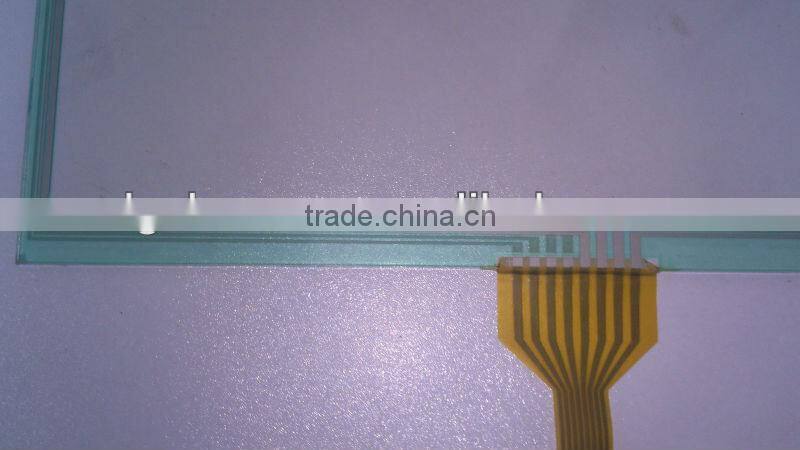

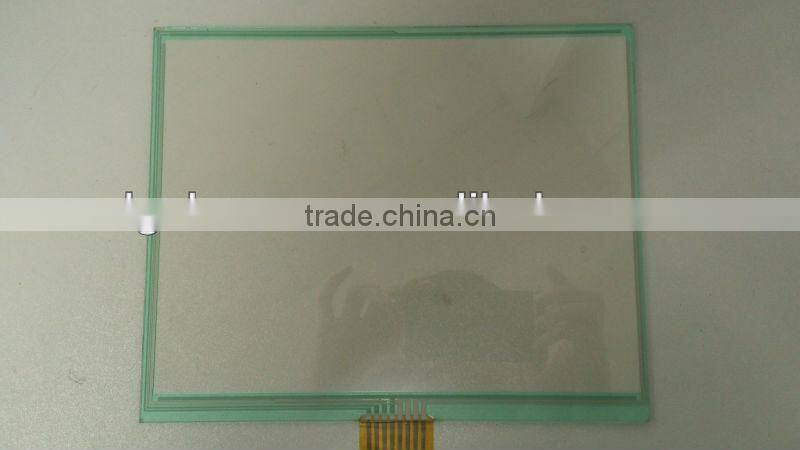

3.5-21.5 Inch 8 Wire Resistive Touch Panel With Best Quality

1. High sensitivity
2. High stability
3. High durability
4. Easy installation

 Available size: 3.5-21.5''

ITO Glass Thickness: 1.8mm

 ITO Film thickness:0.188mm

Aspect Ratio: 4:3/ 16:9

Operating Voltage: DC3-7V(TYP5V)

Operation Current: 3.5mA max

X,Y resistance: 30Ω~300Ω according to the size

Insulation Resistance :  Min 20MΩ /25V(DC)

Linearity: 1.5% Max

Response Time:  10ms Max

Transparency: 78% Min

Surface Disposal: Anti Glare; Clea; Anti-Newton ring

Operating Temperature: -10°C~+60°C

Storage temperature : -20°C~+70°C

Humidity: 10%~90%RH at 60°C noncondensing

Surface Hardness:  3H Min

Pen Hitting Life :1millions time Min

Pen Sliding Durability :  100 thousand times

Finger Touch Life : 35millions times Min

Surface Resistance:200Ω~500Ω
