1 year free warranty resolution up to 1920*1080P@60Hz HDMI internet extender
- 1000 Set / Sets per Month
- Shenzhen
- Credit Card
- Built-in Audio and Image Sync Output HDMI to 3G-SDI Video Media Converter
- Support One HDMI Input Two SDI Output HDMI to SDI Signal Converter
- Factory Price with Good Quality HD-SDI /3G-SDI to HDMI Video Converter
- Sales Promotion in Very Competive Price HD SDI to HDMI Video Converter
- 1080P extender connect HDMI cable between HDMI input port and HDMI output port
- 1080P extender transmits 120m over CAT5e cable internet tv transmitter
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Pway | Model Number: | PW-HT203 |
Product Description
1 year free warranty resolution up to 1920*1080P@60Hz HDMI internet extender
Descpription

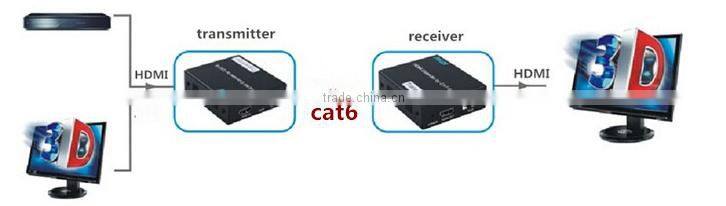

The PW-HT203 extender provides extension of HDMI signals long distances over a single CAT6
cable, it supports high resolution up to 1080p and EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality
by its good stability and powerful security.
- Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
- Support video resolution up to 1920*1080P@60Hz;
- Support EDID copy function, can match many kinds of display device;
- Transmitter support one channel local output;
- Compliance with HDMI 1.3 and HDCP 1.2 standard;
- High compatibility, can auto-match source and display device;
- Built-in automatic adjustment system, make the image smooth, clear and stable;
- Built-in ESD protection system;
- Simple to install, plug and play;
Specification
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080P@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---60m | |
Other | Power supply | The power adapter: DC 5V/1A |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 100*65*25mm | |
The warranty | 1 year free warranty |
Pictures
Panel
Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
RJ45 | Ethernet interface |
DC/5V | Power adapter socket |
EDID | EDID button, press 3 second to copy EDID of display device |
LED indicator | Description |
PWR | System power indicator |
