Double Station Blow Molding Machine for 2L 5L
- 10 Set / Sets per Month
- NINGBO
- computerized air cushion machine
- Polystyrene EPS Hot Foam Cups Machine
- HDPE water pipe production line gas pipe production line plastic HDPE pipe making machine
- HDPE PE Pipe Extrusion Making Machine HDPE water pipe production line gas pipe production line
- PVB glass laminated film production line
- PET-GRIP Cement Lining Drainage Board Production Line
Product Details
Condition: | New | Application: | Other, .BOTTLE | Plastic Processed: | PE |
Screw Design: | Double-screw | Place of Origin: | Zhejiang, China | Brand Name: | YUANDA |
Model Number: | YD-2S5L |
Product Description

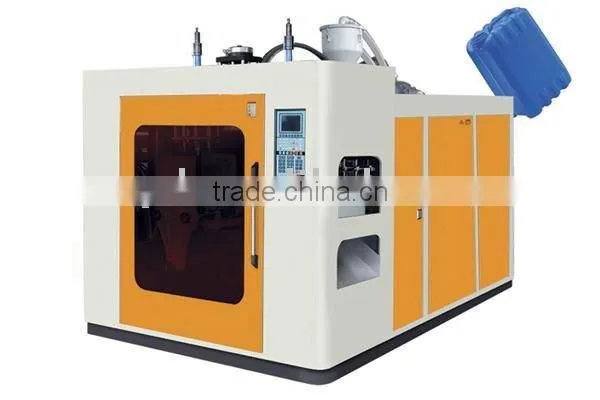

YD-2S5L Double Station Blow Molding Machine for 2L 5L
Blow Molding Machine
Clamping---------Single station+Hight-precision guide+large arm cylinder axle
Extrusion system--Hard gear surface reducer+Japan inverter
Die system--------Central-incoming extrusion die with special steel
Hydraulic system--Japan hydraulic valve seal and proportional control
Control system----Japan PLC+Imported HMI+PLC automatic
- Advanced processing equipment:
- Introducing advanced technology form Germany,Italy,Japan etc.
- Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
- Holding over 40 items Patent Technologies.
General Infomation | YD-2S2L | YD-2S5L | YD-2S12L | YD-2S2L/T | YD-2S5L/T | |
| Max.Product Volume(L) | 0.3L/3-0.1L/4 | 5L/1-2L/2-1L/3-0.6/4 | 12L/1;5L/2 | 2L/1 | 5L/1 |
Dry cycle(pc/h) | 750*2 | 700*2 | 800 | 750*2 | 700*2 | |
Screw Diameter(mm) | 55~60 | 70~80 | 70 | 55-60 | 70-80 | |
Screw L/D ratio | 24~25 | 24~25 | 24-25 | 24-25 | 24-25 | |
Screw motor power(kw) | 15 | 22 | 37-45 | 3.3+15 | 3.3+22 | |
Screw heating capacity | 3.3~4.5 | 5.04~8.2 | 7.3-9 | 4.5-7 | 6.8-10.3 | |
No.of heating zone | 3 | 3 | 5 | 3 | 3 | |
Output of HDPE(KG/H) | 50~70 | 75~100 | 150 | 50-70 | 75-100 | |
Oil pump driver power | 7.5 | 7.5 | 11 | 7.5 | 7.5 | |
Clamping force(KN) | 38 | 60 | 110 | 38 | 60 | |
Mould Stroke | 138~368 | 148~508 | 300-700 | 138-368 | 148-508 | |
Useful mould platen size | 300~320 | 370*390 | 500*500 | 300*320 | 370*390 | |
Max Die diamater(mm) | 90 | 145 | 220 | 90 | 145 | |
Die heat Capacity(kw) | 2.8~3.5 | 3.5~4.3 | 4.4-4.5 | 2.8-3.5 | 3.5-4.3 | |
Blowing pressure(mpa) | 0.6 | 0.7 | 0.7 | 0.6 | 0.7 | |
Air volume | 0.4 | 0.6 | 0.6 | 0.4 | 0.6 | |
Cooling water pressure | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
Size of machie(m) | 1.55*2.4*3.8 | 3.5*2.2*2.6 | 3.5*3.5*2.6 | 2.7*1.86*2.18 | 3.5*2.2*2.6 | |
Weight of machine(Ton) | 4.4T | 8.2T | 11.2T | 4.4T | 8.2T |
