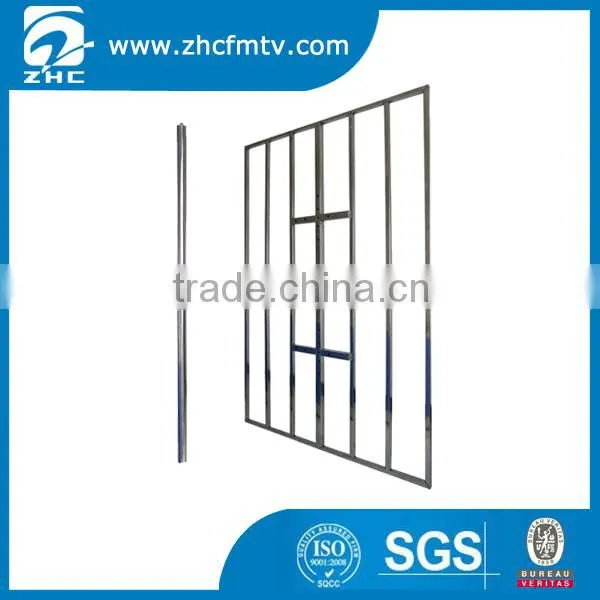

Directional Broadcast Transmitter Antenna for Broadcast Transmitting

Specifications

Broadcast Transmitter Antenna
Band II panel
Vertical or Horizontal polarization
Stainless steel
AISI 304,Directional pattern

Directional Broadcast Transmitter Antenna for Broadcast Transmitting



 Electrical Data:

Frequency range:	87.5~108MHz	Impedance:	50ohm
Connectors:	L27 female or 7/8"	Max Power:	1KW(7/16'or 7/8')-3KW(7/8')
VSWR:	<1.25	Polarization:	Horizontal or Vertical



Gain: 4.5dB(refered to half-wave dipole)
Half power beam width E plane 320,H plane 580
Lightning protection All metal parts DC grounded



Mechanical Data:

Dimensions:	2000mm*1400mm*1075mm
Weight:	32kg ref.stainless steel
Wind surface:	0.13m2 (side);  0.56m2 (front)
Wind load:	108kg(front-wind speed at 160km/h)
Maxwind velocity:	200km/h
Materials:	Reflector:hotdip.galvanized Dipole:stainless steel Internal parts:passivated aluminium Radome:fiberglass (Option)
Mounting:	With special pipe clamps 50~110mm dia
