ipl rf elight hair removal spa beauty ipl laser hair removal spa beauty machine MED-230

1.How it works

E-Light combines three advanced technologies: Bipolar Radio Frequency + IPL +Skin Contact Cooling.

When the three are united in one treatment, wonderful treatment experience and result can be expected. The energy of Radio Frequency can reach the middle and deep layer of the skin and heat up tissue, thus, lower energy is applied during the IPL treatment. Uncomfortable feeling during the IPL treatment will be decreased significantly and better result can be expected. In addition, cooling system involved in E-light can also ease the uncomfortable feeling.

The absorbing of the energy of radio frequency is not concerned with melanin.

So, the E-Light treatment can get good result on the soft or thin hair so as to decrease the risk caused by traditional IPL treatment.

2.Applications

1) Everlasting hair removal: remove unwanted hairs under arms, on legs, lips or other body parts, etc.

2) Skin care and rejuvenation.

3) Pigmentation treatment: remove various kinds of pigment such as freckle, chloasma, aged spots, sunburn, etc.

4) Telangiectasis treatment: treat angiotelectasis.

5) Acne treatment: papule, tuber, blain, acne, etc. and glossiness

3.Features&Benefits

1) High-efficiency and comfort: large spot size ensures high-efficient operation

2) Safe and harmless: RF technology eliminates all possible side effects and

danger caused by IPL

3) Entire cooling system makes the treatment more comfortable.

4) Interchangeable filters for different treatment item and easy cleaning.

5) User-friendly interface.

6) New fashionable outlook design

7)Certificate:CE,ISO13485

.4.Technical

Specifications

1) Wavelength:

530/640~1200nm (standard)

430/480/520/590/690/750~1200nm (Optional)

2) Spot Size: 12*30mm²,15*35mm² (standard), 15*50mm for optional

3) Cooling System: Air Cooling & Close Water Circulation &

Treatment Head with Semiconductor Cooling

4) IPL Light Energy: 0~50J/cm2

5) Pulse Duration: 1~20ms

6) Pulse Sequence: 1~15 pulses

7) Delay Time: 1~50ms

8) Integrated Skin Cooling: -4°C~+2°C

9) Operation Interface:8.4 TFT True Color LCD Screen

10) Drive Power: 2000W

11) Working Period: Continuously stand-by working for 14 hours

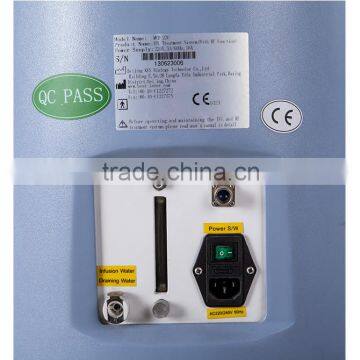

12) Electrical Requirements: 100/110V, 50~60HZ or 230~260V, 50~60HZ

13) Dimension: 50cm*46cm*125cm(L*W*H)

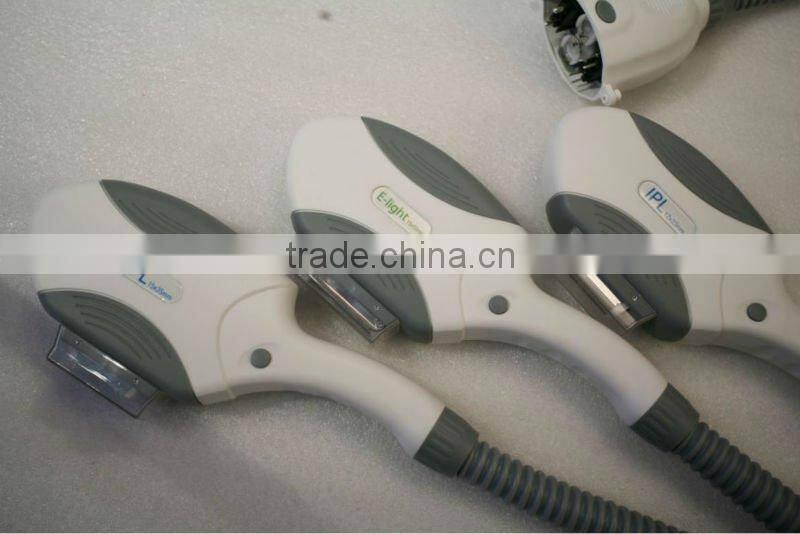

14) Hand-piece: 2 pieces

15) Net Weight: 48kg
