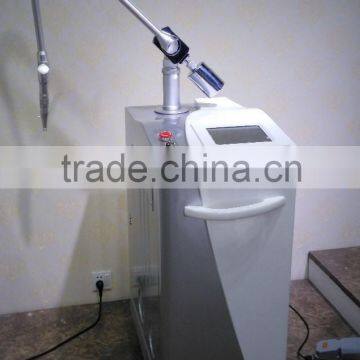

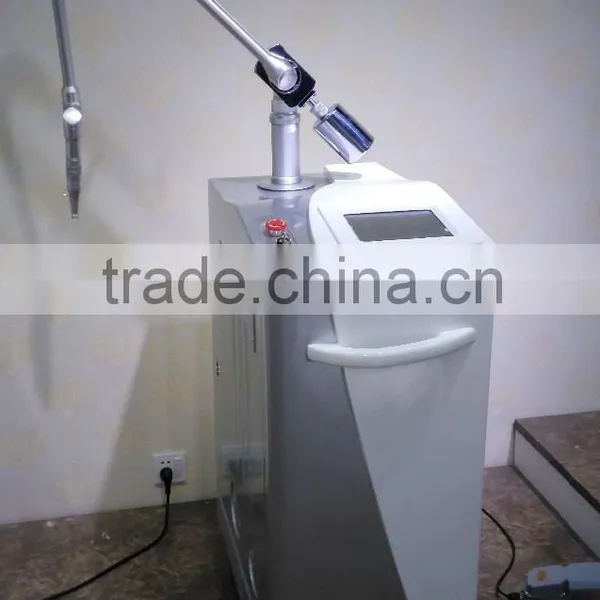

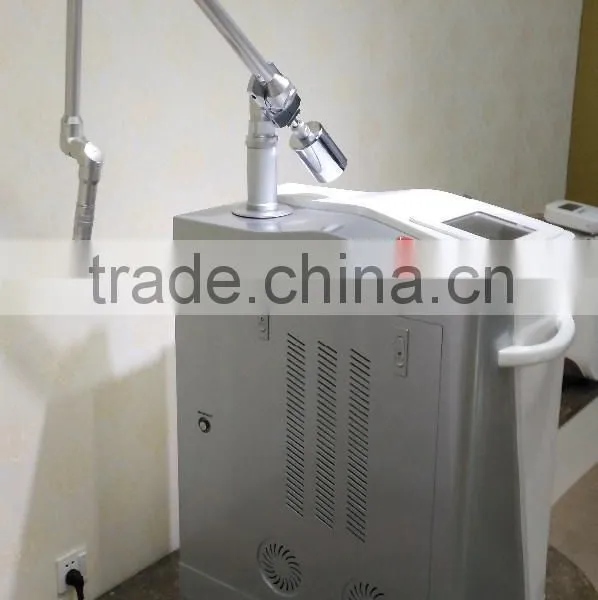

Big Q Switched Nd Yag Skin Care Machine Laser Skin-care System

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port Beijing Airport
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Q-Switch:	Yes	Style:	Portable	Certification:	CE ISO
Place of Origin:	Beijing, China	Brand Name:	NUBWAY	Feature:	Pigment Removal, Tattoo Removal, Whitening

Packaging Details

Aluminum Box

Product Description

Big Q Switched Nd Yag Skin Care Machine Laser Skin-care System

Principle of Therapy

Therapy of epidermis and dermis pigmentation-----Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.

Therapy of the dilatation of capillary vessel---- Utilizing the heat effect of the Nd: Yag Laser, the laser is absorbed by the hemachrome in the capillary vessel, then the capillary vessel become blocked and disappear.

Maintenance

1.The system contains dedicate laser generator and electrical components. Heavily Shock and extrusion is not allowed when operating and storing the system. After each treatment, The joints arm should put on the original place. Use the dust-proof cloth to cover the system.

2.Clean the lens of the joints arm with the no water alcohol after each treatment. The lens is at the tip of the joints arm. Revolve the handle to joints arm can get the lens.Warning: Do not check and clean the lens when the system is on power.

Calibration of the specifications

3.The calibration of the output:

1)Turn on the system

2)Adjust the light guide system, make the laser pulse can direct at the centre of the reaction interface of the energy calibrator.

3)When the system is at WORK status, Choose lowest Frequency(1Hz) to test the energy of the output.

4.The main body contains input protective fuse to avoid the system destroyed by the over loaded high voltage and high current of the power supply.

The step of change the broken fuse: The fuse is at the back side of the main body. Loose the fuse cap and take off the broken fuse.

5.If the environmental temperature change too much, the explosive power will reduce, and at the same time, the thermal efficiency will increase. Then emit the laser to the printing paper. If there is smoke rise from the paper, the operator must ask the technician to check the optical-electrical switch.

6.When the error value between practical output and expected output is ≥±20%. The calibration

Specifications and performance Guideline

Environmental conditions

1. Temperature: 10℃~30℃

2. Relative humidity: ≤75%,Air pressure: 860-1060hpa,Power requirement: AC 220v±10%;50Hz±2%, Water: Distilled water

Laser Skin-care System

Pigmented lesion: Yiteng lentigines, Taitian Lentiines, freckles, eyebrow tattoo, body tattoo, lips tattoo.Vascular lesion: Pigment with red, brown, blue and black; vascular expanding

Pretreatment preparation

Make sure whether the clients’ skin is keloid skin, and learn whether they have purified their eyebrows, pigment with other means.

Explain to clientele that after riding of pigment still having pigment trace left which previously caused by sunburn.

Let clientele know that even after riding of the black and blue pigments still having brown and red left for the presence of composite painting material.

Better shave the client’s eyebrow for easy operating before the treatment.

Technical parameter

Dimensions	920× 555 ×1065mm not including joints arm
Weight	100kg
Wastage power	800VA
Fuse	220V, 10A
Output mode	Q-switch Pulsed output
Wavelength	1064nm, 532nm
Pulse Duration	10±3ns
Frequency	1Hz, 2Hz,5Hz
Single Pulse energy	250mJ-1500mj
Safety distance	NOHD 1km. Operator must wear goggles
Cooling system	Water cooled
Work mode	Continually work with intervals
Spot Size	Continually adjustable

of operatin

Advantage

Components of the Unit Description

LCD screen :Show the work status and adjustable specifications.

Handrail :Protect the main body and move the machine in short distance.

Key switch :Turn on or turn off the system.

Emergency shut-off Knob:Turn off the system on emergency.

Joints arm:Transfer the light to the target area.

Transformer

Power supply socket :Connect with the power supply line plug.

Pedal switch socket :Connect with the pedal switch.

Foot Pedal: Control the output of laser emittance.

Environment requirement of installation and operation

The room should be clean and no dirty

Air conditioner, Voltage transformer and dust collector is necessary.

Transportation of the Device

The power supply, laser generator and joints arm should be paced separately with original shock proof package supplied by the manufacturer.

Installation is only allowed on place by professional technician.

Installation of the system

Installation is only allowed on place by professional technician.

After installation finished, The technician must adjust and calibrate the display error, the exactness of the cursor, the diameter of the spot size, the single pulse energy and power supply

Pictures of before and after

Packaging & Shipping

Packaging Detail: aluminium box for cryolipolysis slimming machine

Delivery Detail:3-5working days for cryolipolysis slimming machine

we are near to the airport.

Our Services

3 years warranty for the mainframe without charges for components change or repairing. Lifetime maintenance without any charge
Free training for operation of the equipment in our company, which provided by our specialized training department.
On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the laser equipment, and after-sale maintenance and more.
OEM/ODM services are available. We have our own developing and design department and manufacturing line, which ensure your required beauty equipment
