Guangzhou Factory galfan and PVC coated steel wire stone gabion box for water and flood to control

Welded Gabion is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.

Specification:

1) Material: Low carbon steel; galvanized steel

2) Gabion basket Length: 1m; 2m; 3m; 4m or as your request.

3) Wire diameter: 4.0mm--6.0mm

4) Spiral wire diameter: 4.5mm--6.5mm

5) Surface treatment:

a. Hot dipped galvanized: galvanized steel wire tensile strength 350-550 mpa/mm2 , zinc contect max up to 350g/m2

b. Galfan coating (Zn-5%Al-MM or Zn-10%Al-MM): steel wire tensile strength 350--550 mpa/mm2 , corrosion resistance is 3 times of galvanized.

c. Hot dipped galvanzied+PVC coated

d. Galfan coating+PVC coated

6)ASTM standard: ASTM A 856; ASTM A 641

Features:

1. Blends easily and harmoniously with the natural surroundings.

2. Low cost alternative to concrete or masonry structures.

3. Very high resistance to natural forces due to better tensile strength.

4. Can withstand any unpredictable movement or settlement without loss of stability.

5. Simple and speedy installation, making it cost effective.

6. Quality finish and appearance is more aesthetically pleasing.

7. More rigid than woven mesh resulting in a more uniform finish when built.

8. Quicker and cheaper to install than Woven Mesh gabions because no pre-stretching required.

9. Special gabions sizes and mesh such as gabions with 4mm front mesh and 3mm mesh else can be available.

10. Easy to vegetate.

Applications:

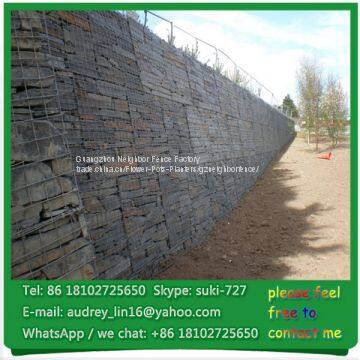

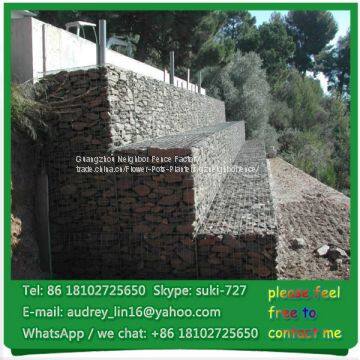

1.Landscaping, as retaining walls, landscape urban landscape and parks.

2.Or high salt pollution in the environment, Gore can be used where welded wire mesh technology.

3.Within the welded wire mesh filled with stone or natural cobblestone highway together protection, slope, roadway, bridge and so on.

4.Welded wire mesh is widely used in earth or soil reinforcement such as desertification, slope protection, river, coastal protection, reservoirs, canals and pipelines renovation, Rock failure protection, bridge protection, protective net.
