Promotion!!CE approved Portable Ultrasound Scanner with 3.5Mhz multi-frequency convex probe RUS-9000A

Applicable fields

• Suitable for the diagnosis of Abdomen, Cardiac, Gynecology, Obstetrics, Thyroid Gland, Small Organs, Urology and so on.
• Widely used for clinical examination and diagnosis. They are the ideal equipments to meet the needs of various kinds of hospitals and clinics.

Leading Digital Technologies

• DBF: Digital Beam Forming
• RDA: Real-time dynamic aperture imaging
• DRA: Dynamic real-time acoustic apodizer
• DRF: Dynamic receiving focus
• DFS: Dynamic frequency scanning, frequency range: 2.0-12.0MHz, 4 kinds of scaning frequencies

Advantages:

• Embedded PC platform is adopted in the ultrasonic master system
• THI
• DFC Dynamic frequency scanning
• Histogram, Sectionl drawing, Puncture guide
• Save hundreds of thousands of images and cine loop permanently
• Dynamic real-time PIP local zoom functions
• Double connectors
• Double USB ports
• Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve
• Auto-create report systems of Gyn., small organs, cardiac, urology and other sections
• Compatible of jet printer, laser printer, video printer and video recorder

Image Processing:

• Display mode: B, 2B, 4B, B/M, M
• Image precess technologies: controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation
• Dynamic Range: 100Db, 4 steps of switches
• Image magnification, stepless magnification, dynamic real-time PIP local zoom functions
• Cine loop: 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode
• Image management system: the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.

Software Functions:

• Measurement and calculation: measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.
• Assist tools: puncture guide, histogram, sectional drawing
• Menu manage interface, real time online support and navigation clew system, image fore-set and one-key optimization functions
• Auto-measure software of OB., Gyn., small organs, cardiac, urology and others:

OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, FI, LIMP, BBT, FBP

Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine

Small organs: thyroid gland, hip joint

Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP,  CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV

Urology: remained urine sample, prostate, PSAD

• Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
• Patient cases database systems. All the data could be saved, searched and managed
• Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve
• Auto-create report systems of Gyn., small organs, cardiac, urology and other sections

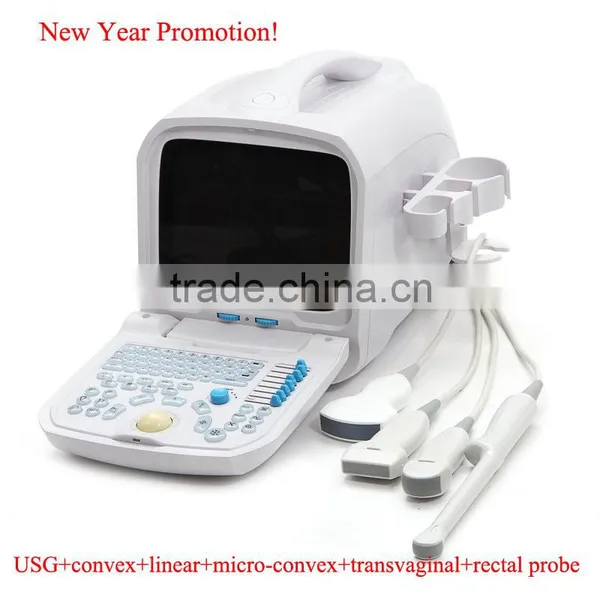

Standard Configuration:

• Main unit
• 10.4 inches SVGA high resolution non-interlaced monitor
• 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode

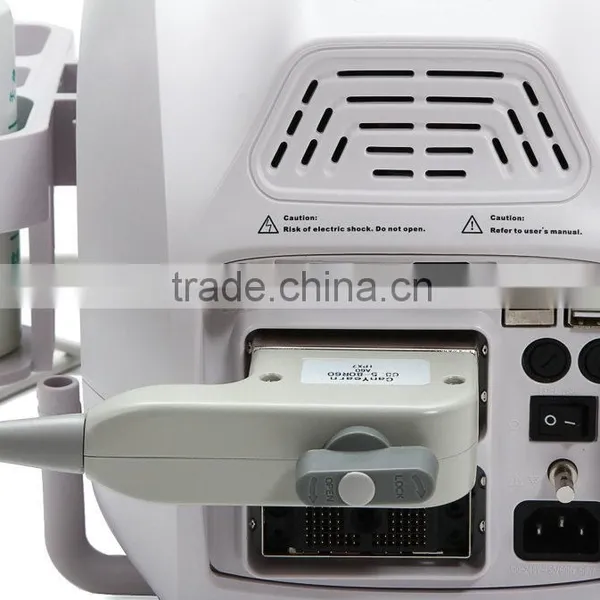

• Two probe connectors
• Two USB ports
• 3.5MHz R60/R50 electronic convex transducer(2.0/5.0MHz, 96 elements)

Optional:

• 7.5MHz L40 linear probe (5.0/10.0MHz, multi-frequency)
• 6.5MHz R10/R13 trans-vaginal probe (5.0/8.0MHz, multi-frequency)
• 3.5MHz R20 cardiac probe (2.0/5.0MHz, multi-frequency)
• Trolley
• Jet printer, Laser printer, Video printer and video recorder

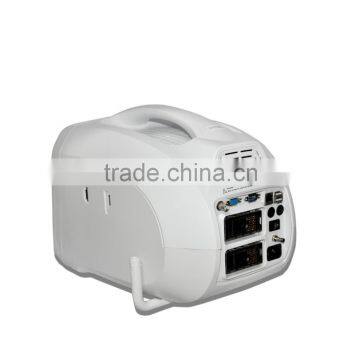

Relative extended ports:

• VGA, S-Video, TV video port
• USB2.0 port, 2G saving card
• RJ-45 network port
• Multiple kinds of saving modes are all supported, containing soft disk, hard disk, falsh disk, CF card, SD card and others.
• Compatible of jet printer, laser printer, video printer and video recorder
