SBR Iron Drum Rice Mill Rubber Roller for Rice Milling Machinery, Rice Hulling Rubber Rollers

SBR Iron Drum Rice Mill Rubber Roller for Rice Milling Machinery, Rice Hulling Rubber Rollers photo-1
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan Shanghai
Delivery Detail:
Delivery time depends on order quantity.





iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers





Product Description

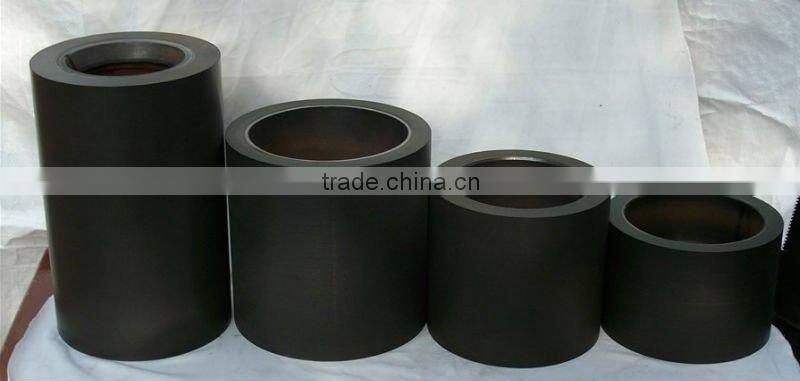

SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers



White color for SBR and NBR

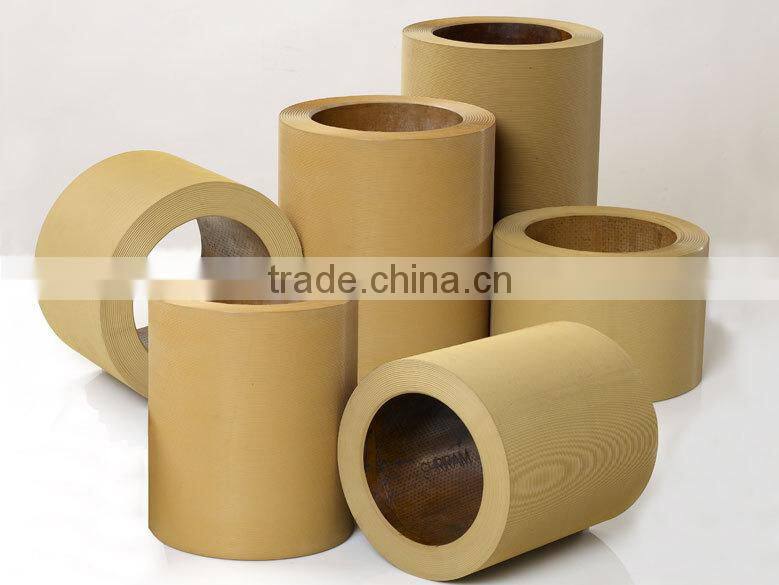

Amber color for SBR
SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers



Brown color for SBR



SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers





Amber color for EPDM+

SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers



Green color for EPDM+

 SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers



Red color for EPDM

SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers



Black color for NBR

SBR iron drum rice mill rubber roller for rice milling machinery, rice hulling rubber rollers





Secification

Type

Inch

External diameter

Length

Thickness of rubber

Wheel Type

4”

222 mm

100 mm

19.5 mm

6”

222 mm

152 mm

 19.5 mm

8”

225 mm

200 mm

 25 mm

10”

255 mm

254 mm

 24.5mm

Casing Type

14”

227 mm

355 mm

 29.5 mm

18”

232 mm

457 mm

 30.5 mm

20”

258 mm

508 mm

 30.5 mm



25”

255 mm

635mm

30.5mm



28”

255mm

710mm

30.5mm

Color

White & Brown & grey

Hardness Shore A

95±3°

Tensile Strength

≥21.0(Mpa) [Superior to international advanced level]

Elongation Rate

≥250%     [Superior to international advanced level]

Brand

Hong QI Bridge, Tiger & Lion, JinBao…







Rubber Roller Character:

1,Hardness is 90 ~95 degrees;

2,Excellent in heat and abrasion resistance;

3,Offering very strong bonding between rubber and drum;

4,High shelling efficiency up to 95%;

5,The SBR and NBR rice huller rubber roller can be options.

6,Elastic stiffness, Strong plasticity under the high hardness, moderate grain force, high roughness,

   low cardamine.

7,Good wear resistance, long using period. trong temperature, no climate impact, not deformation,

   soft, anti-tear at high-speed.

8,Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color

   quality.





Attention:

Handle carefully during the transportation.
Store in dry place, away from Acid, Alkali, Salt, oil, and dirty, forbidden to put under sun for long time.
Take sands away from the paddy; keep paddy dry and cleaning when using the rollers.
Two rollers should be at the same lever, the space must be equal.
The paddy inputting should be keeping the balance.
keep the rate of the re-hulling under the limited
Don’t make the machine work for a long time, in case effect the hulling capacity.
The surrounding temperature is better under the 50°C.
Change the fast and slow roller at a certain time.

Dont make the machine work without any paddy for a long time,
