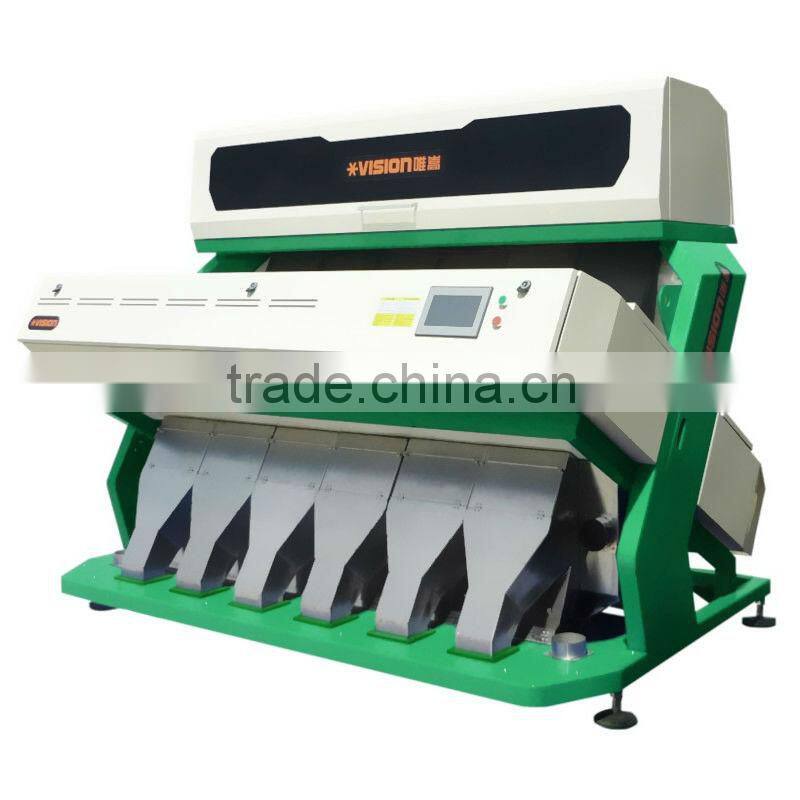

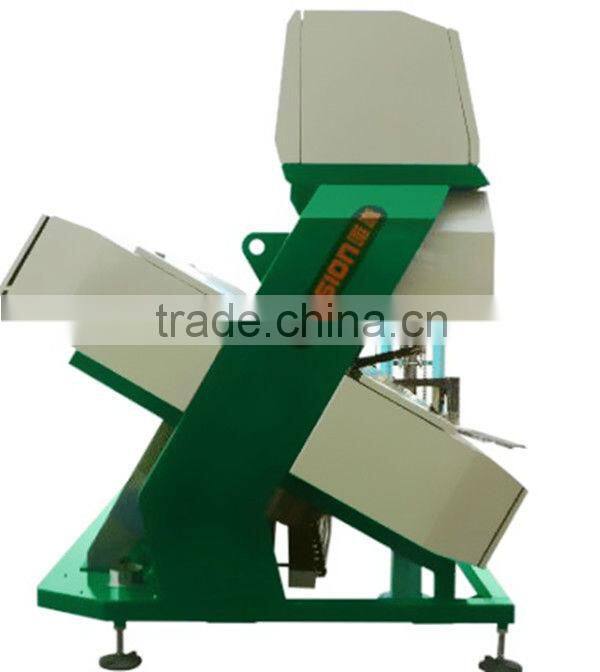

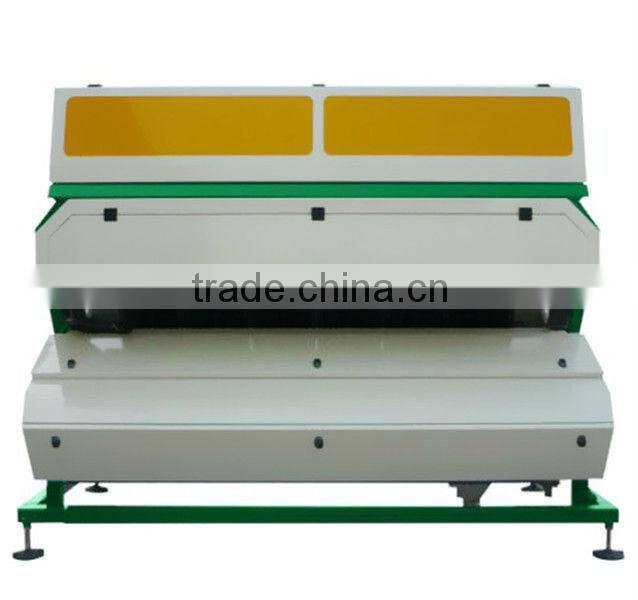

Waste plastics processing equipment ! Vision CCD Color Sorter machine ! Imported Japan NIKON camera, From anhui!

Name: Waste plastics processing equipment ! Vision CCD Color Sorter machine ! Imported Japan NIKON camera, From anhui!
Brand: VISION
Availability: InStock

FOB Price

USD $20,000 - $60,000 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port shanghai
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Type:	Industrial color sorter machine	Use:	Waste Plastics sorting	Certification:	CE,ISO9001
Place of Origin:	Anhui, China	Brand Name:	VISION	Model Number:	VSN3000-G6A
Condition:	New	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

1.Low waste and high throughput
2.Superb After-sale Service
3.Professional Technical Guidance
4.Passed ISO9001 Certification

1. The color sorter uses 2048 high performances CCD sensors with resolution up to 0.07mm²;
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of Waste Plastics ;
3. The high speed DSP technology provides the sorter with fast detection and high identification rate.

4. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision;
5. Overall unit adopts intelligent closed-loop control;
6. The operation interface adopts industrial grade 7-inch TFT contact screen and features simple parameters setting and easy operation;
7. High speed air valve is used to ensure quick response, low power consumption and long service life;
8. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine;
9. Failure alarm automation and modular construction makes easy repair;

10.Business Cooperation: Most of the machine parts are imported(Altera CO.,LTD FPGA,

Japan.Proface,CKD,SMC,Schneider).

Product Model/Technical parameter:

Model	VSN3000-G3A	VSN3000-G4A	VSN3000-G5A	VSN3000-G6A
Channels	192	256	320	384
Capacity (t/h)	2~5	3.5~7	4.5~8	5~10
Accuracy	>99.98%	>99.98%	>99.98%	>99.98%
Waste	<1:0.125	<1:0.125	<1:0.125	<1:0.125
Voltage(v)	~220V 50Hz	~220V 50Hz	~220V 50Hz	~220V 50Hz
Power(kw)	2.5	2.5	2.8	3.1
Pressure(M Pa)	≥0.6	≥0.6	≥0.6	≥0.6
Consumption(L/min)	1200~3000	1200~3000	1600~3500	1800~3800
Weight(kg)	900	1000	1200	1400
Dimension(L×W×H)	1425×1518×1880	1725×1518×1880	2025×1518×1880	2325×1518×1880
