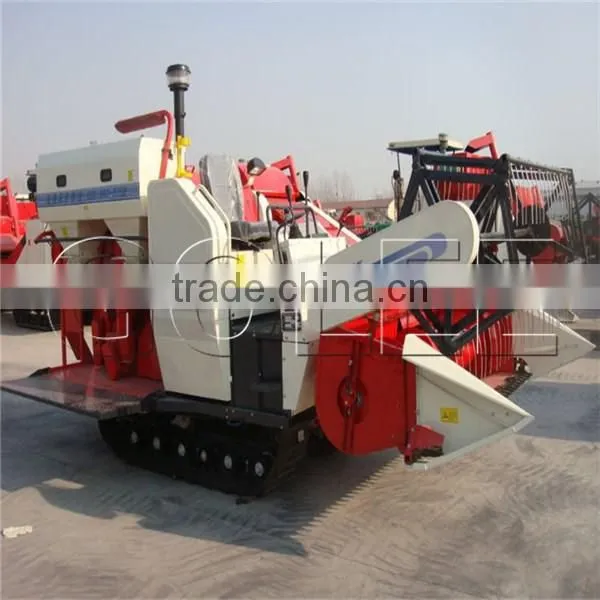

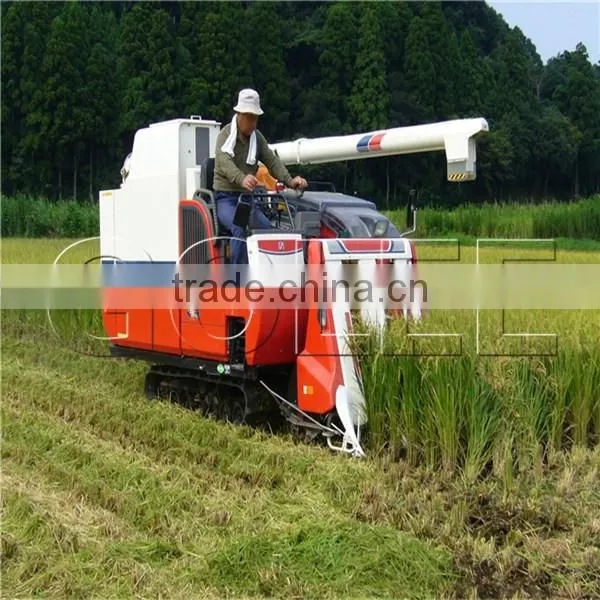

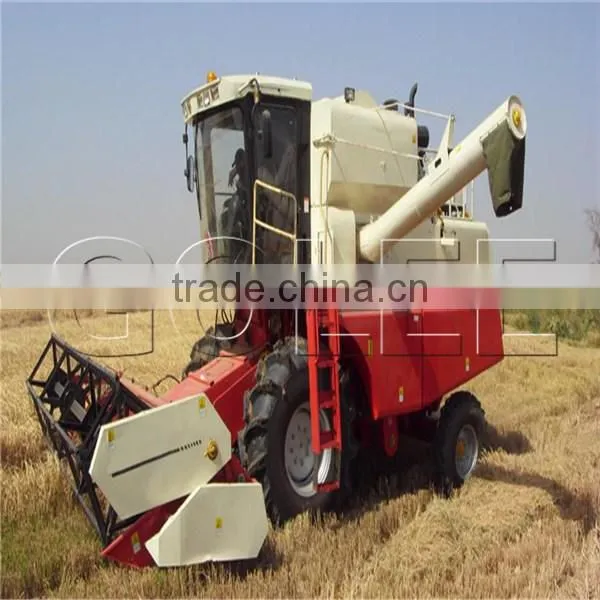

4LZ-3 rice and wheat harvester small combine harvester used
Features of rice harvester:
1) Longitudinal axle flow cylinder, able to reap wheat, rice, beans and corns with efficient threshing.
2) 4-shift speed regulation device and adaptive to harvesting various crops.
3) Intelligent warning system, able to supervise such key parts as rolling drum and fans.
4) Equipped with Yucai 6108/120 engine and featuring huge motor reserve.
5) Deep threaded tires, spreader, pickup, and headers available upon options.
6) Applicable to large-field harvesting.
7) Reinforced front axel, underframe, and main frame.
8) Movable concave clearance adjusting structure and manufacture process with patent.
9) With adjusting structure, increased overall reliability and easier control.
ltem Model | 4LZ-3 with big grain tank |
Engine Model | 4105 |
Rated power km/rpm | 55 |
Feed Rate (kg/s) | 3 |
Cutting width | 2.58m |
Working capacity | 0.3-0.6ha/h |
Fuel consumption | 8-10L/h |
engine horsepower | 70HP |
Weigh(kg) | 2650 |
Track | 350mm*90mm*46 |
Dimensions at work,LxWxH(mm) | 5240x2690x2675 |
Total losses(%) | Rice≤3.0 ,Wheat≤1.5 |
lmpurity rate(% | ≤2.0 |
Breakage rate(%) | ≤1.5 |
Reliability(%) | ≥93 |
Feed rate(kg/s) | 2.0 |
Ground pressure(kpa) | ≤24 |
Min.ground clearance(mm) | ≥200 |
grain Tank | 1m3 (storage 500-540kg rice) |
Cleaning type | Double sieves + blower + re-thresher |
Grain unloading method | Sacked & Auto unloading |

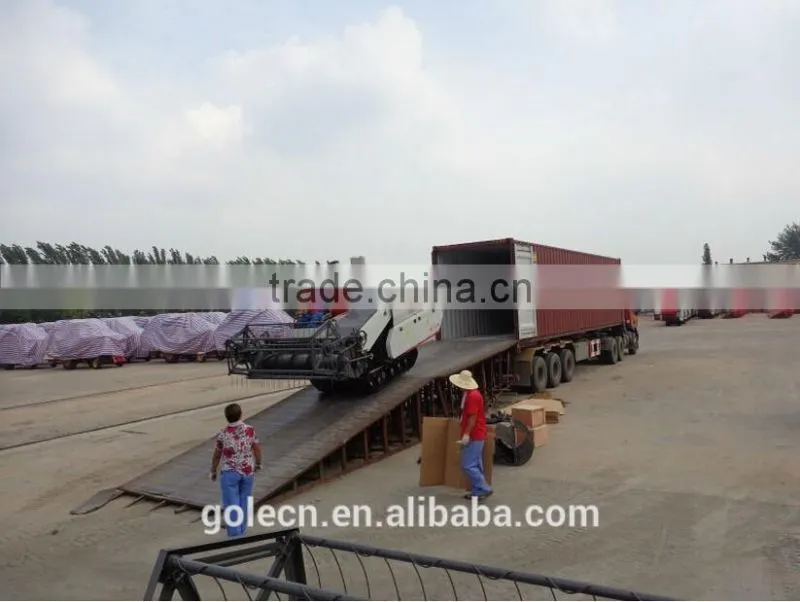

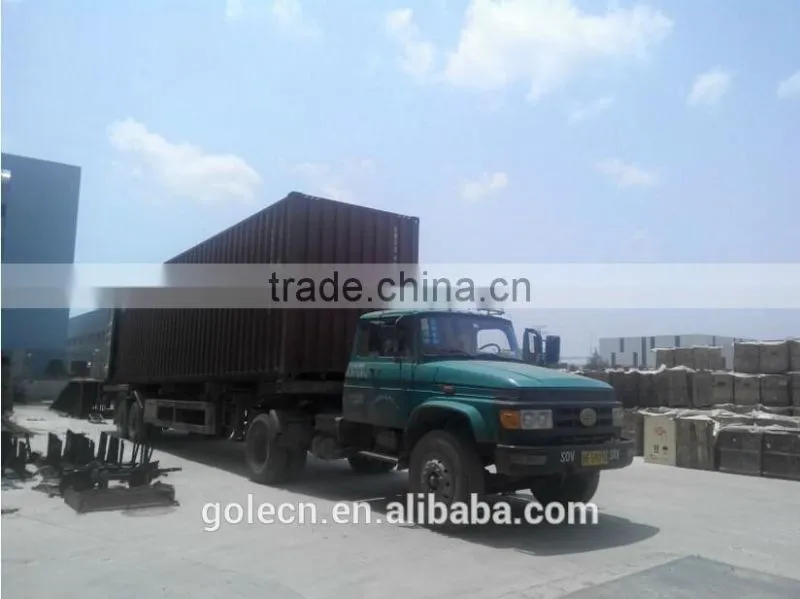

Shipment | 1set/20'FCL,3sets/40'HQ |
Model | 4LZ-2 | 4LZ-3 |
Engine Model | 495T(optional 4102) | 4105 |
Rated power, kW/rpm | 42/2600(48/2600) | 55 |
Feed rate(kg/s) | 2 | 3 |
Cutting width(m) | 2 | 2.58 |
Productivity (ha/h) | 0.2~0.3 | 0.3~0.6 |
Operational Dimensions (L×W×H) (mm) | 4900×2400×2800 | 5545×2975×2900 |
Total weight(kg) | 2700 | 3100 |
Min. ground clearance (mm) | 268 | 252 |
Ground pressure (kPa) | ≤24 | |
Threshing type | Axial flow | |
Re-threshing device and type | Self-threshing | |
Cleaning type | Drum sieves,vibration screen and blowing and suction fan | |
Gearbox | 6 speeds forward, 2 speeds backward | |
Track specification | 400×90×46 | 400×90×48 |
(width× pitch× No. of teeth) (mm) |
|
|
Driving speed(km/h) | Forward 0.90~9.88 Backward 0.74~2.66 | |
Grain unloading method | Manual,Automatic | |
Cab | Shadow shield (optional for cab) | |
Total losses(%) | Rice ≤3.5% Wheat ≤1.5% | |
Impurity rate(%) | Rice ≤2.0% Wheat ≤2.0% | |
Broken rate(%) | Rice ≤2.0% Wheat ≤2.0% | |
1.Professional pre&after service can be provided by us.
2.The technical support and engineers' after-sale overseas service can be provided by our factory.
3.The warranty could be 12 months.
