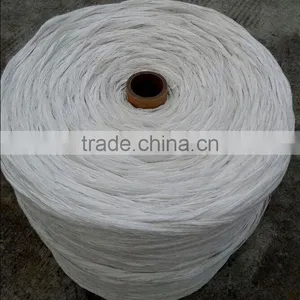

fibrillated pp yarn/polyester sewing threadcable wire recycled plastic string factory

Specifications

1.cable wire recycled plastic string factory ,pp+caco3
2.cable filling
3.cheap and good
4.1---20mm
5.Uniform diameter

 al-pet tape/pp foamed tape/pp filler cable material



1. 100% PP filler yarn







Linear Density	12000D	18000D	22000D	28000D	33000D	48000D	60000D	70000D	90000D
(weight)g/m	1.33+0.13 -0.13	2+0.2 -0.2	2.44+0.22 -0.22	3.11+0.31 -0.31	3.67+0.37 - 0.37	5.33+0.53 -0.53	6.67+0.67 -0.67	7.77+0.77 -0.77	10+1.0 -1.0
Diameter (mm)	1.5	2	2.3	2.5	2.7	3.2	3.8	4.5	5
Breaking Strength (kg) equal or more	24	36	44	56	66	96	120	140	180
(%) Breaking Elongation equal or more	10	10	10	10	10	10	10	10	10
Hot Shrinkage rate (%)	3	3	3	3	3	3	3	3	3





































































2.cheap cable pp filler  yarn with mixed caco3 :

      1-----5 PLY,2-----50MM,4-----8 TPM

    this kinds of pp cable filler yarn  price is the cheapest











Advantage: Cheap price, suitable for large cable.

Item
Linear Density	D	+/-10%	2------50mm Denier:20000D---800KD
Breaking Strength	g/D	0.2---0.6
Breaking Elongation	%	20
Hot Shrinkage rate	%	6	100°C*1min.
Tube size	mm	1 ID: 90, H:255        2. ID:38,H:220        3.   ID:50,H:270        4.   ID:75, H:440
Packing	6----50KG/ROLL







3. pp twist   wire cable pp filler  yarn,20---80TPM,1----8MM









4.FR  wire cable pp filler  , LOI >29













Our advantage:

A. The best price at good quality
B. Excellent service and prompt delivery
C. Effective and attractive packaging



wire cable pp filler yarn

100% pp , pp filler  Specificatioms
Item		Unit	standard	Remark
Fineness		D	specification±8%	3000D-300000D
Breaking		g/d	>2
tenacity
Tensibility		%	<20
shrinkage		%	<6	120*30min
in hot air
Appearance		Natural  Color   or   White,color
		obvious  stations







In a wide range of denier from 3000D to 300KD,Widely used in wire and cable.These are sold in shrink-wrapped coreless rolls,rolled on  paper cores and capable of working with continuing throughout their length.



pp+caco3 wire cable pp filler  Specificatioms
Item		Unit	standard	Remark
pp filler  Fineness		D	specification±8%	3000D-300000D
pp filler  Breaking		g/d	>0.3,>1g/d
tenacity
Tensibility		%	<20
shrinkage		%	<10	120*30min
in hot air
Appearance		Natural  Color   or   White,No
		obvious  stations





5.high tenacity polyester yarn and polyester thread





polyester sewing thread Spec.	sewing thread   weight (g/spool)	sewing thread  Length (Y/spool)
840D/3 (0#)	90	300----5000
630D/3 (5#)	90	380----80000
500D/3 (10#)	90	550---9000
250D/4 (20#)	90	800-----12000
250D/3 (30#)	90	1100---20000
250D/2 (40#)	90	1600----25000
150D/3 (60#)	90	1600------30000
120D/3 (80#)	90	2100-----300000





6. aramid yarn:200D,400D,1000D,1500D,3000D

   kelvar aramid yarn

aramid yarn is ahigh performance material,it comnines the characteristics of high strength and light weight. under the condition of equal weight,it is 5 times the strength of steel wire,2.5 times fiberglass.



                                ARAMID YARN  PROPERTY



aramid yarn Denier (D)	aramid yarn Break Strength (kg)	Klongation At Break (%)	aramid yarn Modulus (g/D)
1000	20	3.5	24.0
1500	32	3.8	24.0
400	9.5	3.3	24.0
20S/2	3	3.0	15.0





7. al-pet ,pp foamed tape











...
