12 dBi wifi antenna panel AMXP-2327-D12L120-hk wholesales from china supplier
wifi antenna panel
What is the Features of directional pannel antenna?
Features:
1.High gain |
2.Work around the clock |
3.Optimization of sizes |
4.Dual-polarized |
Application: |
1. 2.3/2.7 WLAN system |
2.Wireless communications and data transmission system |
3. WiFi System |
4. 2.3/2.7 ISM Frequency Band |
What is the Specifications of directional pannel antenna?
AMXP-2327-D12L120-hk Electric Specifications | |
Frequency rang(MHz) | 2300~2700 |
Polarization | Vertical |
Gain(dBi) | 12 |
Beamwidth(degree) | H:120 V:14 |
Front-to-back ratio(dB) | >=18 |
Input Impedance | 50 |
VSWR | <=1.5 |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Max power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Connector model | 2-N Female |
antenna size (mm) | 500*114*54 |
Packing size(mm) | 530*125*105 |
Antenna weight (kg) | 4 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(degree) | 0~10 |
Working Temperatu(degreec) | -40~60 |
Rated Wind Velocit(m/s) | 60 |
Pole diamete(mm) | 35~50 |
What is the Installation of directional pannel antenna?

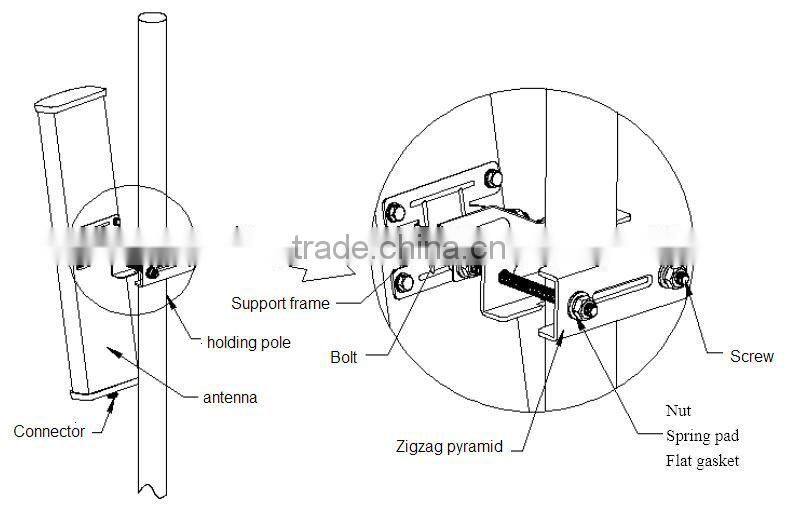

Installation setup
| 1. put antenna upper and lower end sawtooth clip yards shàng of nut, and play pad and the flat pad twist xià, scored outside of Sawtooth clip yards, will antenna has joints of end towards xià, with sawtooth clip yards hold outside diameter for 50~75mm of hold Rod shàng, again put scored of Sawtooth clip yards through M8 of screw rod, put shàng flat pad, and play pad, then twist tight nut. |
| 2. remove the connector cover of the antenna and connect the antennaconnector and the sealed connector end of the antenna. |
3. loosen the connection between the two mounting bolts, suitably adjust thetilt angle of the antenna, and allows it to receive the signal for the best,and then tighten all nuts. |
Testing report、VSWR curve
What is the pictures of directional pannel antenna?
|
|
|
|
|
Why the customer choose us ?
How to contact us?
Please use your mouse click on " send" bellow.We'll provide good service for you.
