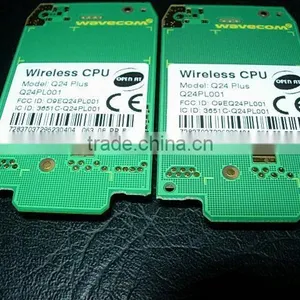

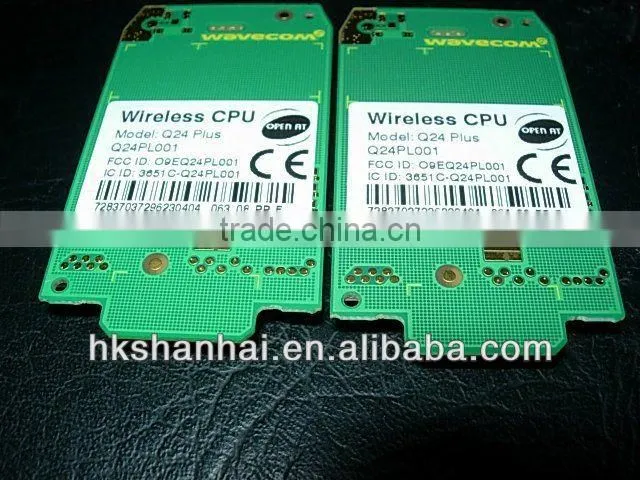

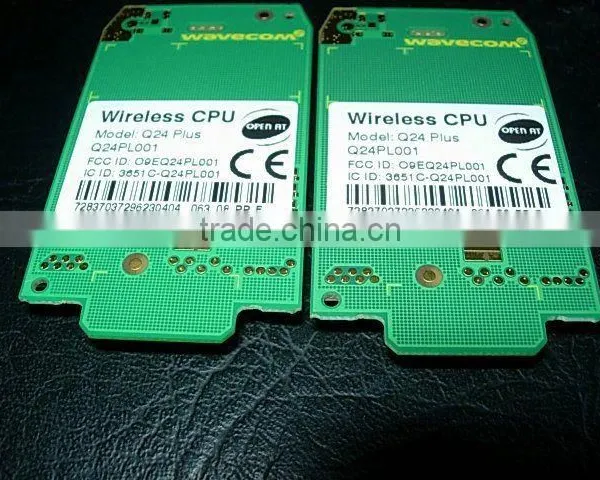

wavecom q24pl001
Negotiable
/ Parcel
1 Parcel(Min.Order)
- 3000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wavecom, Wavecom | |
| Model Number | Q24pl001/2/3, q24pl001/2/3 |
Product Description
Specifications
wavecom q24pl0011. Best price
2. Big in stock & fast delivery
3. Sensitive signal
wavecom q24pl001
wavecom q24pl001 q24pl002 P24P003
Q24PL001 Q24PL002 P24P003 Q2303A Q2403A Q2406A Q2406B Q24PLUS and more modem
wavecom wirless modules Q24Plus Q24PL001 Q24PL002 Q24PL003
wavecom wirless modules Q24Plus Q24PL001 Q24PL002 Q24PL003
Q24PL001 Quad-Band 800/900/1800/1900 MHz for true Global GSM & GPRS usage
Open AT Operating System allows for complete custome
Technology Frequency CPU IO Interface Interface Connector Power Supply RF Connector Audio RF Sensitivity Location Solution Dimensions Temperature Memory Operating System OPEN-AT Options OPEN-AT IDE Debug Tools ROHS Compliance carrier-approvals EMC Approvals
| GSM / GPRS class 10 |
| 900 / 1800 MHz & 850 / 1900 MHz |
| ARM7 32-bit 52MHz w/ cache memory |
| (1) RTOS interrupt (6/4/1) GPIO / GPO / GPI (4) Analog Audio (1) ADC (1) SPI (1) I2C (2) RS232 (1) Led Driver (1) Buzzer Driver (PWM) 5x5 - Keyboard 1.8V / 3.3 V SIM / RUIM |
| 60-pin board-to-board connector |
| 3.6 VDC (nom) 5uA/3mA/1.8A (min/idle/max) |
| U.FL / IMP / Solder Pad |
| Codecs: FR/EFR/AMR, Quality: VDA2C (with AEC/NR) |
| '-110 dBm @ 900 MHz |
| external NEMA supported |
| 58 x 32 x 3.9mm |
| Class A: -20°C to +55°C |
| Flash: 1.5MB / RAM 128kB |
| Open AT / 13 MIPS / |
| TCP/IP Internet + Email (POP3/SMTP) + File Transfer (FTP) Open SIM Access Bluetooth IBM MQ-TT Orange SIM Access |
| Remote Task Env Step-by-step execution Break Points Traces Application Examples |
| Compliant with RoHS Directive (2002/95/EC) |
| See |
| Entire GSM products are approved to R&TTE, GCF-CC (900/1800 MHz), PTCRB (850/1900MHz), FCC (USA) - CE (EMC & Safety |
....
