factory price!tube bending machine manual
- 3500 Set / Sets per Month
- shanghai or qingdao
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | NMB |
Model Number: | NMB75NC AS0841 | Machine Type: | Pipe and Tube Bending Machine | Raw Material: | Pipe |
Material / Metal Processed: | Stainless Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | End Forming | Certification: | Other, CE,ISO9001:2008 | After-sales Service Provided: | Overseas service center available |
Packaging Details
wooden case or iron frame suitable for transporatation
Product Description
Tube bending machine manual:
tube bending machine manual Bending Machines Processing type: pipe bender dies
Features of our machine:

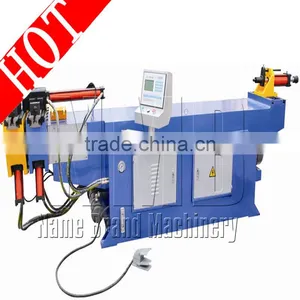

NMB75NC high performance single-head hydraulic pipe bending machine, NC control, multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, furniture and other metal pipes processing.
price manual bar bending machine Bending Machines opration type: NC
Technical parameter of our machine:
Technical parameter | NMB38 | NMB50 | NMB63 | NMB75 | NMB80 | NMB100 | NMB114 | NMB133 |
mm Biggest elbow picec ability | φ38×2 | φ50×2 | φ63×2 | φ75×2 | φ80×2 | φ100×3 | φ114×6 | φ133×6 |
mm Most greatly bevelling radius | 200 | 250 | 300 | 400 | 400 | 400 | 750 | 750 |
mm Smallest bevelling radius | 1.5D | 1.5D | 1.5D | 1.5D | 2D | 2D | 2D | 2D |
Most greatly curving angle | 190° | 190° | 190° | 190° | 190° | 190° | 190° | 190° |
/sec Curving speed | 55° | 40° | 25° | 25° | 25° | 25° | 25° | 25° |
Mpa System most tremendous pressure | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
L/min Oil pump displacement | 17 | 19 | 21 | 28 | 28 | 28 | 40 | 45 |
kw Electrical machinery power | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 15 | 22 |
kg Mechanical and electrical weight | 800 | 1300 | 1600 | 2800 | 3000 | 3500 | 5000 | 6000 |
cm3 Mechanical and electrical volume | 260×65×125 | 295×80×125 | 315×80×125 | 395×96×125 | 380×82×130 | 426×96×130 | 450×150×150 | 500×160×150 |
Different shape of final products for your reference:
rule tube bending machine Bending Machines Application area: automobiles, furniture, exhaust pipe
tube bending machine manual Bending Machines colour: blue
price manual bar bending machine Bending Machines
Our company other pipe benders pictures:
rule tube bending machine Bending Machines
Things need to be noted:
1. We design and manufacture the tooling according to the tube's specification, so the customers should send us the following tube's specification details: Tube's material and Outside Diameter, Wall Thickness, Bending Radius. THIS IS VERY IMPORTANT!
2. The Min./Max. bending radius could be made to order according the customer's special requirement.
3. The length over mandrel could be made to order according the customer's special requirement.
About our service:
If you are interested with our products, please contact us freely. We have a perfect after-sales service system, and also a professional team. So please be assured to buy our products!
Machine matched with pipe bender machine:
tube bending machine manual Bending Machines
Company Profile
Henan Name Brand Machinery Co.,Ltd are leading professional enterprise in China, we have our own specialized design, factory, research, marketing and after-sale teams. Our company machine can meet the international high quality standard, our machine are the newest generation base on the same industry .and most of our machine are the newest design, and can bring huge benefits for our end users.
Henan Name Brand Machinery Co.,Ltd products
1, Food machines such as oil press, oil refinery, and different seeds complete line. Also with some other food machine such as potato machine, different plant seeder and Harvester, different nuts shelling machine, grain machines, donut machine, animal feed machine, fishmeal machine ,and vegetable and grain dryer machine, Etc related machines
2, Energy reuse and waste recycle machines such as Carbonization furnace machine, pellet machine, briquette machine, coal ball machine, charcoal machine, Copper wire recycle machine, crusher and some other matched dryer machines, Etc in China.
3, Industry heavy machine like crane
Our machinery has many years of production history, and our products have been exported to clients from different more than 100 countries all over the world such as UK,USA,Italy,Mexico,Morocco,Benin,Indonesia,Malaysia,Pakistan,Vietnam,Korea,Canada,Tanzania,Egypt,Germany,Etc.We have won a good reputation among customers for good quality, competitive prices and advanced techniques.
Our tenet is "taking the quality as life, taking the customers as god, and winning the credit standing and market by advanced manufacturing techniques, the best quality and services". We are looking forward to establishing business relationships with you in the near future.
