Fashion design Apparel Machinery automatic ultrasonic hot diamond machine

Plastic film covered and carefully loaded into wooden case

Specifications

automatic ultrasonic hot diamond machine
1.Can continuously work 24h
2.Infrared positioning
3.Fast speed
4.Ultrasonic heatin

Fashion design Apparel Machinery automatic ultrasonic hot diamond machine



Application of automatic ultrasonic hot diamond machine

Applies to women's apparel, sweaters, underwear, children's clothing, shoes,

hats, gloves, scarves and other products.



Main features of automatic ultrasonic hot diamond machine



1.It adopts ultrasound to immediately hot fix the rhinestone in purpose materials.

(Denim,Cotton,Jeans,Hemp fabric,Woolen,Synthetic Fiber,Silk,Knitwear,Synthetic Leather,Velvet)

2.The main components adopts imported electrical components,it is reliable

 quality.

3. Infrared positioning,  precisely hot fix the rhinestone's position and very

 strong sticking effect.

4.Can continuously work 24-hour, high efficiency production.

5.Fast working speed,labor saving.

6.Best choice for the products can not resist high temperature and easy to

deformation and discoloration .



Working Principle of automatic ultrasonic hot diamond machine



The machine works by using ultrasonic waves characteristics to instantly hot fix

 the rhinestone on the materials.It is labor saving.Our machine is capable of

 reaching the dozens of people working efficiency.

It is the best alternative for conventional hot fix rhinestone machines.





Technical parameter of automatic ultrasonic hot diamond machine



Model	AZSDZ02-A	AZSDZ02-B	AZSDZ02-C
Voltage	220V(50/60Hz)	220V(50/60Hz)	220V/50Hz
Power	200W	200W	200W
Output Frequency	27KHz	27KHz	27KHz
Air supply	5~6kg/cm2	5~6kg/cm2	5~6kg/cm2
Working Speed	180-220pcs/min	180-220pcs/min	180-220pcs/min
Rhinestone size	2mm~7mm	2mm~7mm	2mm~7mm
Welding head	1 pcs	1 pcs	2 pcs
Disc	Single disc	Double Disks	Double Disks
Working table size	950*500mm	950*500mm	950*500mm
Dimension(L*W*H)	730*650*1040mm	800*860*1030mm	850*850*1000mm
Machine weight	65kg	75kg	95kg

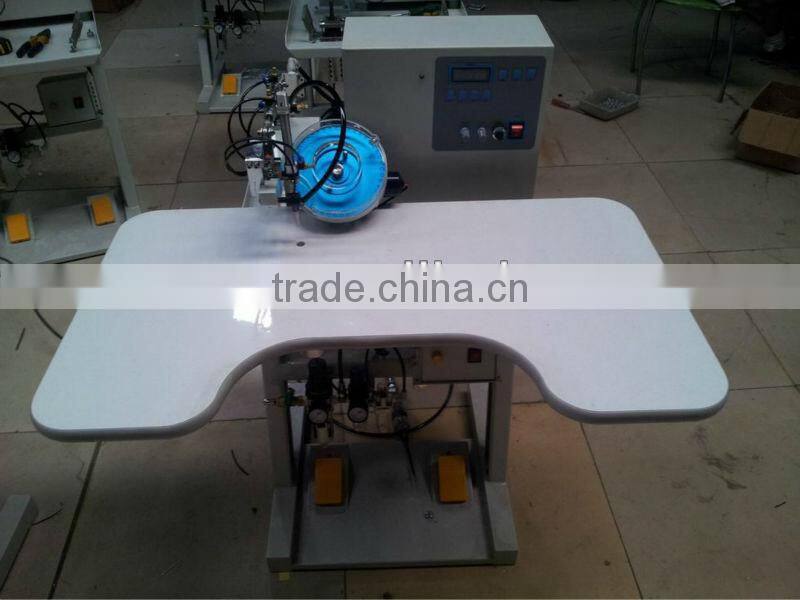

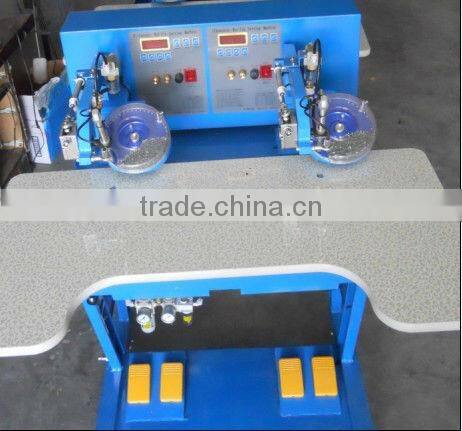

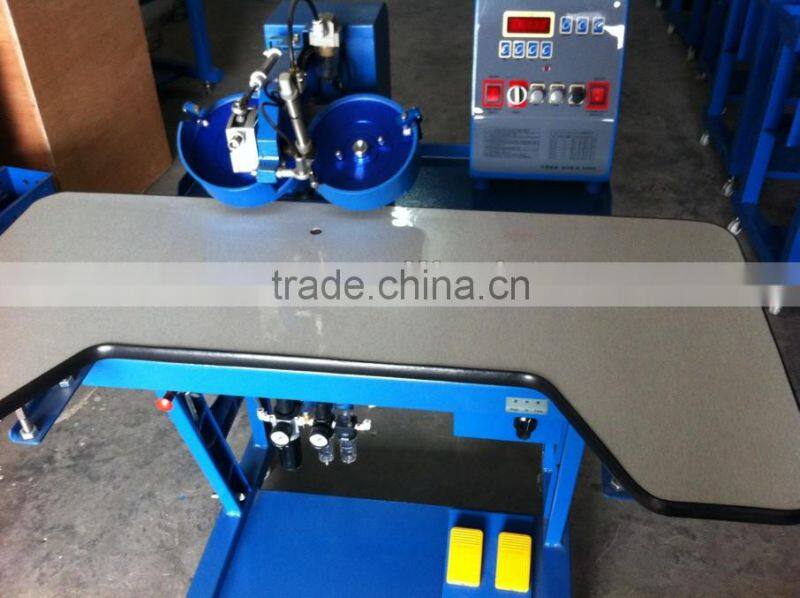

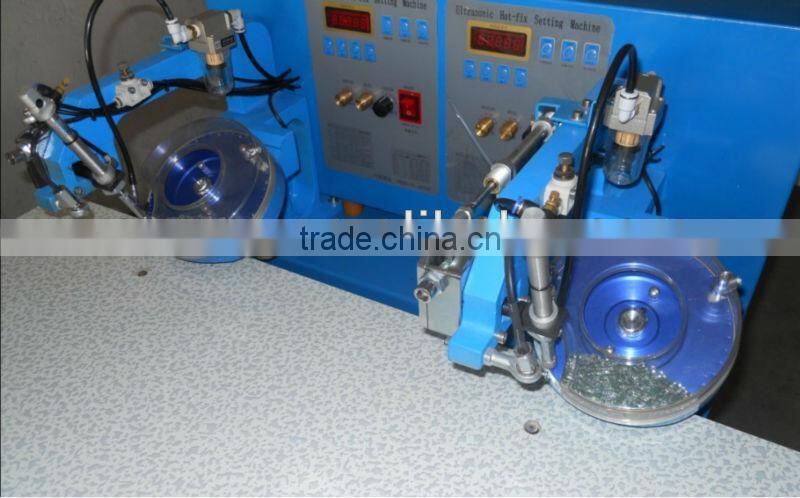

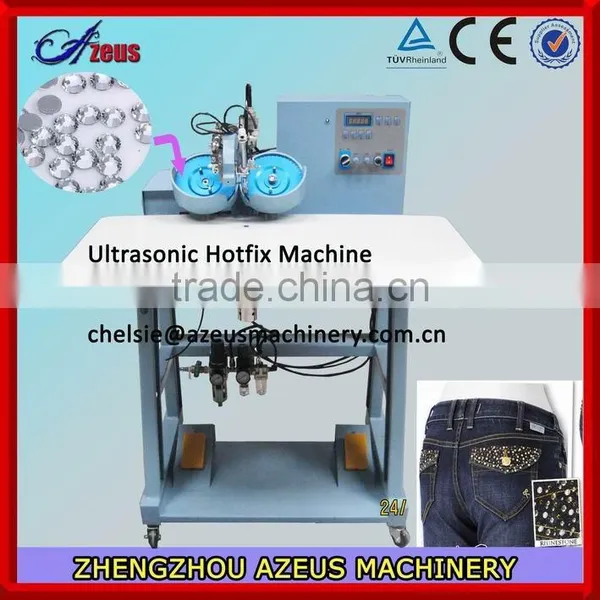

More photos for automatic ultrasonic hot diamond machine







More options for rhinestone machine



(Click the below pictures to learn more about it)

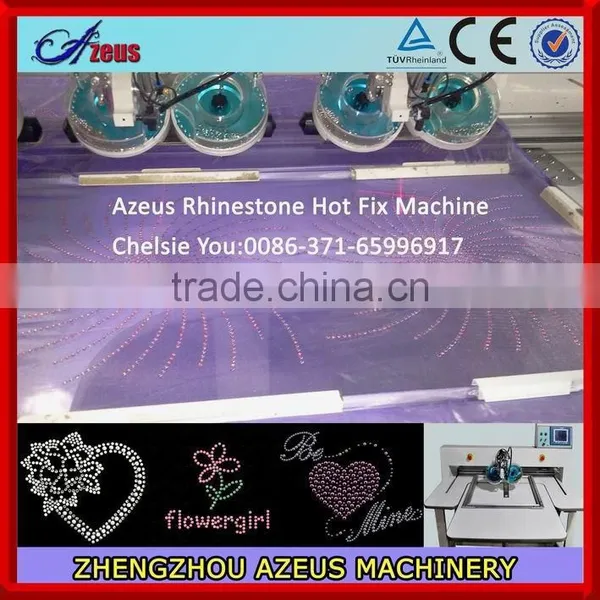

   Hand operating (Favorable price)                Fully automatic(Computer control , can hot fix motif)



Working effect of rhinestone machine





         Before (A little dull?)                   After (So amazing!)











Welcome you contact me any time :)
